The Titan Series are powerful, accurate, high quality loudspeaker systems with low distortion that are designed to deliver oustanding performance at a cost effective price point. An Elliptical Wave Guide (EWG) is perfectly matched to the custom designed HF drivers and provides smooth dispersion in both the horizontal and vertical planes.

The road tough, gas-assist injection moulded polypropylene enclosures are ultra lightweight and include rubberised handles and cable management to make Titan the most user-friendly portable speaker on the market. Threaded rigging points mean that Titan is equally suited to flown applications; a comprehensive range of Wharfedale Pro wall mounting options are also available as optional extras.

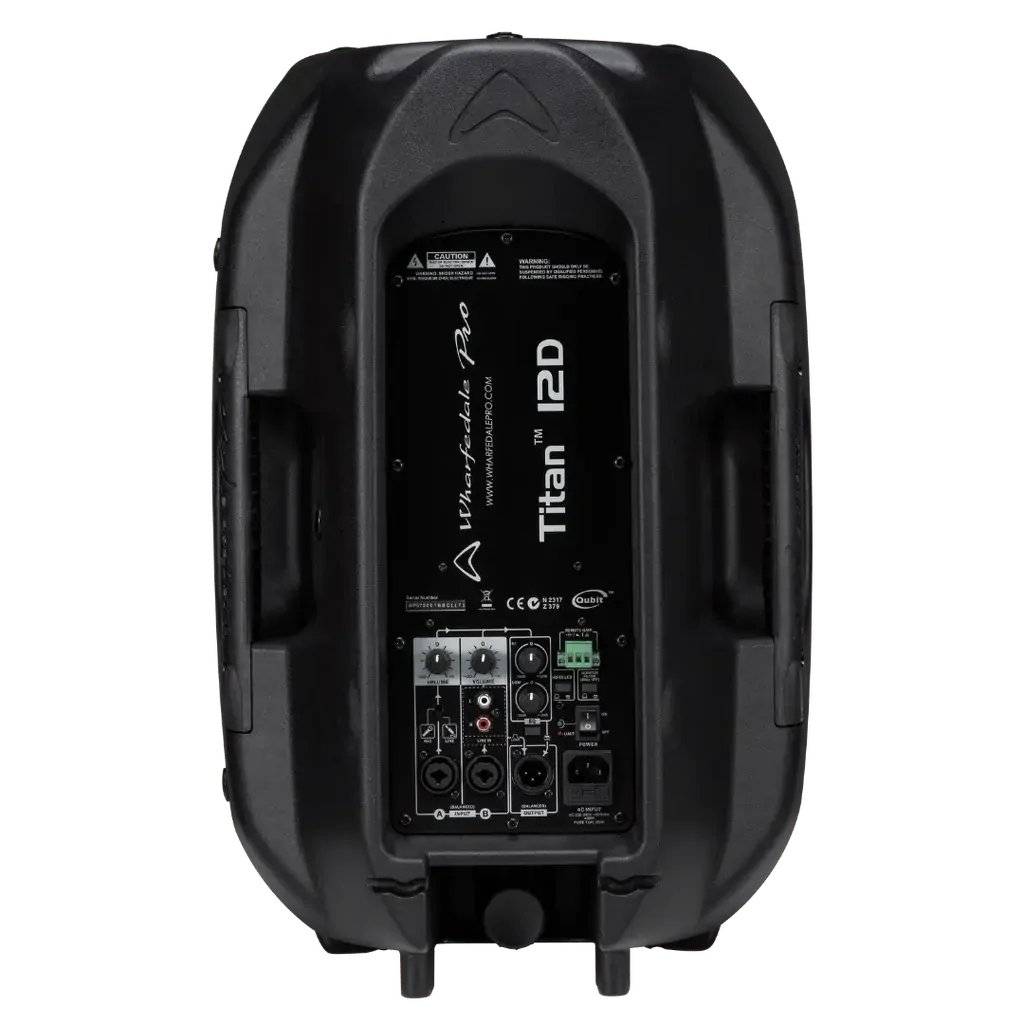

Active models feature rear panel power LED’s and a throat mounted LED to make you aware of AC power supply from both the front and rear of the unit. Active models also feature a horn LED defeat switch for less obtrusive aesthetics in applications such as conferencing and A/V presentations. The BRO™ (Bass Response Optimizer) circuit on the 12D and 15D models helps counteract loss of bass at low levels, similar to a loudness switch on home HiFi amplifiers. In addition our "D" models feature Qubit™ 24-bit 192kHz DSP Processing.

(TITAN-12D-R)

Active or Passive Active
System Type Full-Range
Configuration 2-way
System Continuous Power 300 W
System Peak Power 600 W
Freq Response (+/-3 dB) 55 Hz - 20 kHz
Bi-amp Mode Switch No
Bluetooth No
IP Certification None
Driver Brand Wharfedale Pro
LF Driver Size 12"
HF Driver Type Compression Driver
HF Diaphragm Material Titanium
HF Exit Size 1"
Preset Library No
Input Connector Combo Jack: 1/4" - XLR Summed Dual RCA Jacks
Waveguide Type Elliptical
Enclosure Material Polypropylene
Grille Material and Finish Steel Black
Finish Black Polypropylene
Handles 2
Deployment Flying, Ground, Pole, Wall Mount
Pole Mount 35 mm
Brackets Included No
Rigging Yes
M8 10
Nominal Coverage (H x V) 90° x 60°
System Rated Impedance n/a
Crossover Frequency 2.3 kHz
Transformer (T) No
Amplifier design Class D
Link Connector pin XLR
Input sensitivity XLR - 1/4” Combo jack: 0dBu (-2.2dBv or 0.775Vrms) / RCA: 0dBu (-2.2dBv or 0.775Vrms)
Max input level +22 dBu
Line output Switchable LOOP/MIX Balanced socket XLR
Main Power AC100-120 V~/220-240 V~,50/60 Hz
Power Supply High Efficiency Switching Mode Power Supply
Unpacked - Depth (mm) 312
Packed - Height (mm) 408
Packed - Width Front (mm) 435
Packed - Width Rear (mm) 435
Packed - Depth (mm) 663
Weight - Nett (kg) 12.44
Weight - Gross (kg) 15.78
SKU TITAN-12D-R
Barcode # 634607200619
Brand Wharfedale
Brand Wharfedale
Type PA Speaker
Model TITAN-12D
Shipping Cubic 0.099220000m3
