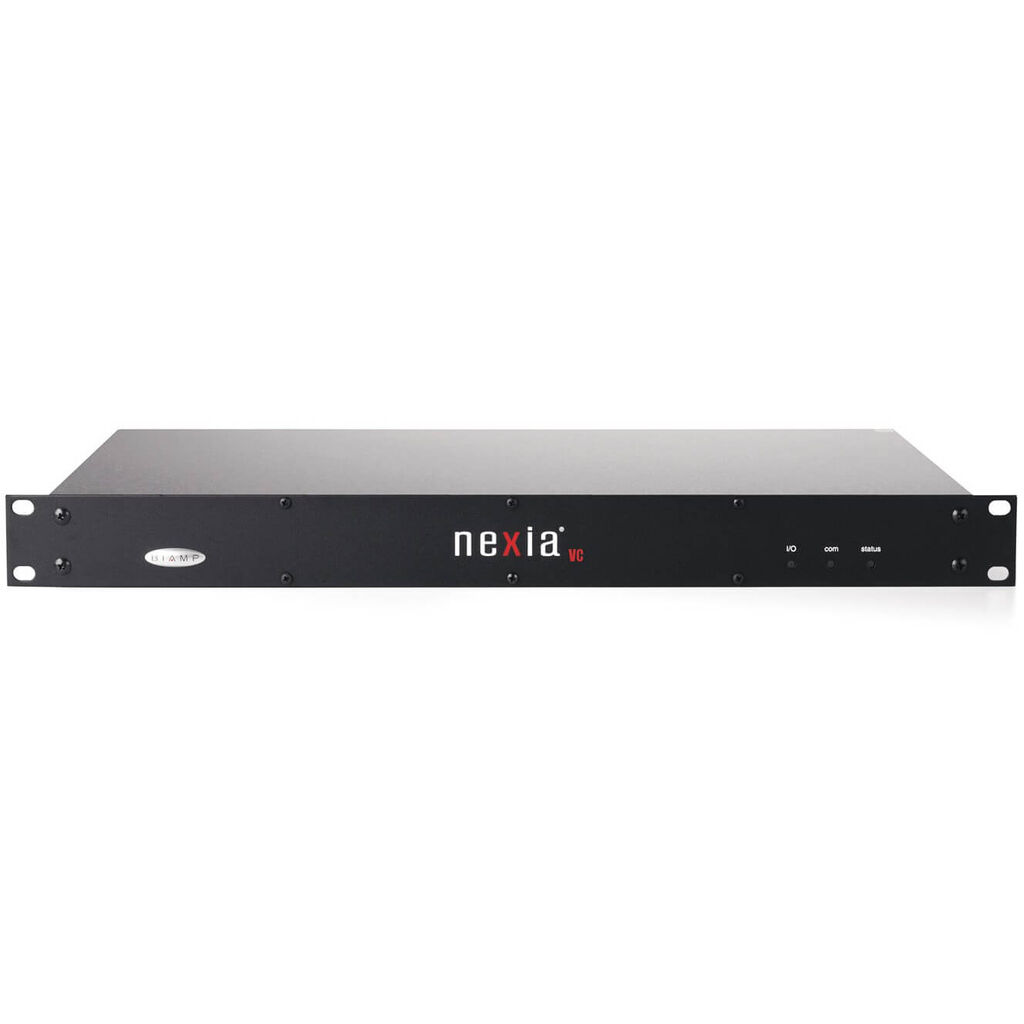

Nexia VC is a digital signal processor with 8 wide-band AEC mic/line inputs, 2 standard mic/line inputs, 4 mic/line outputs, and a codec interface. Intended for a variety of videoconferencing applications, Nexia VC uses Biamp’s Sona™ AEC technology for more natural sound and full-duplex transmission of speech. Nexia VC includes a broad selection of audio components, routing options, and signal processing. The internal system design is completely user definable via PC software, and can be controlled via daVinci™ software screens, RS-232 control systems, and a variety of optional remote controls. Multi-unit Nexia systems can be created utilizing Ethernet and NexLink digital audio linking.

FEATURES

  • 8 wide-band AEC balanced mic/line inputs
  • 2 standard balanced mic/line inputs
  • 4 balanced mic/line outputs
  • Codec interface with balanced line input & output
  • Ethernet port for software configuration/control
  • Serial port for third-party RS-232 remote control
  • NexLink ports for multi-unit system designs
  • Nexia software for Windows®
  • Pre-configured I/O with definable processing
  • CE marked, UL listed and RoHS compliant
  • Ability to select, view, and calibrate:
    • Mixers: standard, automatic, matrix, combiners
    • Equalizers: graphic parametric, feedback
    • Filters: HPF, LPF, high shelf, low shelf, all-pass
    • Crossovers: 2-Way, 3-Way and 4-Way
    • Dynamics: leveler, comp/limiter, ducker, ANC
    • Routers: 2x1 ~ 32x32
    • Delays: 0 ~ 2000ms
    • Controls: levels, presets, logic, RS-232, etc.
    • Meters: signal present, peak, RMS
    • Generators: tone, pink-noise, white-noise
    • Diagnostics: transfer function

(BiampNexiaVC-R)

Frequency Response (20 Hz~20k Hz @ +4 dBu) +0/-0.4dB
THD +N (20 Hz~20k Hz @ +4 dBu) Line level: < 0.006%
Mic level: < 0.05%
EIN (20Hz~20kHz, 66dB Gain, 150Ω) -125dBu
Dynamic Range (20 Hz~20k Hz, 0 dB) > 105 dB
Tail Length Up to 300ms
Convergence Up to 100dB/sec
Input Impedance (Balanced) Mic/Line Inputs: 8kΩ
Codec: 15kΩ
Maximum Input +24 dBu
Input Gain Range (Variable) Mic/Line Inputs: 0 - 66dB
Codec: 0 - 18dB
Output Impedance (Balanced) 200Ω
Maximum Output +24 dBu
Full Scale Output Level (Six Selections) -31dBu ~ +24dBu
Sampling Rate 48k Hz
A/D - D/A Converters 24-bit
Power Consumption 65W
Dimensions (H x W x D) 1.75" (45 mm) x 19" (483 mm) x 11.2" (283 mm)
Weight 8.6 lbs (3.9 kg)
SKU BiampNexiaVC-R
Barcode # 615678869530
Brand Biamp
Brand Biamp
Type Video Conferencing
Model Nexia VC
Shipping Cubic 0.007440000m3
