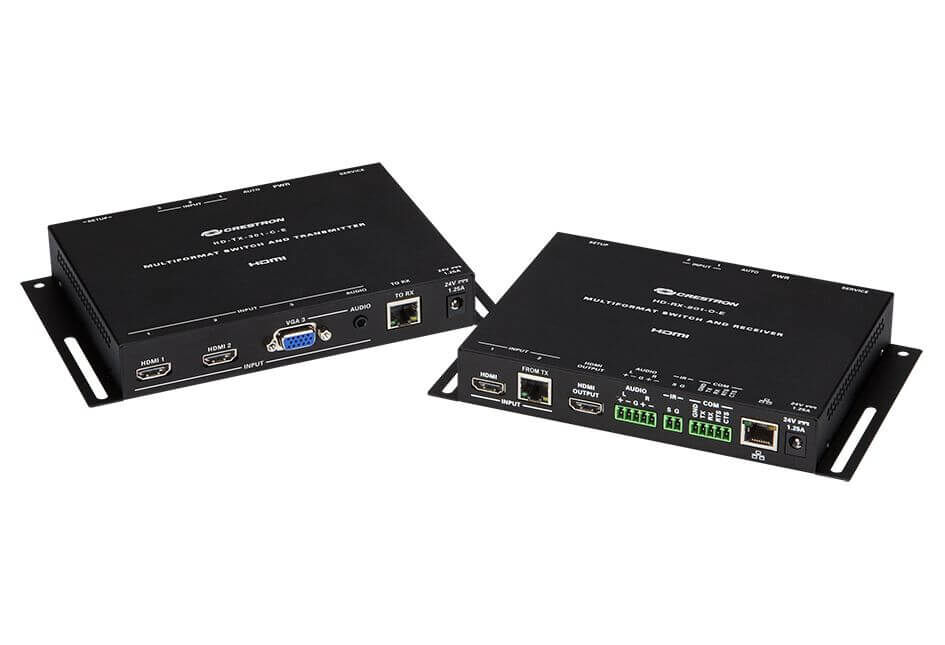

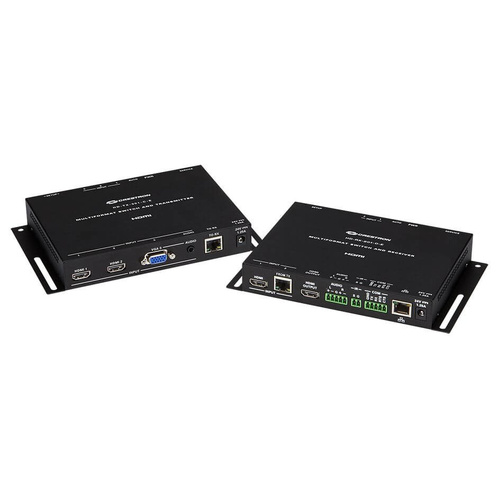

Includes HD-TX-301-C-E Transmitter, HD-RX-201-C-E Receiver, compatible Crestron power adapter, power cable.

Provides a simple and cost-effective high-definition AV presentation solution for classrooms and meeting spaces. It is composed of a DM Lite surface mount transmitter (HD-TX-301-C-E) and receiver (HD-RX-201-C-E), which connect together over a single CATx cable at up to 230 ft (70 m). Provides auto-switching HDMI® and VGA inputs at the transmitter, and one additional HDMI input at the receiver. Built-in scaling ensures a reliable, high-quality video image. Fully-automatic operation and web browser setup eliminate the need for a control panel, control system, or programming.

Key Features

  • 3x1+1 high-definition digital AV switcher, scaler, and extender
  • Fully-automatic operation — no control system, control panel, or programming required!
  • Easy web browser setup
  • Integrates with Crestron Fusion® via the CEN-AVF-HUB[9]
  • Supports integration with a Crestron® control system for fully programmable functionality
  • Supports one Crestron Connect It™ Cable Caddy[2]
  • Includes a compact, surface-mountable transmitter and receiver
  • Transmitter includes two HDMI® inputs, one VGA input, and one analog audio input[3,4,5]
  • Receiver includes one HDMI input, one HDMI output, and one analog audio output[3,6,7]
  • A single CATx cable links the transmitter to the receiver[1]
  • Supports cable lengths up to 230 feet (70 meters) between the transmitter and receiver[1]
  • Automatically scales input signals to match the native resolution of the room display
  • Supports a range of display resolutions up to Full HD 1080p and WUXGA
  • Supports any input resolution up to Full HD 1080p and WUXGA[10]
  • Performs deinterlacing of NTSC, PAL, and 1080i sources
  • Handles Dolby Digital® 5.1, DTS® 5.1, and uncompressed 7.1 linear PCM audio
  • Supports stereo audio de-embedding via the analog audio output[7]
  • Provides up to 150 ms lip-sync delay at the analog output
  • QuickSwitch HD™ technology manages HDCP keys for fast, reliable switching
  • Includes comprehensive built-in EDID configuration tools
  • Provides a 10/100 Ethernet LAN connection
  • Enables device control via CEC, IR, or RS-232
  • Compact, low-profile surface mount design
  • Universal 100-240V external power pack included[11]



  1. For the DM Lite link cable between the TX and RX, use Crestron DM-CBL-8G DigitalMedia 8G™ cable or third-party CAT5e (or better). The maximum cable length is 230 ft (70 m). Shielded cable and connectors are required when bundling multiple cables in a wire run, and are recommended for all applications to safeguard against unpredictable environmental electrical noise which may impact performance at resolutions above 1080p. All wire and cables are sold separately. DM Lite devices are not compatible with DigitalMedia 8G+® (DM 8G+®), HDBaseT®, PoE, PoDM, or any other CATx based interface or network.
  2. Crestron Connect It Cable Caddy (TT-100 series) sold separately. Refer to the TT-100 spec sheet for more information.
  3. Each HDMI input requires an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are available separately.
  4. The VGA input can accept RGB and component video signals through an appropriate adapter (not included).
  5. The analog audio input is only active when the VGA input is selected. It can be used with an audio-only source with no video source connected. The analog audio input cannot be paired with an HDMI video input.
  6. The HDMI output requires an appropriate adapter or interface cable to accommodate a DVI signal. CBL-HD-DVI interface cables are available separately.
  7. The analog stereo audio output is only active when the input is receiving a 2-channel stereo signal via either the analog input or HDMI.
  8. EDID (Extended Display Identification Data) is data embedded in an HDMI, DVI, or VGA signal that enables the display device to tell the scaler what resolutions and formats it can support, allowing the scaler to configure itself automatically to feed an optimal output signal to the display.
  9. Item(s) sold separately.
  10. Supports any input resolution and scan rate that has a pixel clock of 165 MHz or lower.
  11. The transmitter and receiver are powered together by a single wall mount power pack (included), which may be connected to either the transmitter or receiver, not both.
  12. With or without reduced blanking.
  13. With reduced blanking only.

(HD-MD-400-C-E-R)

Video
Switcher 3x1+1 (3 inputs at transmitter + 1 input at receiver) manual or auto-switching, audio-follow-video, Crestron QuickSwitch HD technology
Scaler HD video scaler and deinterlacer, noise reduction, 3:2/2:2 pull-down detection and recovery, aspect ratio selection, VGA phase/clock & H/V position adjustments, picture and RGB color adjustments
Input Signal Types HDMI w/Deep Color (DVI & Dual-Mode DisplayPort compatible [3]); VGA/RGB (RGBHV, RGBS, RGsB); component (YPbPr) [4]
Output Signal Types HDMI w/Deep Color (DVI compatible [6])
Copy Protection HDCP 1.4
Maximum Input Resolutions
Input Type Scan Type Resolution Frame Rate
HDMI Progressive 1920x1200 WUXGA 60 Hz
1920x1080 HD 1080p 60 Hz
Interlaced 1920x1080 HD 1080i 30 Hz
VGA/RGB Progressive 1600x1200 UXGA 60 Hz
1920x1200 WUXGA 60 Hz
Component Progressive 1920x1080 HD 1080p 60 Hz
Interlaced 1920x1080 HD 1080i 30 Hz
NOTE: Common resolutions are shown; other custom resolutions are supported at pixel clock rates up to 165 MHz
Scaler Output Resolutions, HDMI, Progressive Auto, 640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 840x480@60Hz, 1024x768@60Hz, 1280x720@50/60Hz (720p50/60), 1280x768@60Hz [12], 1280x800@60Hz [12], 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz [12], 1400x1050@60Hz [12], 1440x900@60Hz [12], 1600x900@60Hz [13], 1600x1200@60Hz, 1680x1050@60Hz [12], 1920x1080@30/50/60Hz (1080p30/50/60), 1920x1200@60Hz [13]
Scaler Output Resolutions, HDMI, Interlaced Auto, 480i, 576i, 1080i25, 1080i30

Audio
Input Signal Types HDMI (Dual-Mode DisplayPort compatible [3]), analog stereo
Output Signal Types HDMI, analog stereo [7]
Digital Formats Dolby Digital, Dolby Digital EX, DTS, DTS ES, DTS 96/24, LPCM up to 8 channels
Analog Formats Stereo 2-channel [7]
Analog-To-Digital Conversion 24-bit 48 kHz
Digital-To-Analog Conversion 24-bit 48 kHz
Analog Output Volume -80 to +20 dB Level adjustment range, plus Mute
Analog Output Lip-Sync Delay 0 to 150 ms (maximum delay time is reduced for input signals with sampling rates over 48 kHz)
Analog Performance Frequency Response: 20 Hz to 20 kHz ±0.5 dB;
S/N Ratio: >93 dB, 20 Hz to 20 kHz A-weighted;
THD+N: <0.005% @ 1 kHz;
Stereo Separation: >80 dB

Communications
Ethernet 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP, web browser setup and control, Crestron control system integration
USB Supports a TT-100 series cable caddy at the transmitter [2]
RS-232 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking
IR 1-way device control via infrared up to 60 kHz
HDMI HDCP 1.4, EDID, CEC
DM Lite Link Proprietary link for connection between TX & RX only
NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI devices and a control system

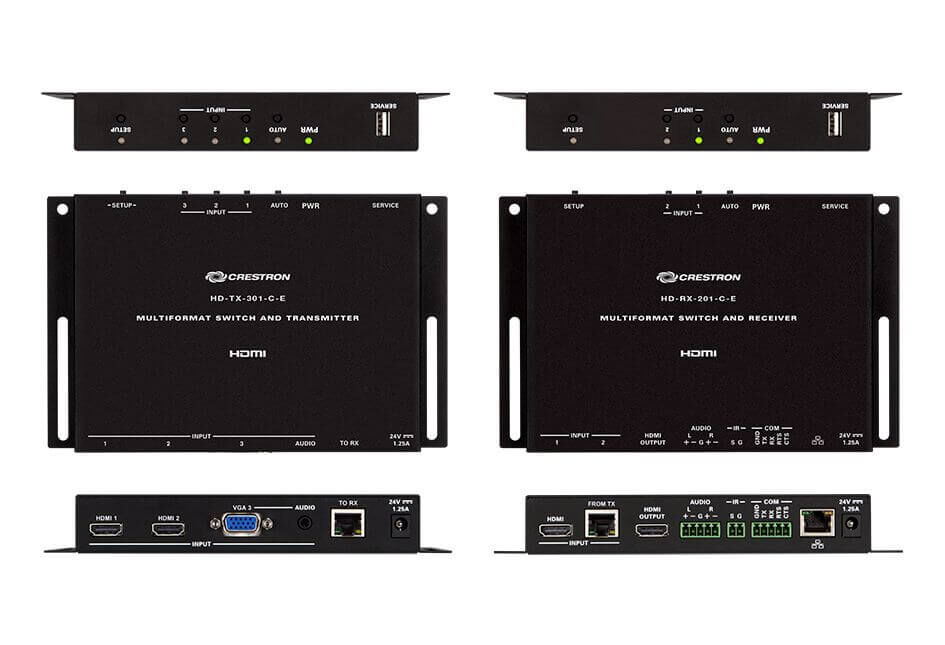

Connectors at Transmitter (HD-TX-301-C-E)
HDMI 1 – 2 INPUT (2) HDMI Type A connectors, female;
HDMI digital video/audio inputs (DVI & Dual-Mode DisplayPort compatible [3])
VGA 3 INPUT (1) HD15 connector, female;
RGB (VGA) or component video input [4];
Formats: RGBHV, RGBS, RGsB, YPbPr
AUDIO INPUT (1) 3.5 mm TRS mini phone jack;
Unbalanced stereo line-level audio input [5];
Maximum Input Level: 2 Vrms;
Input Impedance: 44k Ohms
TO RX (1) 8-pin RJ45 connector, female, shielded;
Link port for connection to HD-RX-201-C-E receiver [1]
24VDC 1.25A (1) 2.1 x 5.5 mm DC power connector;
24 Volt DC power input;
PW-2412WU power pack included [13]
SERVICE (1) USB Type A connector, female;
USB host port for connection of a Crestron TT-100 series device (Crestron Connect It) [2]

Connectors at Receiver (HD-RX-201-C-E)
HDMI, INPUT 1 (1) HDMI Type A connector, female;
HDMI digital video/audio input (DVI & Dual-Mode DisplayPort compatible [3])
FROM TX, INPUT 2 (1) 8-pin RJ45 connector, female, shielded;
Link port for connection to HD-TX-301-C-E transmitter [1];
Maximum cable length: 230 ft (70 m)
HDMI OUTPUT (1) HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible [6])
AUDIO L/R (1) 5-pin 3.5 mm detachable terminal block;
Balanced/unbalanced stereo line-level audio output [7];
Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced;
Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced
IR (1) 2-pin 3.5 mm detachable terminal block;
IR output control port;
Supports IR up to 60 kHz;
IRP2 emitter sold separately;
Note: Provides power on/off control of the display device without a control system, or fully programmable control of any device with a control system
COM (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Supports RS-232 up to 115.2k baud with hardware and software handshaking;
Note: Provides power on/off control of the display device without a control system, or fully programmable control of any device with a control system
LAN (1) 8-pin RJ45 connector, female;
10Base-T/100Base-TX Ethernet port
24VDC 1.25A (1) 2.1 x 5.5 mm DC power connector;
24 Volt DC power input;
PW-2412WU power pack included [13]
SERVICE (1) USB Type A connector, female;
For factory use only

Controls & Indicators at Transmitter (HD-TX-301-C-E)
TO RX (2) LEDs (on RJ45 connector), green LED indicates DM Lite link status, amber LED indicates a valid video signal
PWR (1) Bi-color green/amber LED, indicates operating power is supplied from the power pack via the 24VDC input or from the RX via the DM Lite link, turns amber while booting and green when operating
AUTO (1) Pushbutton to enable/disable auto-switching mode, and (1) green LED to indicate auto-switching mode is enabled
INPUT 1 – 3 (3) Pushbuttons for manual input selection, and (3) bi-color green/amber LEDs to indicate the current active input and signal presence at each corresponding input
SETUP (1) Red LED and (1) recessed pushbutton for Ethernet setup

Controls & Indicators at Receiver (HD-RX-201-C-E)
FROM TX, INPUT 2 (2) LEDs (on RJ45 connector), green LED indicates DM Lite link status, amber LED indicates a valid video signal
LAN (2) LEDs (on RJ45 connector), green LED indicates Ethernet link status, amber LED indicates Ethernet activity
PWR (1) Bi-color green/amber LED, indicates operating power is supplied from the power pack via the 24VDC input or from the TX via the DM Lite link, turns amber while booting and green when operating
AUTO (1) Pushbutton to enable/disable auto-switching mode, and (1) green LED to indicate auto-switching mode is enabled
INPUT 1 – 2 (2) Pushbuttons for manual input selection, and (2) bi-color green/amber LEDs to indicate the current active input and signal presence at each corresponding input
SETUP (1) Red LED and (1) recessed pushbutton for Ethernet setup

Power
Power Pack
(included)		 Input: 0.8 Amps (maximum) @ 100-240 Volts AC, 50/60 Hz;
Output: 1.25 Amps @ 24 Volts DC;
Model: PW-2412WU
NOTE: The transmitter and receiver are powered together using a single power pack. The power pack may connect to either the transmitter or receiver, not both.
Power Consumption 13 Watts typical

Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 20% to 90% RH (non-condensing)
Heat Dissipation 44.3 BTU/hr

Construction
Applicable to both the transmitter and receiver:
Chassis Metal, black finish, with (2) integral mounting flanges, vented sides
Mounting Freestanding, surface mount, or attach to a single rack rail

Dimensions
Transmitter
(HD-TX-301-C-E)		 Height: 1.11 in (28 mm);
Width: 7.70 in (196 mm);
Depth: 5.12 in (130 mm)
Receiver
(HD-RX-201-C-E)		 Height: 1.11 in (28 mm);
Width: 7.70 in (196 mm);
Depth: 4.94 in (126 mm)

Weight
Transmitter
(HD-TX-301-C-E)		 20.0 oz (567 g)
Receiver
(HD-RX-201-C-E)		 20.82 oz (590 g)

Compliance
UL Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device
  1. For the DM Lite link cable between the TX and RX, use Crestron DM-CBL-8G DigitalMedia 8G™ cable or third-party CAT5e (or better). The maximum cable length is 230 ft (70 m). Shielded cable and connectors are required when bundling multiple cables in a wire run, and are recommended for all applications to safeguard against unpredictable environmental electrical noise which may impact performance at resolutions above 1080p. All wire and cables are sold separately. DM Lite devices are not compatible with DigitalMedia 8G+® (DM 8G+®), HDBaseT®, PoE, PoDM, or any other CATx based interface or network.
  2. Crestron Connect It Cable Caddy (TT-100 series) sold separately. Refer to the TT-100 spec sheet for more information.
  3. Each HDMI input requires an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are available separately.
  4. The VGA input can accept RGB and component video signals through an appropriate adapter (not included).
  5. The analog audio input is only active when the VGA input is selected. It can be used with an audio-only source with no video source connected. The analog audio input cannot be paired with an HDMI video input.
  6. The HDMI output requires an appropriate adapter or interface cable to accommodate a DVI signal. CBL-HD-DVI interface cables are available separately.
  7. The analog stereo audio output is only active when the input is receiving a 2-channel stereo signal via either the analog input or HDMI.
  8. EDID (Extended Display Identification Data) is data embedded in an HDMI, DVI, or VGA signal that enables the display device to tell the scaler what resolutions and formats it can support, allowing the scaler to configure itself automatically to feed an optimal output signal to the display.
  9. Item(s) sold separately.
  10. Supports any input resolution and scan rate that has a pixel clock of 165 MHz or lower.
  11. The transmitter and receiver are powered together by a single wall mount power pack (included), which may be connected to either the transmitter or receiver, not both.
  12. With or without reduced blanking.
  13. With reduced blanking only.
SKU HD-MD-400-C-E-R
Barcode # 601527598362
Brand Crestron
Brand Crestron
Type Video Extender
Model HD-MD-400-C-E
Shipping Cubic 0.017794000m3
