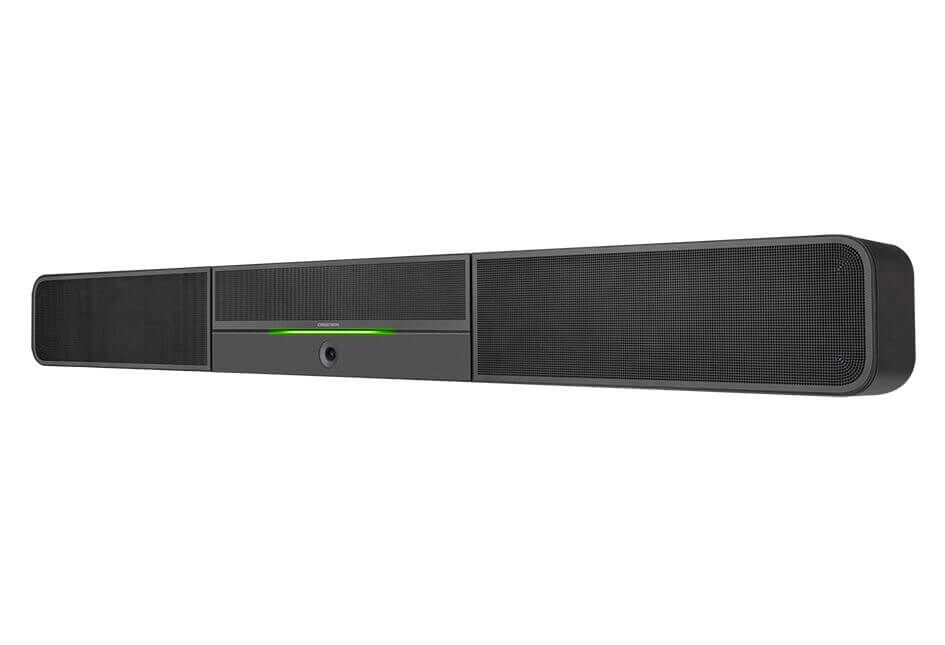

The Crestron® UC Video Conference Smart Soundbar & Camera (UC-SB1-CAM) is a front‑of‑room device that eliminates the need to install additional microphones, speakers, or cameras in a conference space. Mounted on the wall or placed on a credenza beneath the room display(s), the smart soundbar looks great and sounds even better in a small to medium‑sized meeting space.

High‑powered stereo speakers, adaptive beamforming microphone, and advanced digital signal processing deliver exceptional full‑duplex speakerphone performance with highly intelligible, echo‑free voice clarity. A perfect view of the room is achieved through the built-in conferencing camera featuring HD 1080p video resolution, ultra-wide 150° diagonal field of view, and Genius Framing digital autozoom.1

Key Features

  • A complete conferencing speakerphone and camera solution in one front‑of‑room device
  • Sleek and stylish design installs cleanly beneath the room display(s) — mounts on the wall with an integral mounting bracket or sits on a credenza
  • 180° far‑field adaptive beamforming microphone array senses who is speaking and optimizes directionality for clear pickup
  • High‑powered 2‑way stereo speakers produce full, rich, and natural sound quality
  • Advanced AEC & DSP technology affords exceptional full‑duplex audio performance with highly‑intelligible, echo‑free 2‑way voice quality
  • Built‑in Huddly IQ™ camera — a premium conferencing camera fully integrated into the soundbar
  • Ultra wide‑angle 150° diagonal field of view captures the entire room
  • Full HD 1080p video resolution, precision optics, and advanced video processing delivers a crystal clear video image
  • 4x digital zoom, pan, and tilt allows manual shot control
  • Genius Framing lossless digital autozoom automatically detects people and frames them perfectly in the shot1
  • People counting provides room usage analytics2
  • Analog audio input and output connections for local source and assistive listening devices
  • Multicolor status bar indicates audio volume, mute, and operational status
  • USB 3.0 port provides audio and video connectivity through a single USB interface
  • Plug & Play compatible with major computer OS platforms running web conferencing software
  1. Genius Framing is controlled  by Huddly™ software.
  2. Access to people counting data requires software development with the Huddly Software Development Kit (SDK).

(UC-SB1-CAM-R)

Speakers
Woofers (2) 3 in. (76 mm) polypropylene cone w/rubber surround
Passive Radiators (2) 3 x 4‑3/8 in. (76 x 112 mm) polypropylene cone w/rubber surround
Tweeters (2) 1 in. (25 mm) polyester dome
Amplifier Power 20 W RMS per channel, stereo
Frequency Response 80 Hz to 20 kHz (±3 dB)
Effective Output Level 91 dB SPL @ 1 m, both channels driven at full power

Microphone
Microphone Linear quad‑element far‑field adaptive beamforming microphone array
Pickup Range 15 ft. (4.6m)3
Pickup Angle 180° horizontal and 180° vertical
Frequency Response 20 Hz to 8 kHz

Audio
DSP Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ and limiting (fixed);
Full‑duplex IEEE 1329 Type 1 compliant
NOTE: DSP affects USB audio in/out only unless noted otherwise
USB Audio In/Out USB 3.0, UAC 1.0 & HID, AEC‑enabled USB speakerphone, 2‑channel stereo far‑end/content signal input, 2‑channel mono microphone signal output;
Plug & play compatible with the computer, or other USB Audio Class host
Analog Input 2‑Channel stereo, fixed level (bypasses DSP), for in‑room amplification of an external audio source
Analog Input Sensitivity 1 Vrms per channel for full rated output
Analog Output 2‑Channel stereo, fixed level, feeds amplified audio content to an assistive listening system
NOTE: Output level varies for USB input signal only according to the speaker volume control setting; analog input signal passes through without volume control or DSP.

Camera
Model Huddly IQ (mounted internally)
Image Sensor 12 megapixel 1/2.3 CMOS sensor
Lens High precision, ultra wide angle, six element aspherical glass lens
Field of View 150º diagonal, 120º horizontal, 90º vertical
Aperture f/2.8
Processor Neural Compute Engine based on Intel® Movidius™ Myriad™ X video processing unit
Pan/Tilt/Zoom 4x lossless digital zoom, pan, and tilt
Autozoom Genius Framing automatic lossless digital zoom intelligently frames people in the room1
Dynamic Light Optimization Auto‑adjusts light levels and white balance
Noise Reduction 3D noise reduction, bias compensating spatio‑temporal filtering, wide area chroma filtering, flicker elimination
Scaling Real‑time scaling, dewarping, and perspective correction
People Counting Detects and reports the number of people in frame2

Video
USB Video Out USB 3.0, UVC 1.1 & HID, conferencing camera;
Plug & play compatible with a computer, or other USB Video Class host
Output Resolution HD 1080p @ 30 fps
Color Space YCbCr 4:2:0, YCbCr 4:2:2, MJPEG

Indicators
Status Bar (1) Multi‑segment RGBY LED zero‑center mutually‑diverging linear bargraph;
Indicates the speaker volume, microphone mute, and speaker mute in red and green LEDs

Connectors
AUDIO IN (1) 3.5 mm TRS mini‑phone jack;
Unbalanced stereo line‑level audio input;
Input Level: 1 Vrms maximum;
Input Impedance: 10k Ohms
AUDIO OUT (1) 3.5 mm TRS mini‑phone jack;
Unbalanced stereo line‑level audio output;
Output Level: 1 Vrms maximum;
Output Impedance: 100 Ohms
PC (1) USB 3.0 Type‑B connector, female;
USB 3.0 device port;
Connects to computer;
6 ft (1.83 m) USB 3.0 Type B to Type A cable included
CAMERA (1) USB 3.0 Type‑A connector, female;
USB 3.0 host port;
Connects to the internal camera output via a 6 in. (13 cm) USB Type‑C™ to USB 3.0 Type A cable
24 VDC 2.5 A 24 VDC via external 100-240 VAC, 50/60 Hz power pack, model PW-2420RU (included)

Power
Power Consumption 22 W

Environmental
Temperature 41° to 104° F (5° to 40° C)
Humidity 10% to 90% RH (non‑condensing)
Heat Dissipation 75 BTU/hr

Construction
Enclosure Lightly textured gunmetal black finish, plastic housing, perforated stainless steel grilles, die‑cast aluminum rear cover, integral steel hinged mounting bracket
Mounting Freestanding or surface wall mount at ear/face level (adhesive feet included, mounting bracket attached)

Dimension
Height 4.57 in. (117 mm), 4.64 in. (118 mm) with feet
Width 43.60 in. (1108 mm)
Depth 3.90 in. (100 mm)

Weight
13.56 lb (6.2 kg)
  1. Genius Framing is controlled  by Huddly™ software.
  2. Access to people counting data requires software development with the Huddly Software Development Kit (SDK).
  3. Microphone pickup range may vary in rooms with highly reflective infrastructure (e.g., glass walls, metal furniture, open ceilings, etc.) or above average ambient noise.
SKU UC-SB1-CAM-R
Barcode # 615678619753
Brand Crestron
Brand Crestron
Type Video Conferencing
Model UC-SB1-CAM
Connectivity Wired
Shipping Cubic 0.017794000m3
