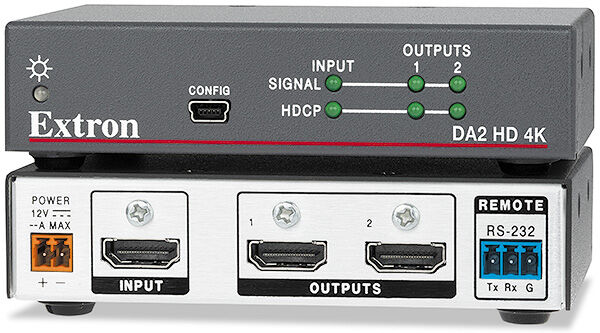

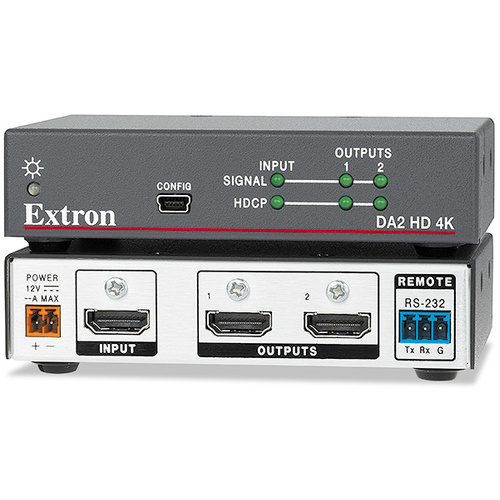

The Extron DA HD 4K PLUS Series are HDCP 2.3 compliant distribution amplifiers for HDMI signals at resolutions up to 4K/60 @ 4:4:4 chroma sampling. They support data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control, along with integrator-friendly features such as automatic input cable equalization, automatic color bit depth management, and selectable output muting. They also feature Extron EDID Minder® and Key Minder® technologies to maintain continuous EDID communication between connected devices and ensure simultaneous distribution of HDCP-encrypted content. The DA HD 4K PLUS Series distribution amplifiers are available in sizes from two to six outputs, and are ideal for applications that require reliable distribution of a single HDMI source signal to multiple displays.

Key Features

  • Supports computer and video resolutions up to 4K/60 @ 4:4:4
  • Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC control
  • HDCP 2.3 compliant
  • Automatic input cable equalization
  • EDID Minder® automatically manages EDID communication between connected devices
  • Key Minder® continuously verifies HDCP compliance

(DA2-HD-4K-R)

Maximum data rate 18.0 Gbps (6 Gbps per color)

Maximum pixel clock 600 MHz

Resolution range Up to 4096x2160 @ 60 Hz (4K), 3840x2160 @ 60 Hz (UHD),1920x1200 or 1080p @ 60 Hz

Formats RGB and YCbCr digital video

SKU DA2-HD-4K-R
Barcode # 615678526082
Brand Extron
Brand Extron
Type Distribution Amplifier
Model DA2 HD 4K
Shipping Cubic 0.017794000m3
