With AirMedia® anyone can walk into a room and wirelessly present PowerPoint®, Excel®, Word, and PDF documents, as well as photos, on the room display from their personal iOS® or Android™ mobile device. MacBook® and PC laptops can be connected seamlessly as well, making presentations from most any device fast and easy. There are no wires to hook up, no complicated settings to configure, and no AV or control system is required. Simply connect via the local Wi-Fi® network and start sharing content from your portable device.

Present Anything — Without Wires
Bring your own device to a meeting or collaboration session and share your content through the big screen without hooking up any wires. AirMedia supports Windows® and OS X® computers, as well as Apple® iOS and Android mobile devices. Presenters using a Mac® or PC can connect to AirMedia without any special software installed, while iPad® and other mobile device users need only download the free AirMedia app from the iTunes® App Store or Google Play™.

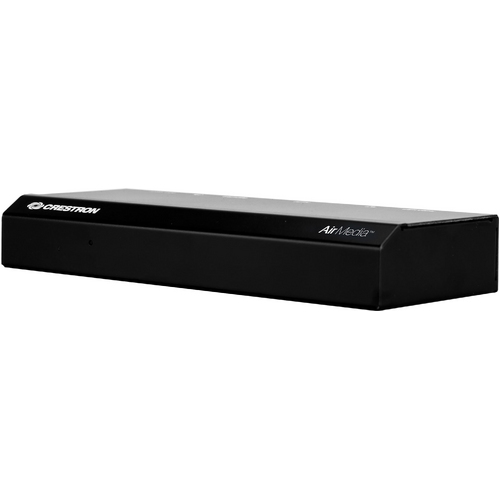

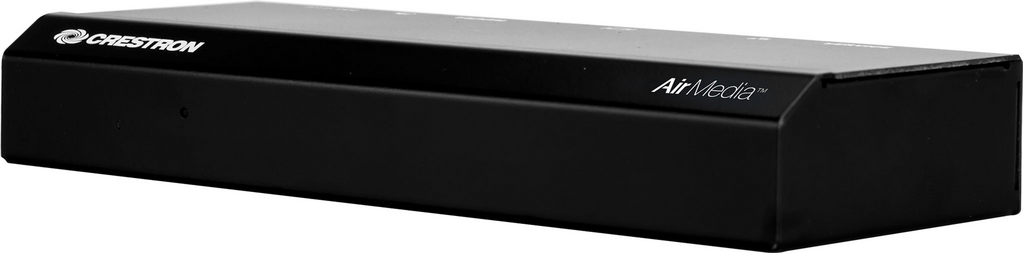

(CrestronAM-100-R)

Features
  Users Supports up to 32 users (presentation device connections)
  Quad View Allows simultaneous display of up to four presentation sources in a quad window
  Moderator Mode (Layout Control) Enables a single moderator to control the presentation via a Web browser or control system touch screen
  Remote View Allows up to 40 remote users to connect via a Web browser to view and save images of the presentation
  Display Control Controls the display device over IP as part of the presentation
  Control System Integration Allows communication over IP with a Crestron Control System® for remote control and integration with other equipment
  Network Management Supports enterprise management and monitoring using SNMP or Crestron Fusion® software
Windows® and OS X® Client Software
  OS Support Windows XP, Windows Vista™, Windows 7, Windows 8, Window 10, Mac® OS X (versions 10.5 thru 10.11)
  Video Frame Rate 15 fps (typical), audio supported
Mobile Apps
  OS Support Apple® iOS®, Android™
  Supported Files MS PowerPoint® (.ppt, .pptx), MS Word (.doc, .docx), MS Excel® (.xls, .xlsx), PDF (.pdf), JPEG (.jpg, .jpeg)
  Shot&Show Shares a static image of any app by using the screen shot function
Video
  Output Signal Types HDMI® (DVI compatible), VGA/RGBHV
  Output Resolutions, Progressive 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1920x1080@60Hz (1080p60), 1920x1200@60Hz
  Output Resolutions, Interlaced 1920x1080@30Hz (1080i30)
  Underscan Up to 7.5%
Audio
  Output Signal Types HDMI, analog stereo
  Formats, HDMI PCM 2-channel
  Formats, Analog Stereo 2-channel
Communications
  Ethernet 10/100 Mbps, auto-switching, auto-negotiating, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SNMP, IPv4, Web server
Connectors
  5VDC 2.6A (1) 2.0 x 3.0 mm DC power connector;
5 Volt DC power input;
Universal power pack included
  AUDIO (1) 3.5 mm TRS mini phone jack;
Unbalanced stereo line-level audio output
  HDMI (1) 19-pin Type A HDMI female;
HDMI digital video/audio output (DVI compatible)
  VGA (1) HD15 female;
RGBHV (VGA) video output
  LAN (1) 8-wire RJ45, female;
10Base-T/100Base-TX Ethernet port
  SERVICE (1) USB Type A female;
For factory use only
Controls & Indicators
  PWR (1) Bi-color LED, red indicates booting, flashing red indicates updating firmware, green indicates operating normally
  LAN (rear) (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
  Reset (bottom) (1) Pushbutton, resets the AM-100 to its factory settings
Power Requirements
  Power Pack 2.6 Amps @ 5 Volts DC;
0.3 Amps (maximum) @ 100-240 Volts AC, 50/60 Hz power pack included
Environmental
  Temperature 32° to 104° F (0° to 40° C)
  Humidity 10% to 90% RH (non-condensing)
  Heat Dissipation 16 BTU/hr
Enclosure
  Chassis Metal, black
  Mounting Freestanding or surface mount (surface mount bracket included)
Dimensions
  Height 1.10 in (28 mm);
1.21 in (31 mm) with bracket
  Width 6.15 in (156 mm)
  Depth 2.39 in (61 mm)
Weight
  8.4 oz (238 g)
SKU CrestronAM-100-R
Barcode # 615678853188
Brand Crestron
Brand Crestron
Type Presentation Gateway
Model AM-100
Shipping Cubic 0.017794000m3
