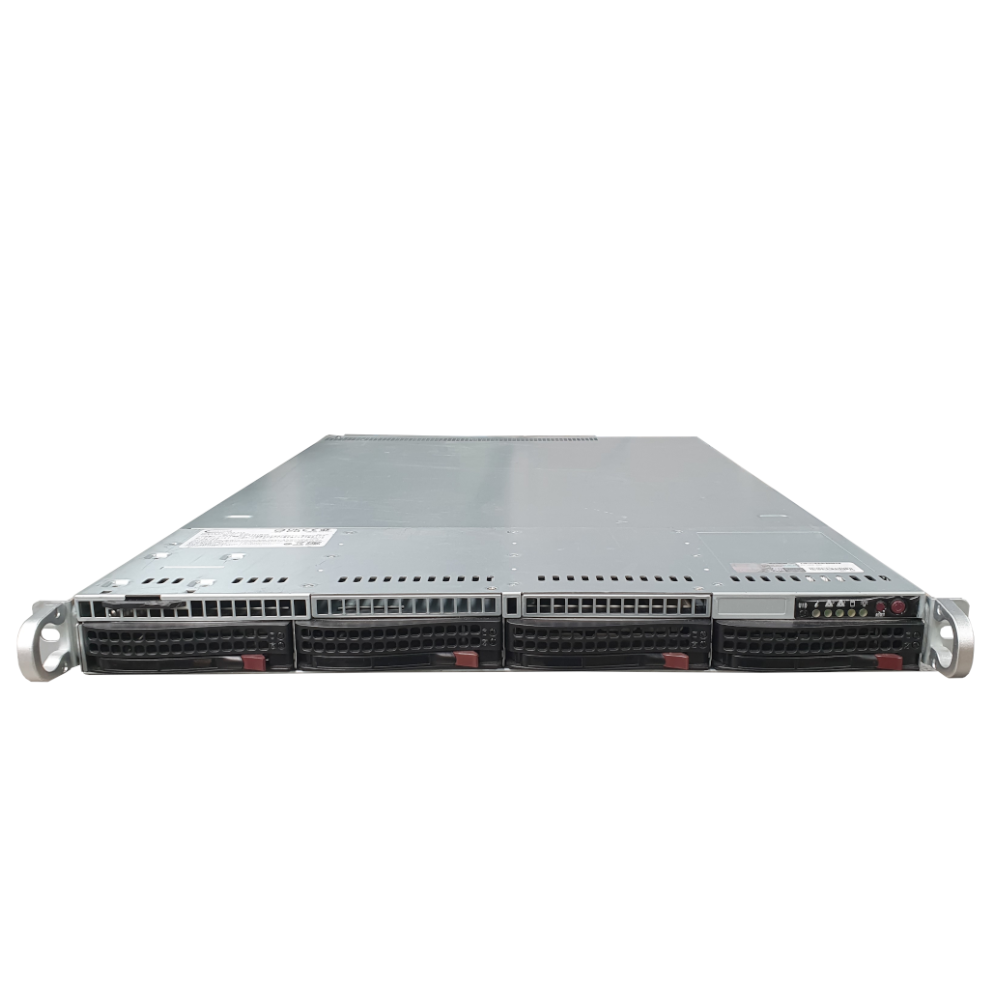

A high-density 1U rackmount chassis optimized for CloudDC server architectures. Engineered specifically for 3rd Gen Intel® Xeon® Scalable dual-socket platforms (LGA 4189), it delivers high-efficiency power, flexible OCP 3.0 networking, and streamlined serviceability for cloud data centers, web hosting, and Virtual Desktop Infrastructure (VDI).

Key Hardware & Management Capabilities

CPU Support: Supports dual 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake-SP, LGA 4189) with high TDP cooling support.

DIMM Slots: Features 16 DDR4 DIMM slots (8 channels per socket, 1 DPC). Supports up to 4 TB using 16 x 256 GB 3DS ECC DDR4 RDIMM/LRDIMM modules, or up to 6 TB total when combined with Intel® Optane™ Persistent Memory 200 Series.

Flexible Networking: (AIOM/OCP 3.0): Offers advanced I/O options via dual Advanced I/O Module slots, allowing drop-in upgrades for 10GbE, 25GbE, or 100GbE cards without taking up standard PCIe expansion slots.

Remote Management: Built-in ASPEED AST2600 BMC with dedicated IPMI 2.0 LAN port, providing HTML5/Java KVM-over-IP, virtual media, and Redfish RESTful API support. Fully compatible with Supermicro Server Manager (SSM) and Supermicro Update Manager (SUM).

(SupermicroSilver43101-r)

Product

Power Cable

Brand Supermicro
Model CSE-LA15TS-R860AWP
Form Factor 1U Rackmount
Bays 4x 3.5"
Processor 2x Xeon Silver 4310 2.10Ghz 12C (3rd Gen)
Memory 256GB (16x 16GB PC4-3200AA)
Storage No HDD (3.5" Caddies)
Raid Controller AOC-S3908L-H8iR-16DD-P (No Battery)
Remote Acess SFT-DCMS-SINGLE
Networking 2x AOC-AH25G-m2S2TM
 ▪ 2P 10G RJ45/ 2P 25G SFP28 (No SFPs)
PCIe Slots 2x Low Profile
Adapter Cards None
Power Supply 2x 860W
Rails None
Bezel n/a
Operating System None
Dimensions 43x 650x 437 mm (1.7x 25.6x 17.2 inches)
Weight 11.3 Kg
Other Features ▪ BPN-SAS3-815TQ (REV 1.00) Backplane

▪ X12DDW-A6 Motherboard
  1x M.2 Slot (2260/2280)

▪ Windows Server IOT 2019 STD (16CR) (ESD)
Notes
SKU SupermicroSilver43101-r
Barcode # 615678732599
Brand Supermicro
Brand Supermicro
Form Factor 1RU Rackmount
Type Server
Series Supermicro LA15 Series
RAM Size 256 GB
Processor Speed 2.10 GHz
Model CSE-LA15TS-R860AWP
DIMMs Installed 16x 16GB PC4 3200AA
Drive Bays 4x 3.5"
Remote Access Management SFT-DCMS-SINGLE
RAID Controller AOC-S3908L-H8iR-16DD-P (No Battery)
Power Supply 2x 860W
Network Connectivity Wired-Ethernet (RJ-45, SFP)
Processor Cores 12
UPC 615678732599
Processor Type 2x Intel Xeon Silver 4310
Memory Type DDR4 ECC-Registered
Shipping Cubic 0.105020000m3
