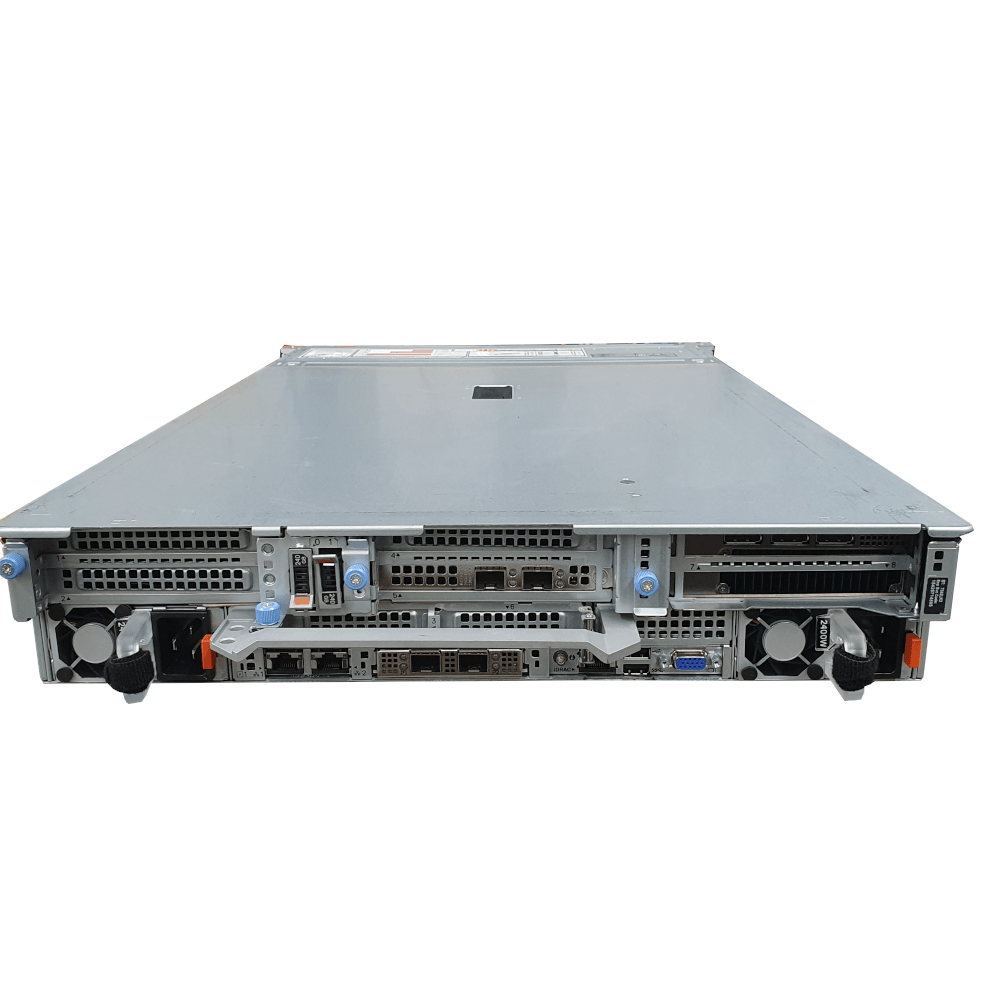

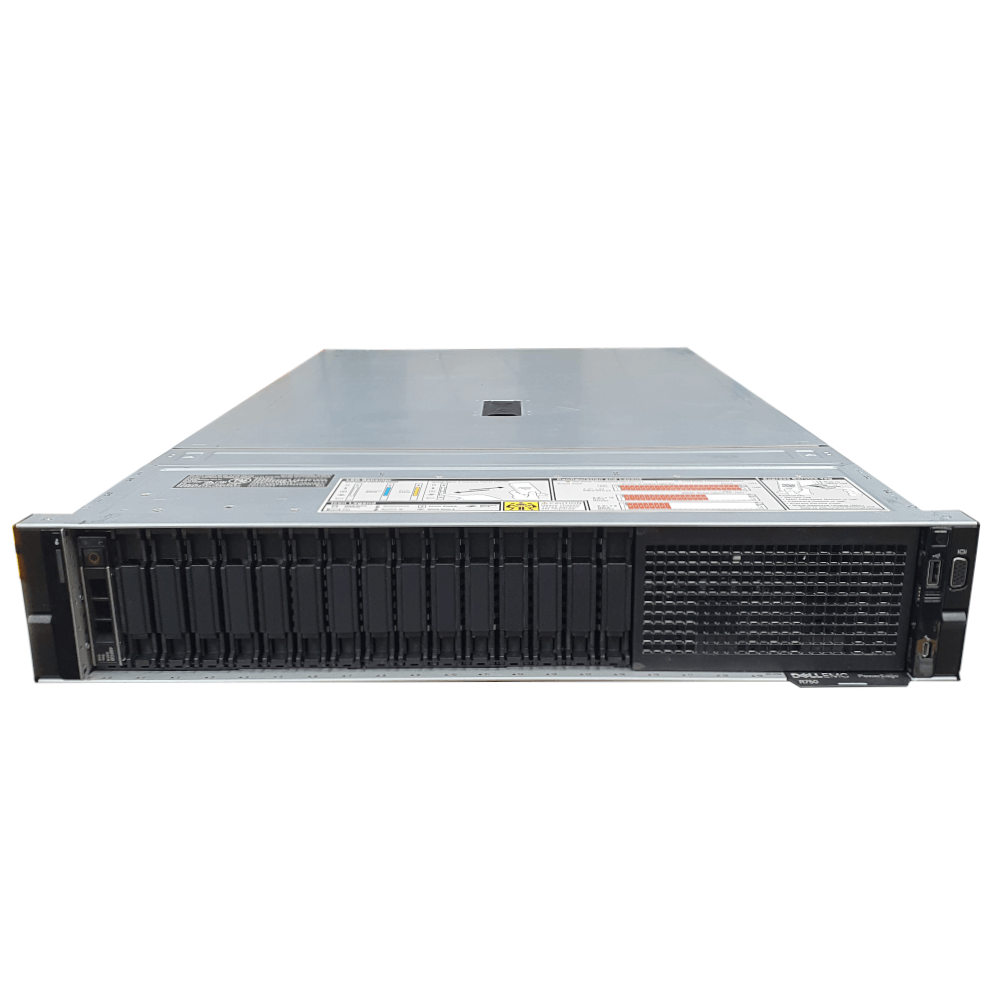

Dual-socket 2U rackmount server designed to handle demanding enterprise workloads. Built on Dell's 15th-generation PowerEdge platform, it features 3rd Generation Intel Xeon Scalable processors, high-speed DDR4 memory bandwidth (8 channels per CPU), and PCIe Gen4 architecture for high-throughput connectivity and data access.

It excels in environments requiring intensive compute density, such as artificial intelligence/machine learning, virtual desktop infrastructure (VDI), large-scale virtualization, and high-performance database analytics.

Key Hardware & Management Capabilities

Dual CPU Support
: Dual-socket 2U architecture supporting up to two (2) 3rd Gen Intel® Xeon® Scalable processors (with up to 40 cores per processor (80 total cores per chassis).

DIMM Slots: 32 DDR4 DIMM slots (16 DIMMs per processor across 8 memory channels) supporting up to 2TB using RDIMMs, up to 8TB using LRDIMMs, or up to 12TB total when combining Intel Optane Persistent Memory 200 Series with RDIMMs. Supports Registered ECC DDR4 (RDIMM), Load-Reduced DDR4 (LRDIMM), and Intel Optane Persistent Memory 200 Series at speeds up to 3200MT/s.

Storage (Configurable): R750 SFF variants range from 8x 2.5", 16x 2.5", 24x 2.5" with Optional rear bays up to 2x 2.5" or 4x 2.5".

Dedicated Boot Storage (Optional): BOSS-S2 (Boot Optimized Storage Subsystem) dual rear-accessible hot-swappable M.2 SSDs.

GPU Acceleration (Optional): Supports up to 2 x double-width 300W GPUs or up to 6 x single-width 75W GPUs.

Remote Management: iDRAC9 dedicated management hardware running on an onboard ARM processor with dedicated RAM and an isolated Ethernet port gives administrators complete out-of-band management over the server regardless of whether the main system is powered on or running an operating system.

(DellR750Gold63541-r)

Product

Includes 15A power cables

Brand Dell
Model PowerEdge R750
Form Factor 2RU Rackmount
Bays 16x 2.5"
Processor 2x Xeon Gold 6354 3.00Ghz 18C (3rd Gen)
Memory 768GB (12x 64GB PC4-3200)
Storage 1x 480GB SATA SSD
2x 240GB M.2 SATA SSD (BOSS-S2)
Raid Controller PERC H345 Front (RAID 0,1,10, Pass-Thru)
Remote Acess iDrac9 Enterprise
Networking  2P 25G rNDC (No SFPs)
 2P 25G PCIe NIC (No SFPs)
 2P 1G RJ45 NIC
PCIe Slots 2x Low Profile, 4x High Profile
Adapter Cards NVIDIA A40 48GB
Power Supply 2x 2400W PSU (15 Amp)
Rails Yes
Bezel Yes (No Key)
Operating System None
Dimensions 86.8x 758.3x 482.0 mm (3.41x 29.85x 18.97 inches, without bezel)
Weight 32.6 Kg
Other Features TPM 2.0
Notes
SKU DellR750Gold63541-r
Barcode # 615678989313
Brand Dell
Brand Dell
Form Factor 2RU Rackmount
Type Server
RAM Size 768 GB
Processor Speed 3.00 GHz
Model PowerEdge R750
DIMMs Installed 12x 64GB PC4-3200
Drive Bays 16x 2.5"
Remote Access Management iDrac9 Enterprise
RAID Controller PERC H345 Front (RAID 0,1,10, Pass-Thru)
Power Supply 2x 2400W PSU (15 Amp)
Network Connectivity Wired-Ethernet (RJ-45, SFP+)
Processor Cores 18
UPC 615678989313
Processor Type 2x Intel Xeon Gold 6354
Connectors 1x 480GB SATA SSD. 2x 240GB M.2 SATA SSD
Memory Type DDR4 ECC-Registered
Shipping Cubic 0.105020000m3
