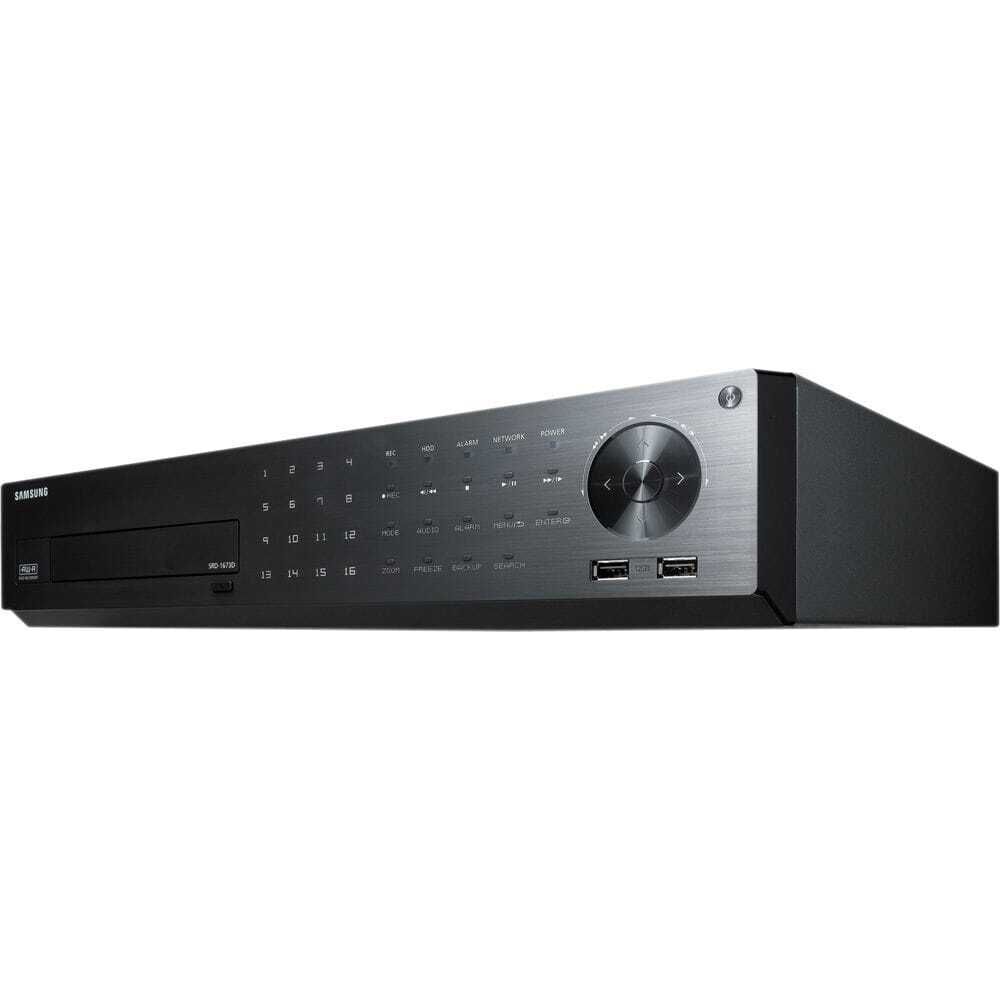

Includes SRD-1653D Digital Video Recorder & Compatible Remote. Does NOT include power cable..

The next generation of Samsung’s legendary SRD DVR products add Full HD 1080p HDMI video out, support for 650TV lines analog cameras, and a sleek touch sensitive front panel, while retaining the familiar and easy to use graphical interface, smartphone support, coaxitron, tampering detection, and E-mail alerts. The SRD-1653D supports recording and playback up to 960 x 480 resolution. Network bandwidth has also been increased for robust remote viewing at high resolutions.

  • 16-channel, realtime @ CIF
  • Maximum resolution of 960 x 480
  • Touch interface front panel
  • Coaxitron support
  • Smartphone support (Android/iOS)
  • Full HD 1080p video out via HDMI
  • DVD writer back up
  • 16-channel audio inputs/1-channel audio output
  • Maximum 4 internal HDDs
  • Smart searching, tampering detection
  • Enhanced network bandwidth up to 32 Mb/s

(SRD-1653D-B)

Display

Video Input 16 composite video 0.5 to 1 Vpp, 75 Ω automatic termination
Video Resolution NTSC : 960 x 480, 720 x 480
PAL : 960 x 576, 720 x 576
Frame Rate 480 fps NTSC, 400 fps PAL
Live Resolution NTSC : 960 x 480, 720 x 480
PAL : 960 x 576, 720 x 576
Multi-Screen Display 1/4/7/9/13/16/16A/PIP/Sequence

Performance

Operating System Embedded Linux
Compression H.264
Recording Rate NTSC : Up to 120 fps @ 960 x 480, 120 fps @ 704 x 480, 240 fps @ 704 x 240, 480 fps @ 352 x 240
PAL : Up to 100 fps @ 960 x 576, 100 fps @ 704 x 576, 200 fps @ 704 x 288, 400 fps @ 352 x 288
Recording Mode NTSC : Manual, Schedule (Continuous/Event), Event (Pre/Post), and Time Lapse (1 to 30 fps)
PAL : Manual, Schedule (Continuous/Event), Event (Pre/Post), and Time Lapse (1 to 25 fps)
Event Video Loss, Motion (Level 1 to 10), Alarm, and Tampering (Level 1 to 3)
Overwrite Modes Continuous
Pre-Alarm Up to 30 sec (5, 10, 20, 30 sec)
Post-Alarm Up to 6 hour (5,10, 20, 30 sec,1, 3, 5, 10, 20 minutes, 1, 2, 3, 4, 5, 6 hours)
Functions For editing software contrast, brightness, and color editing on live and recorded videos
Search Modes Date/time, Event, Back up, Motion, and POS
Playback Function Fast forward/backward (x2, x4, x8, x16, x32, x64)
Slow forward/backward (x1/2, x1/4, x1/8)
Step forward/backward (x2, x4, x8, x16, x32, x64)
Transmission Speed 4CIF/2CIF/CIF (120/240/480 fps NTSC, 100/200/400 fps PAL)
Bandwidth Up to 32 Mb/s
Bandwidth Control Selectable
Stream Type H.264 (4CIF/2CIF/CIF Selectable)
User Access Remotely: Search (3) / Live Unicast (10) / Live Multicast (20)
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, and SNMP
Monitoring Net-I Viewer, Smart Viewer, Webviewer
Platform Android and iOS
Users Remotely: Live 1
Internal HDD Up to 4 SATA HDDs
External eSATA Interface: Up to 2 expansion bay
Backup Media DVD Writer
2x USB ports
File Format Back up: BU (DVR player) and EXE (include player)
Password Protection 1 Admin, 10 Group, and 10 users per 1 Group
Data Authentication Watermark

Interface

VGA 1280 x 720, 1280 x 1024, 1920 x 1080
HDMI 1280 x 720, 1280 x 1024, 1920 x 1080
Spot Composite Digital spot (2-channel)
Input & Output 16-channel line in (Built-in 4-channel
Option : Audio extension cable) / 1-channel line out
Audio Compression Format G.711
Audio Sampling Frequency 8 kHz
Alarm Terminal 16 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC), Rating : 30 VDC / 2 A, 250 VA/ 0.25 A
Notification Remotely via email
Ethernet 1 RJ45 10/100/1000 Base-T
Serial Interface RS-232/RS-485 for PTZ and Samsung System Keyboard
USB 2x USB 2.0 ports
eSATA 2x External SATA ports
Application Support Mouse and remote controller
Protocol Support Samsung-T/E, Pelco-D/P / Panasonic / Phillips / AD / DIAMOND / ERNA / KALATEL / VCL TP / VICON / ELMO / GE
PTZ control via coaxial cable (Samsung CCVC, Pelco-C (Coaxitron))

General

Language Korean, Japanese, Chinese (Simplified / Traditional), English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thai, Romanian, Serbian, Croatian, Hungarian, Greek, Chinese, Finnish, and Norwegian (25 Languages)
Rack Mount Kit 2 Ea.
Electrical Input Voltage / Current: 100 to 240 VAC ±10%; 50/60 Hz, Auto-ranging Power Consumption: Maximum 60 W (with 1 x HDD)
Operating Temperature 32 to 104°F (0 to 40°C)
Humidity 20 to 85% RH
Dimensions 17.32 x 3.46 x 9.72" (440.00 x 88.00 x 246.80 mm)
Weight Approximately 11.46 lb (5.20 kg)



SKU SRD-1653D-B
Barcode # 601527784307
Brand Samsung
Brand Samsung
Type Digital Video Recorders
Model SRD-1653D
Connectivity HDMI, VGA, Composite (BNC)
Unit Of Measure ea
