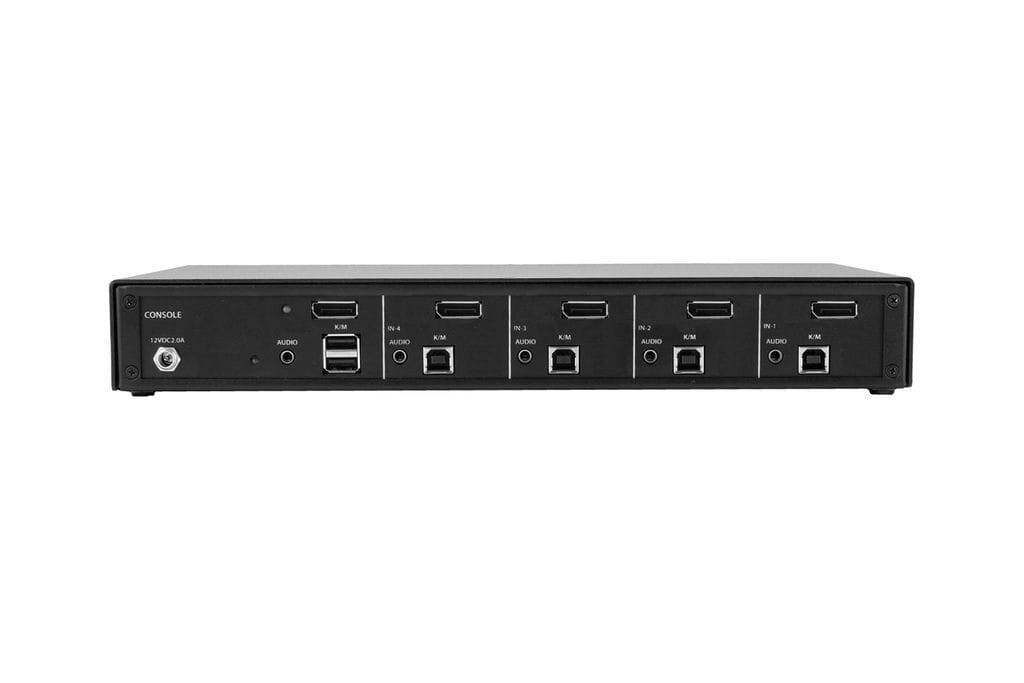

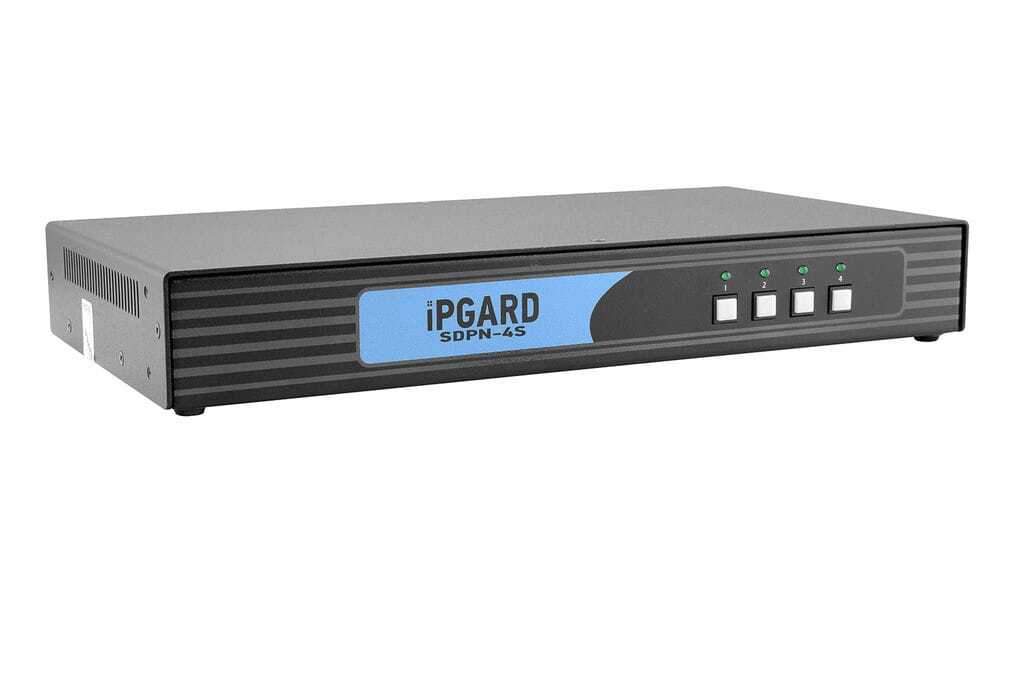

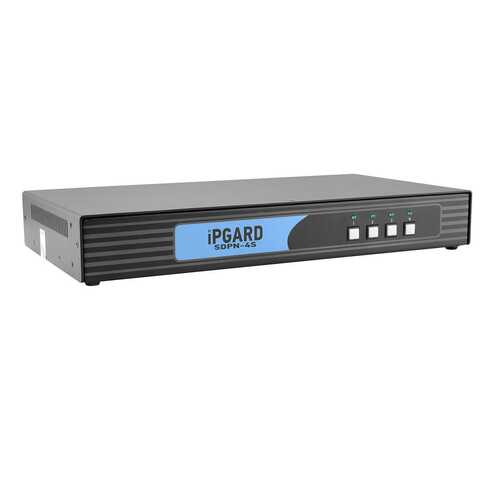

Designed for use in secure defense and intelligence applications, this SDPN-4S 4-Port Single-Head 4K DisplayPort KVM Switch from IPGard features mechanical, electrical and optical signal isolation to prevent hacking and data leakage. It controls data relays using inverted signals, shielding connections from outside intrusion by forcing them to work one at a time. Each port uses its own isolated data channel and each unit features a non-reprogrammable ROM to protect the switch's functions. The switch emulates the presence of a keyboard and a mouse for every attached computer through a USB cable, preventing direct connection between the peripherals and the connected computer.

(iPGARD-SDPN-4S-R)

VIDEO
Format DisplayPort
Input Interface (4) Display Port 20-pin female
Output Interface (1) Display Port 20-pin female
Resolution Up to 4K (3840 x 2160 @ 30Hz)
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
USB
Input Interface (4) USB Type-B
Output (2) USB 1.1 Type A for KM Devices
Emulation Keyboard & Mouse
AUDIO
Audio Input (4) 3.5mm stereo audio
Audio Output (1) 3.5mm stereo audio
CONTROL
Front Panel Front panel SELECT buttons
OTHER
Power External 100-240 VAC/12VDC2A @ 24W
Dimensions 12.57” W x 1.76” H x 6.69” D
Weight 4.2 lbs
Approvals NIAPP PP 3.0, UL, CE, ROHS Compliant
Operating Temp. +32 to +104°F (0 to +40°C)
Storage Temp. -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (No Condensation)
SKU iPGARD-SDPN-4S-R
Barcode # 676821208590
Brand iPGARD
Brand iPGARD
Type KVM Switch
Colour Black
Model SDPN-4S
Shipping Cubic 0.017794000m3
