Complete Media Platform

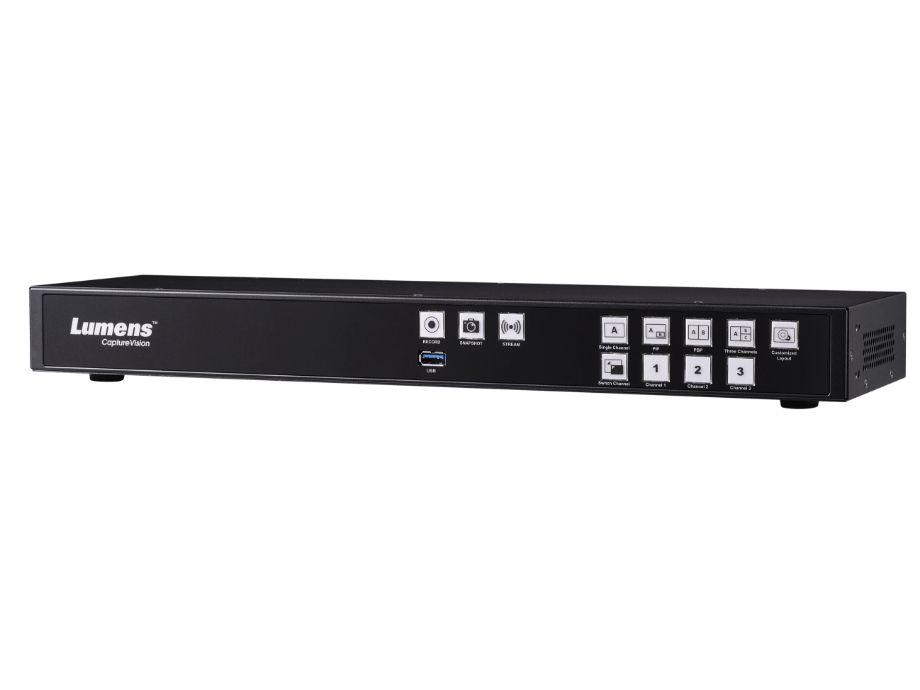

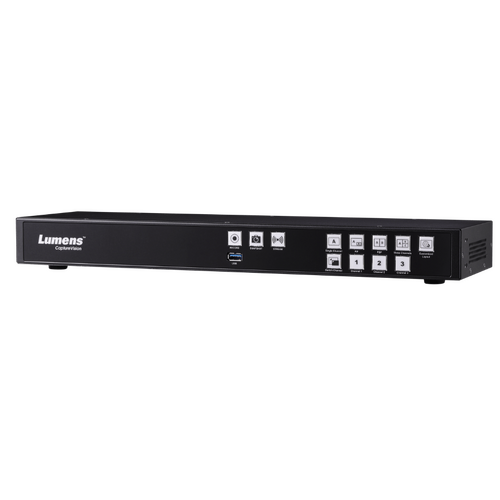

Lumens LC200 CaptureVision is an all-in-one media station. Very simple to operate, it's a video switcher, recorder, and streaming device. LC200 allows you to mix four video and computer sources to create engaging and attractive presentations and productions, complete with logo overlay, optional timestamp, and your choice of background. The system records each HD input independently (plus the program output) and uploads events, lectures, and conferences to your organization's Kaltura, Opencase, Panopto, or Wowza platform. It also streams live to users local and global over your preferred CDN, including YouTube, Twitch, Facebook, and Livestream. LC200 also integrates with applications such as Wirecast, vMix, and OBS Broadcast.

  • 4-input video processor (with HDMI and IP)
  • Source scaling switching and vision mixing
  • Supports RTMP, RTMPS, MPEG-TS, TCP and UDP streaming protocols
  • Full Panopto integration and Crestron control
  • On-board disk storage* with network storage support

* On-board disk storage has been removed.

(LumensLC200-NoHDD-R)

Video Input Number / Signal 4 HDMI digital video
Connection 4 female HDMI type-A
Resolution Range 480i~1080p 60fps
IP Source Lumens IP PTZ / Box Cameras
RTSP Source (H.264 1080p 60/30fps)
Video Compression H.264/AVC 4:2:0 8bit color
Encoding profile: High, Main, Baseline
Bitrate 200 kbps to 10 Mbps
Video Output Number / Signal 3 H.264/AVC digital video over Ethernet
2 HDMI digital video
Scaled Resolution 1080p
Video Output Frame Rate 30 / 60 fps
Internal Storage* Standard 1TB HDD / Optional 2TB HDD
External Storage 1 USB 3.0 port in front panel
File Type H.264 and AAC in an MP4 container, JPEG
Resolution 360p, 720p, 1080p
Recording And Storage Frame Rate Max. 1080p 60/30 fps
Audio Input Number / Signal 4 Line In (stereo, 3.5mm phone jack)
4 stereo, digital de-embedded audio from HDMI
IP Audio Source (RTSP, AAC-Raw, 16K / 44.1K / 48K)
Compression AAC-LC
Audio Output Number / Signal 1 stereo, unbalanced 3.5mm phone jack
2 stereo, digital de-embedded audio from HDMI
USB 2 rear panel USB 2.0 type A
Support USB mouse, keyboard, HID touch display
Serial Control RS-232 / RS-485 port
Ethernet Host Port 1 female RJ-45
10/100/1000 Base-T high/full duplex
Streaming Protocol Pull: RTSP
Push: RTMP / RTMPS / MPEG-TS
TCP, UDP, HTTP
DHCP Client
Supports IP Sources Lumens IP Cameras, RTSP
Scenes Switch Yes, preset for layout, background, and overlay
Layout Switch Yes ( Single, PIP, PBP, 3 and 4 windows layouts)
Background Switch Yes
Overlay Yes, PNG overlay or System time overlay
File Backup FTP / SFTP / NAS(CIFS/SMB, NFS) / USB Flash Drive
Power Supply DC In, 12 V / 2A
Power Consumption 24W
Dimensions Standard 1u rack dimensions
122.5mm(L) x 431mm (W) x 44.3mm (H)
Weight 1.2 kg

* On-board disk storage has been removed.

SKU LumensLC200-NoHDD-R
Barcode # 615678599949
Brand Lumens
Brand Lumens
Type Multiplexer
Model LC200
Shipping Cubic 0.012500000m3
