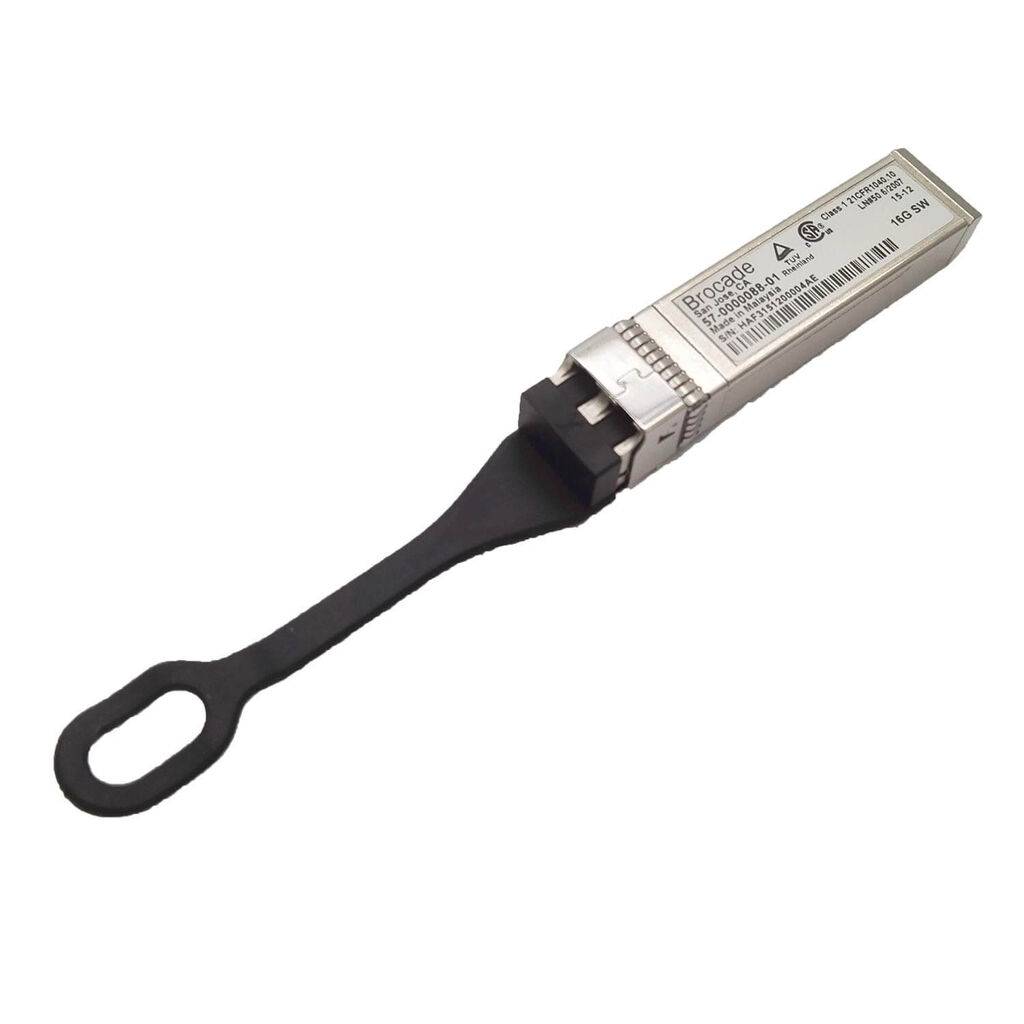

IBM 16Gbps SW SFP+ 8-Pack FRU: 99Y0217. Contains 8x Brocade 57-0000088-01 16Gb/s SWL SFP+ Fiber Modules.

Brocade® 16Gb/s SWL SFP+

Optimized, Certified Optical Transceivers for High-Performance Data Center Fabrics

Today’s enterprise data centers are undergoing an infrastructure transformation, requiring higher speeds, greater scalability, and higher levels of performance and reliability to meet the increasing demands of business. As speed and performance needs increase, optical transceivers are an integral part of an optimized, highly reliable fabric.

The Brocade® 16Gb/s Short Wavelength (SWL) optical transceiver, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade 16Gb/s director and switch products. Together, these optical transceivers provide state-ofthe-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.

(99Y0217)

Performance Fibre Channel: 4.25, 8.5, and 14.025Gb/s line speed, full duplex; auto-sensing of 4, 8, and 14Gb/s port speeds
Media Hot-pluggable, industry-standard Small Form-Factor Pluggable (SFP+), LC connector; Short Wavelength (SWL)
Operating Parameters Transmit (Tx):
Wavelength: 830 nm to 860 nm
Spectral width: 0.59 nm
Average power: –8 dBm to –1 dBm
RIN: –128 dB/Hz max
Optical return loss: 12 dB max
OMA: 331 µW, –4.8 dBm
Receive (Rx):
Wavelength: 770 nm to 860 nm
Average power: 0 dBm max
Optical return loss: –12 dB min
Unstressed sensitivity: 95 µW, –10.2 dBm
SRS OMA: 170 µW, –7.7 dBm
3 dB cutoff maximum: 18 GHz
Operating Distances OM1 62.5 µm (200–500 MHz*km)
  • 4Gb/s Fibre Channel. Distance: 0.5m to 70m
  • 8Gb/s Fibre Channel. Distance: 0.5m to 21m
  • 16Gb/s Fibre Channel. Distance: 0.5m to 15m
OM2 50 µm (500 MHz*km)
  • 4Gb/s Fibre Channel. Distance: 0.5m to 150m
  • 8Gb/s Fibre Channel. Distance: 0.5m to 50m
  • 16Gb/s Fibre Channel. Distance: 0.5m to 35m
OM3 50 µm (1500 MHz*km)
  • 4Gb/s Fibre Channel. Distance: 0.5m to 380m
  • 8Gb/s Fibre Channel. Distance: 0.5m to 150m
  • 16Gb/s Fibre Channel. Distance: 0.5m to 100m
OM4 50 µm (3500 MHz*km)
  • 4Gb/s Fibre Channel. Distance: 0.5m to 400m
  • 8Gb/s Fibre Channel. Distance: 0.5m to 190m
  • 16Gb/s Fibre Channel. Distance: 0.5m to 125m



SKU 99Y0217
Barcode # 615678951716
Brand IBM
Brand IBM
Type SFP+ Module
MPN 99Y0217
Model Brocade 57-0000088-01
Shipping Cubic 0.017794000m3
