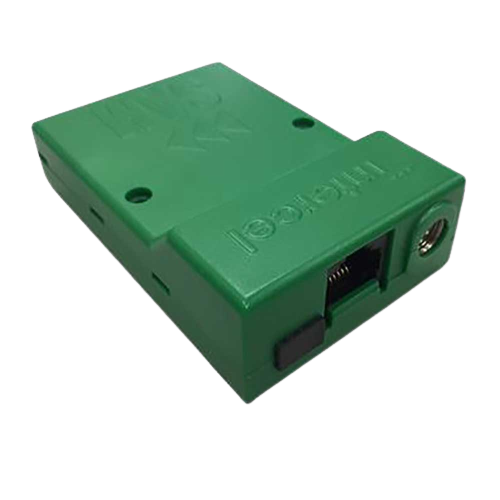

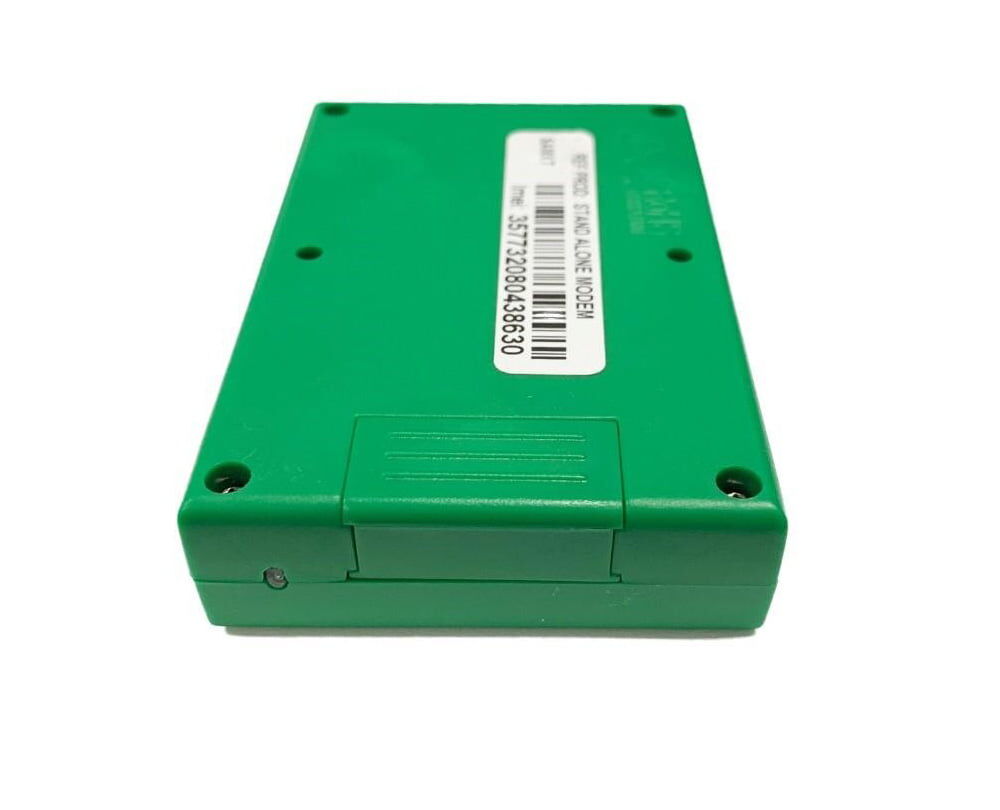

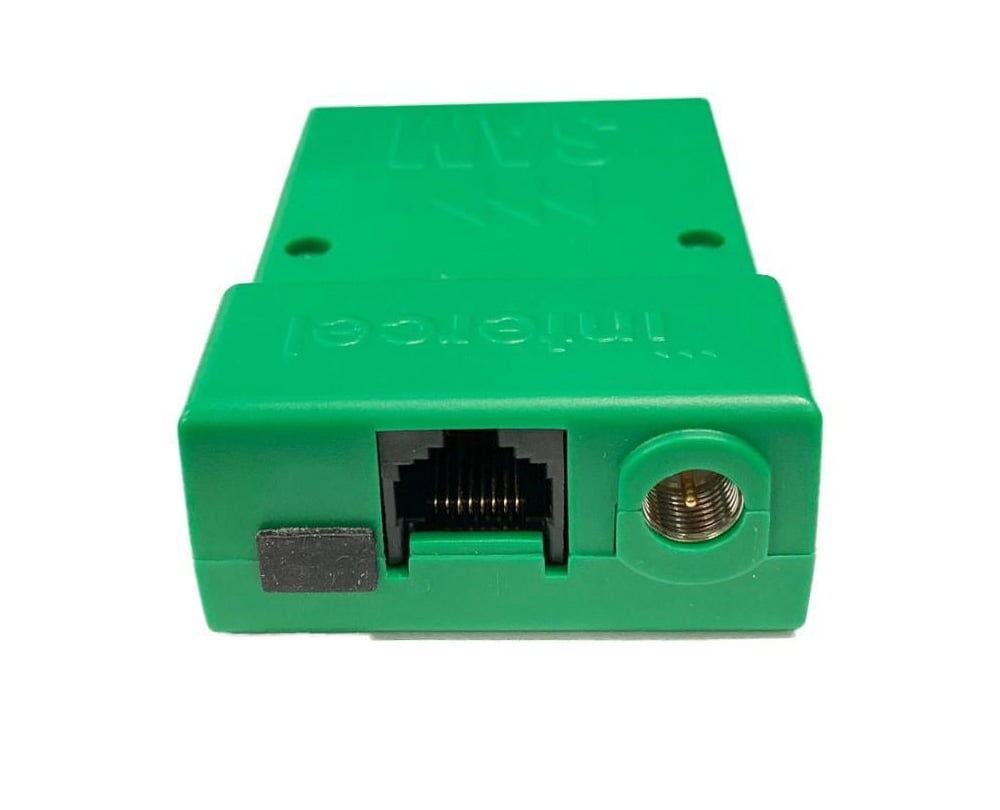

SAMXQ features cutting edge Cat M1 and NB-IoT 4G technologies. These new technologies are designed for low power 4G connectivity and are specifically aimed at M2M, IoT and metering applications. Intercel was the first company to offer a remote meter reading modem in Australia and we have continued to design our solutions that have been utilized across the M2M/IoT industry worldwide. SAMXQ represents the latest and most modern version of our proven and reliable SAM modem family.

The SAMXQ is fitted with a USB port and a serial RS232 port for connectivity and can be controlled using AT commands. The SAMXQ runs Intercel’s TCP/IP stack for remote connectivity.

Features

  • 4G LTE Cat M1 and NB-IoT supported
  • Remote AT Command Configurable
  • Standard 3GPP AT commands TS 27.007
  • Serial RS-232 Interface
  • Strong, Light-weight ABS enclosure



(CELSAMXQ)

  • Output power: Max 23dBm
  • Wide Input Voltage Range: 5V to 32V
  • Current consumption (TBC): Standby: 30mA @ 12V, Average in use: 40mA @ 12V, Maximum in use: 70mA @ 12V
  • Supports 3V/1V8 SIM’s
  • Dimension: 79mm x 52mm x 24mm/19mm
  • Weight: 60g approx.
  • Operating temperature: -40C° to +85C
  • Power through RJ45
  • RoHS compliant



SKU CELSAMXQ
Barcode # 601527804661
Brand Intercel
Brand Intercel
Type IOT 4G Modem
Model SAMXQ
Shipping Cubic 0.017794000m3
