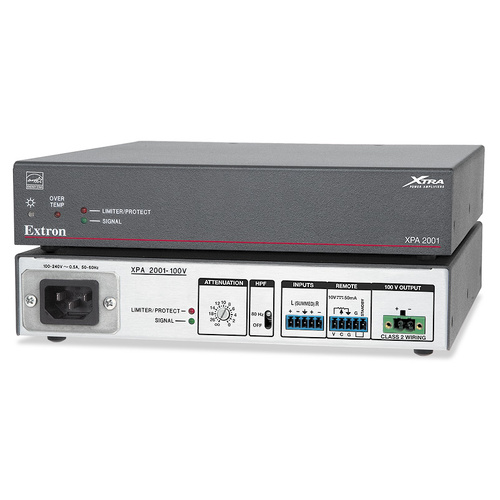

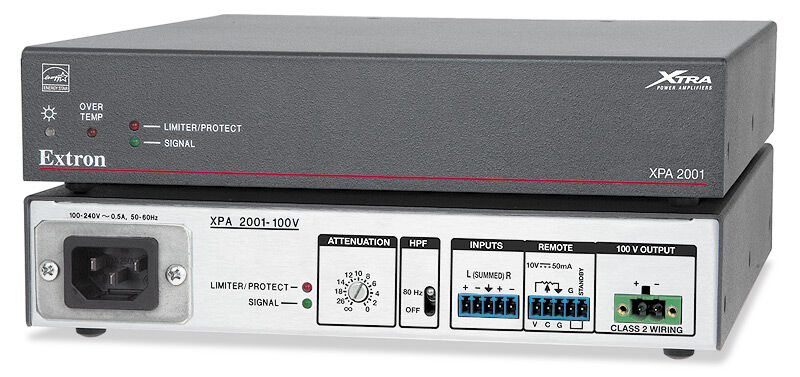

The Extron XTRA™ Series XPA 2001 is a half rack 1U, convection cooled power amplifier delivering 200 watts into a 70 volt or 100 volt line. This professional grade amplifier features a 100 dB signal-to-noise ratio with less than 0.1% THD+N. The XPA 2001 is an Ecofficient Level 3 amplifier with an Extron exclusive, highly efficient, advanced Class D amplifier design. It also features patented CDRS™ - Class D Ripple Suppression technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifiers. The XPA 2001 is housed in a half rack width metal enclosure, conserving rack space and weighing only 2.5 lbs (1.1 kg). The Extron exclusive, high efficiency design generates very little heat and allows the amplifier to be convection cooled.

Features

  • 200 watts rms output power:
    XPA 2001-70V - 1 x 200 watts @ 70 volts
    XPA 2001-100V - 1 x 200 watts @ 100 volts
  • Meets Ecofficient Level 3
  • Professional grade signal-to-noise and THD+N performance
  • Extron Patented CDRS™ - Class D Ripple Suppression
  • Convection cooled, fanless operation
  • Ultra low inrush current - no need for power sequencing

(XPA-2001-100V-R)

Audio
   Voltage gain
      XPA 2001-70V  57x (35 dB)
      XPA 2001-100V  81x (38 dB)
   Stereo channel separation  >75 dB @ 1 kHz
   CMRR  75 dB @ 1 kHz (typical)

Audio input
   Number/signal type  1 stereo or 2 mono, balanced/unbalanced
   Connectors  (1) 3.5 mm captive screw connector, 5 pole
   Impedance  >10k ohms unbalanced/balanced, DC coupled
   Nominal level  +4 dBu (1.23 Vrms), balanced
   Maximum level  +20 dBu (7.75 Vrms), balanced
   Input sensitivity  +4 dBu (1.23 Vrms) if driven by one input
-2 dBu (0.615 Vrms) if both inputs are summed
   Input signal detection threshold  -40 dBu ±3 dB, balanced
    NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

Audio output
   Number/signal type
      XPA 2001-70V  1 mono, 70 V line
      XPA 2001-100V  1 mono, 100 V line
   Connectors  (1) 5 mm screw lock captive screw connector, 2 pole
    NOTE     These connectors accept wires of 22 AWG to 12 AWG.
   Load impedance
      XPA 2001-70V  25 ohms minimum
      XPA 2001-100V  50 ohms minimum
   Amplifier type  Class D
   Output power
      XPA 2001-70V  200 watts rms, 70 V, 1 kHz, <0.1% THD
      XPA 2001-100V  200 watts rms, 100 V, 1 kHz, <0.1% THD
   Frequency response  20 Hz to 20 kHz, ±1 dB
   THD + Noise  <0.1% @ 1 kHz at 3 dB below clipping
   S/N  100 dB, 20 Hz - 20 kHz, unweighted
   Damping factor
      XPA 2001-70V  >100 @ 25 ohms
      XPA 2001-100V  >100 @ 50 ohms
   High pass filter  80 Hz, 12 dB per octave rolloff (switch selectable)

Control/remote — amplifier
   Control port  (1) 3.5 mm captive screw connector, 5 pole
   Pin configurations
      DC volume control (analog)  Pin 1 = +10 VDC, 50 mA (max.), pin 2 = volume/mute (variable voltage), pin 3 = GND
      Volume control voltage range  0 V (mute) to 10 V (maximum volume)
      Standby power control (contact closure)  Pin 4 = GND, pin 5 = standby

General
   Power supply  Internal
Input: 100-240 VAC, 50-60 Hz
   Power consumption and thermal dissipation

      XPA 2001-100V

  115 VAC, 60Hz 230 VAC, 50Hz
AC Line
Current
AC Power
Consumed
Thermal
Dissipation
AC Line
Current
AC Power
Consumed
Thermal
Dissipation
Condition A W W BTU/hr A W W BTU/hr
Active (1/8 power), all
channels driven
100 V 0.4 43.7 18.7 64 0.4 44.8 19.8 68
Quiescent (idle) 0.1 11.9 11.9 41 0.1 11.9 11.9 40
Standby <0.1 <1 <1 <3 <0.1 <1 <1 <3
   Ambient temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
   Cooling  Convection, no vents, with internal heat sinks
   Protection  Clip limiting, thermal, short circuit, DC output
   Indication  Limiter/Protect LED indicates the onset of clip limiting, thermal cycling, or a short circuit
   Mounting
      Rack mount  Yes, with optional 1U rack shelf
   Enclosure type   Metal
   Enclosure dimensions  1.7" H x 8.7" W x 9.5" D (1U high, half rack wide)
(4.3 cm H x 22.1 cm W x 24.1 cm D)
   Product weight  2.5 lbs (1.1 kg)
   Regulatory compliance  CE, C-tick, UL, c-UL,FCC,  Ecofficient Level 3, VCCI, RoHS, WEEE
UL rated for use in plenum airspaces: meets UL 2043 for heat and smoke release.
   Product warranty  3 years parts and labor
   Everlast power supply warranty  7 years parts and labor
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
SKU XPA-2001-100V-R
Barcode # 601527558847
Brand Extron
Brand Extron
Type Power Amplifier
Model XPA 2001-100V
Shipping Cubic 0.017794000m3
