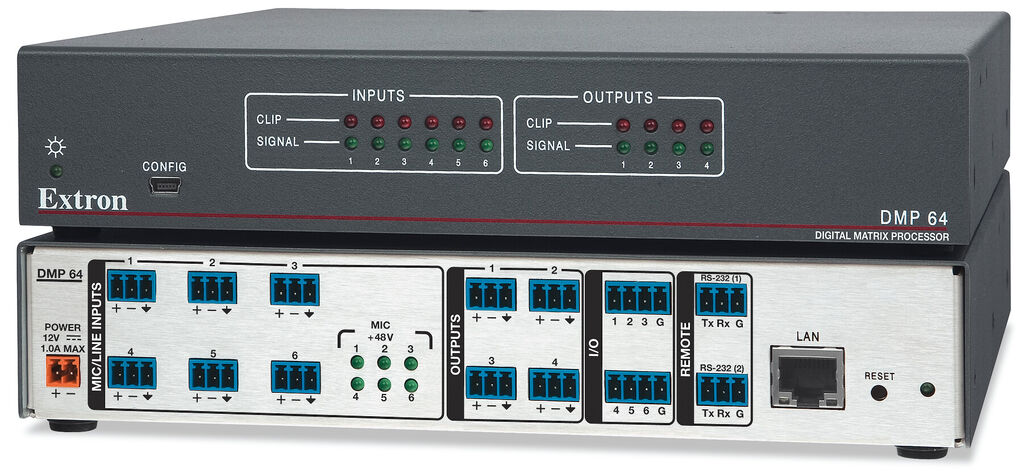

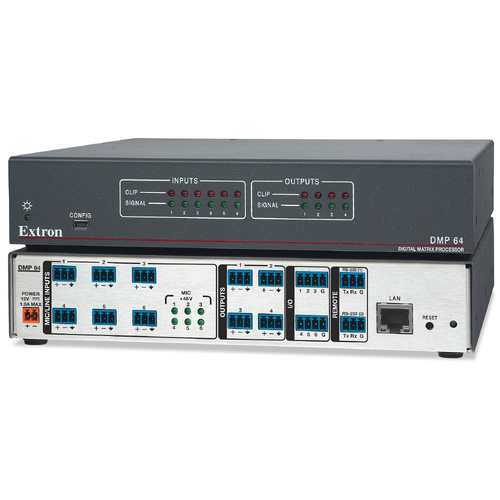

The Extron DMP 64 Digital Matrix Processor is a 6x4 audio mixer featuring Extron ProDSP™, a powerful digital signal processing platform for audio signal routing and control. The DMP 64 offers a configuration approach to DSP that simplifies mixing, routing, and room optimization. Quick and intuitive configuration using the DSP Configurator™ Software allows the DMP 64 to be installed in very little time, with easy-to-learn adjustments that can be heard in real-time. The DMP 64 is ideal for presentation applications that require advanced line and microphone audio matrix mixing with DSP in a small form factor.

Features

  • 6x4 mic/line audio matrix mixer
  • ProDSP™ 32/64-bit floating point signal processing
  • Studio grade 24-bit/48 kHz analog-to-digital and digital-to-analog converters
  • Fixed, low latency DSP processing
  • DSP Configurator™ Software
  • Intuitive Graphical User Environment

(DMP-64-R)

Audio system
   Gain  Unbalanced output: -6 dB; balanced output: 0 dB
   Frequency response  20 Hz to 20 kHz, ±0.1 dB
   THD + Noise  <0.02% @ 1 kHz, at maximum output level
   S/N  >105 dB, 20 Hz to 20 kHz, at maximum output, unweighted
   Crosstalk  <-90 dB @ 1 kHz, fully loaded
   CMRR  >70 dB @ 1 kHz

Audio input
   Number/signal type  6 mono, mic/line, balanced/unbalanced
   Connector  (6) 3.5 mm captive screw connectors, 3 pole
   Impedance  >10k ohms unbalanced/balanced
   Nominal level  +4 dBu when level is set to 0 dB gain; adjustable from -60 dBu to +4 dBu
   Maximum level  +24 dBu, balanced, when input gain is set to -3 dB
   Noise level  <-120 dBV (1 µVrms) at 40 dB gain
   Volume range  -18 dB to +80 dB, mic/line input, adjustable per input
   Mic phantom power  +48 VDC, which can be switched on or off
    NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

Audio processing
   A/D, D/A conversion  24 bit, 48 kHz sampling

Audio output
   Number/signal type  4 mono, balanced/unbalanced
   Connectors  (4) 3.5 mm captive screw connectors, 3 pole
   Impedance  50 ohms unbalanced, 100 ohms balanced
   Gain error  ±0.1 dB channel to channel
   Maximum level (Hi-Z)  >+21 dBu balanced, >+15 dBu unbalanced

Control/remote
   Serial host control port  2 bidirectional RS-232, 3.5 mm captive screw connector, 3 pole
   Baud rate and protocol  38400 baud, 8 data bits, 1 stop bit, no parity
   Serial control pin configuration  1 = Tx, 2 = Rx, 3 = Gnd
   USB control ports  1 front panel female mini USB B
   USB standards  USB 2.0, low speed
   Digital I/O

(2) 3.5 mm captive screw connectors, 4 pole
Each port shares a common ground
6 configurable digital I/0 ports
Input voltage range = 0V to +12V
Output voltage = 0V (low), 5V (high)
Software programmable

   Ethernet host port  1 RJ-45 female
   Ethernet data rate  10/100Base-T, half/full duplex with autodetect
   Ethernet default settings  Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off
   Web server  Up to 200 simultaneous sessions
6.5 MB nonvolatile user memory
   Program control  Extron control/configuration program for Windows®
Extron Simple Instruction Set (SIS)
Microsoft® Internet Explorer®, Telnet

General
   Power input requirements   12 VDC
   Power supply  External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 Watts
   Power consumption
      Device   13.5 W
      Device and power supply   16.2 W
   Ambient temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
   Cooling  Convection, no vents
   Thermal dissipation
      Device   45.8 BTU/HR
      Device and power supply   55.2 BTU/HR
   Mounting
      Rack mount  Yes, with optional 1U rack shelf
      Furniture mount  Yes, with optional under-desk mounting kit
   Enclosure type   Metal
   Enclosure dimensions  1.7" H x 8.75" W x 9.5" D (1U high, half rack wide)
(4.3 cm H x 22.2 cm W x 24.1 cm D)
(Depth excludes connectors)
   Product weight   1.9 lbs (0.9 kg)
   Regulatory compliance  CE, C-tick, c-UL, FCC Class A, ICES, RoHS, UL, VCCI, WEEE, KC
   Warranty  3 years parts and labor
   Everlast power supply warranty  7 years parts and labor
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
SKU DMP-64-R
Barcode # 601527804043
Brand Extron
Brand Extron
Type Audio Matrix Processor
Model DMP 64
Shipping Cubic 0.017794000m3
