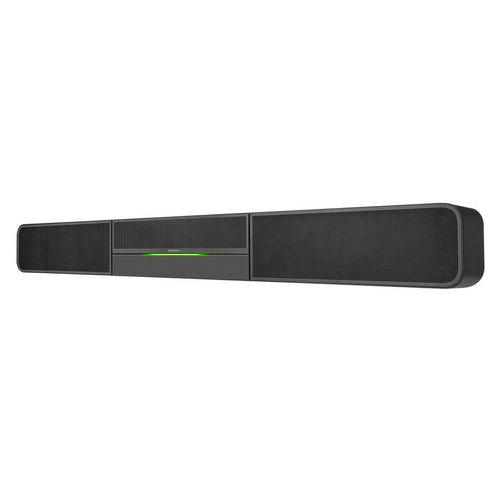

The Crestron® UC Video Conference Smart Soundbar (UC-SB1) is a front‑of‑room device that eliminates the need to install additional microphones or speakers in a conference space. Mounted on the wall or placed on a credenza beneath the room display(s), the smart soundbar looks great and sounds even better in a small to medium‑sized meeting space.

High‑powered stereo speakers, adaptive beamforming microphone, and advanced digital signal processing deliver exceptional full‑duplex speakerphone performance with highly intelligible, echo‑free voice clarity. A USB camera can be connected via a USB 3.0 port on the rear panel.

Key Features

  • A complete conferencing speakerphone solution in one front‑of‑room device
  • Sleek and stylish design installs cleanly beneath the room display(s) — mounts on the wall with an integral mounting bracket or sits on a credenza
  • 180° far‑field adaptive beamforming microphone array senses who is speaking and optimizes directionality for clear pickup
  • High‑powered 2‑way stereo speakers produce full, rich, and natural sound quality
  • Advanced AEC & DSP technology affords exceptional full‑duplex audio performance with highly‑intelligible, echo‑free 2‑way voice quality
  • Camera input allows connection of a USB conferencing camera
  • Analog audio input and output connections for local source and assistive listening devices
  • Multicolor status bar indicates audio volume, mute, and operational status
  • USB 3.0 port provides audio and video connectivity through a single USB interface
  • Plug & Play compatible with major computer OS platforms running web conferencing software

(UC-SB1-R)

Speakers

Woofers (2) 3 in. (76 mm) polypropylene cone w/rubber surround
Passive Radiators (2) 3 x 4‑3/8 in. (76 x 112 mm) polypropylene cone w/rubber surround
Tweeters (2) 1 in. (25 mm) polyester dome
Amplifier Power 20 W RMS per channel, stereo
Frequency Response 80 Hz to 20 kHz (±3 dB)
Effective Output Level 91 dB SPL @ 1 m, both channels driven at full power

Microphone

Microphone Linear quad‑element far‑field adaptive beamforming microphone array
Pickup Range 15 ft. (4.6m)1
Pickup Angle 180° horizontal and 180° vertical
Frequency Response 20 Hz to 8 kHz

Audio

DSP Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ and limiting (fixed); full‑duplex IEEE 1329 Type 1 compliant
NOTE: DSP affects USB audio in/out only unless noted otherwise
USB Audio In/Out USB 3.0, UAC 1.0 & HID, AEC‑enabled USB speakerphone, 2‑channel stereo far‑end/content signal input, 2‑channel mono microphone signal output;
Plug & play compatible with the computer or other USB Audio Class host
Analog Input 2‑Channel stereo, fixed level (bypasses DSP), for in‑room amplification of an external audio source
Analog Input Sensitivity 1 Vrms per channel for full rated output
Analog Output 2‑Channel stereo, fixed level, feeds amplified audio content to an assistive listening system
NOTE: Output level varies for USB input signal only according to the speaker volume control setting; analog input signal passes through without volume control or DSP,

Video

USB Camera Input USB 3.0 port, accepts connection of a USB camera
Output Resolution HD 1080p @ 30 fps

Indicators

Status Bar (1) Multi‑segment RGBY LED zero‑center mutually‑diverging linear bargraph;
Indicates the speaker volume, microphone mute, and speaker mute in red and green LEDs

Connectors

AUDIO IN (1) 3.5 mm TRS mini‑phone jack;
Unbalanced stereo line‑level audio input;
Input Level: 1 Vrms maximum;
Input Impedance: 10k Ohms
AUDIO OUT (1) 3.5 mm TRS mini‑phone jack;
Unbalanced stereo line‑level audio output;
Output Level: 1 Vrms maximum;
Output Impedance: 100 Ohms
PC (1) USB 3.0 Type‑B connector, female;
USB 3.0 device port;
Connects to computer;
6 ft (1.83 m) USB 3.0 Type B to Type A cable included
CAMERA (1) USB 3.0 Type‑A connector, female;
USB 3.0 host port;
Connects to an optional external camera
24 VDC 2.5 A 24 VDC via external 100-240 VAC, 50/60 Hz power pack, model PW-2420RU (included)

Power

Power Consumption 22 W

Environmental

Temperature 41° to 104° F (5° to 40° C)
Humidity 10% to 90% RH (non‑condensing)
Heat Dissipation 75 BTU/hr

Construction

Enclosure Lightly textured gunmetal black finish, plastic housing, perforated stainless steel grilles, die‑cast aluminum rear cover, integral steel hinged mounting bracket
Mounting Freestanding or surface wall mount at ear/face level (adhesive feet included, mounting bracket attached)

Dimension

Height 4.57 in. (117 mm), 4.64 in. (118 mm) with feet
Width 43.60 in. (1108 mm)
Depth 3.90 in. (100 mm)

Weight

13.24 lb (6.0 kg)
SKU UC-SB1-R
Barcode # 615678875265
Brand Crestron
Brand Crestron
Type Sound Bar
Model UC-SB1
Connectivity Wired
Shipping Cubic 0.017794000m3
