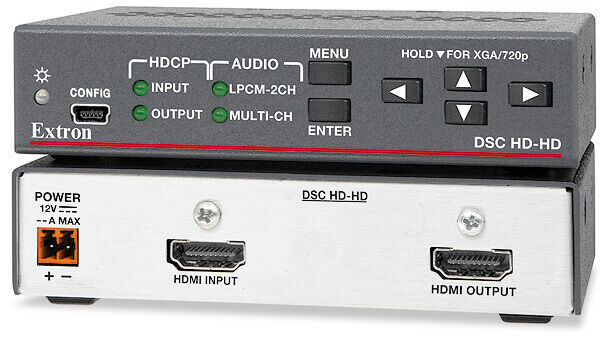

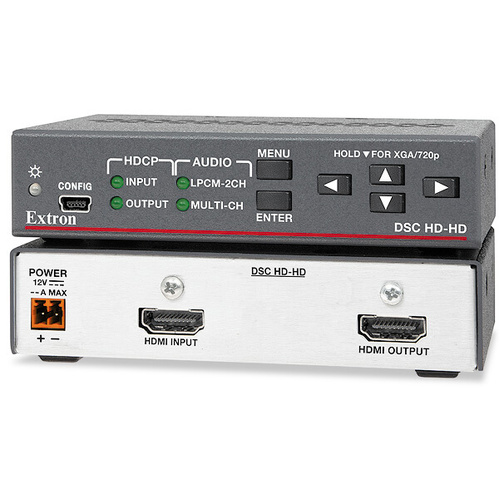

The Extron DSC HD‑HD is a compact high performance, HDCP-compliant scaler that converts between HDMI resolutions and frame rates. It accepts video from 480i up to 1920x1200, 1080p, and 2K, and offers high performance upscaling and downscaling with multiple output rates up to 1920x1200, including 1080p/60 and 2K. The DSC HD‑HD features advanced Extron video signal processing with deinterlacing of signals up to 1080i, and Deep Color processing. It includes many integrator-friendly features such as on‑screen display, test patterns, and EDID Minder®. The DSC HD‑HD is ideal for applications that require scaling HDMI video to match the different capabilities and requirements of sources, displays, codecs, and other equipment. The compact form factor allows simple integration at a source, destination, or in a distribution system.

Key Features

  • HDMI video cross conversion
  • Accepts HDMI video from 480i up to 1920x1200, 1080p/60, and 2K
  • Advanced scaling engine with 30‑bit precision processing and motion-adaptive deinterlacing for signals up to 1080i
  • Selectable output rates from 640x480 to 1920x1200, including 1080p/60 and 2K
  • HDCP compliant
  • EDID Minder® automatically manages EDID communication between connected devices

(DSC-HD-HD-R)

Video input
   Number/signal type  1 HDMI/DVI
   Connector  1 female HDMI type A
   Horizontal frequency  15 kHz to 100 kHz
   Vertical frequency  24 Hz to 75 Hz
   Resolution range  640x480 @ 60 Hz through 1920x1200 @ 60 Hz, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, and 2K (2048x1080)
   Formats  RGB and YCbCr digital video
   Standards  DVI 1.0, HDMI 1.3, HDCP 1.4

Video processing
   Digital pixel data bit depth  8, 10, or 12 bits per channel
165 MHz pixel clock (HDMI)
   Colors  1.07 billion (10-bit processing)

Video output
   Number/signal type  1 HDMI/DVI
   Connector  1 female HDMI type A
   Peripheral device power  250 mA
   Vertical frequency  23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, 60 Hz
   Scaled resolutions  640x4808, 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x10248, 1360x7688, 1366x7688, 1440x9008, 1400x10508, 1600x9008, 1680x10508, 1600x12008, 1920x12008
HDTV: 480p7,8, 576p6, 720p3,4,5,6,7,8, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8, 2K (2048x1080)1,2,3,4,5,6,7,8

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz
   Standards  DVI 1.0, HDMI 1.3, HDCP 1.4

Audio input
   Number/signal type  1 HDMI, embedded
   Connector  1 female HDMI type A
   Supported formats
      Analog de-embedding  LPCM-2Ch
      HDMI pass-through  LPCM up to 7.2/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1,
DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel, DTS:X

Audio output
   Number/signal type  1 HDMI, embedded
   Connector  1 female HDMI type A

Communication
   USB control port  1 female USB mini-B (front panel)
   Program control  On-screen display (OSD) via front panel control
Extron Simple Instruction Set (SIS™) commands
​Extron control/configuration program for Windows®

General
   Power supply  External
Input: 100-240 VAC, 50-60 Hz
​Output: 12 VDC, 1.5 A, 18 watts
   Power consumption
      Device   8.6 watts
      Device and power supply   10.7 watts
   Ambient temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
   Cooling  Convection, side vents
   Thermal dissipation
      Device   28.0 BTU/hr
      Device and power supply   35.2 BTU/hr
   Mounting
      Rack mount  Yes, with optional rack shelf
      Furniture mount  Yes, with optional under-desk mounting kit
   Enclosure type   Metal
   Enclosure dimensions  1.0" H x 4.25" W x 6.0" D (1.0" high, quarter rack wide)
(2.5 cm H x 10.8 cm W x 15.2 cm D)
(Depth excludes connectors.)
   Product weight   0.5 lbs (0.2 kg)
   Regulatory compliance  CE, C-tick, c-UL, UL, FCC Class A, ICES, VCCI
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
SKU DSC-HD-HD-R
Barcode # 601527808096
Brand Extron
Brand Extron
Type Video Scaler
Model DSC HD-HD
Shipping Cubic 0.017794000m3
