Powerful and efficient 1-socket rack server for small and medium businesses (SMB) and remote office/branch office (ROBO).

An excellent first server or replacement server for driving applications in SMB. Compared to the previous-generation PowerEdge R220, the R230 delivers greater memory capacity, more hard drives and I/O slots, and accelerates data throughput and IOPs performance. The R230 also supports the full-featured, remote management of the integrated Dell Remote Access Controller (iDRAC8) with Lifecycle Controller, making it highly attractive for ROBOs of large institutions.

(5432)

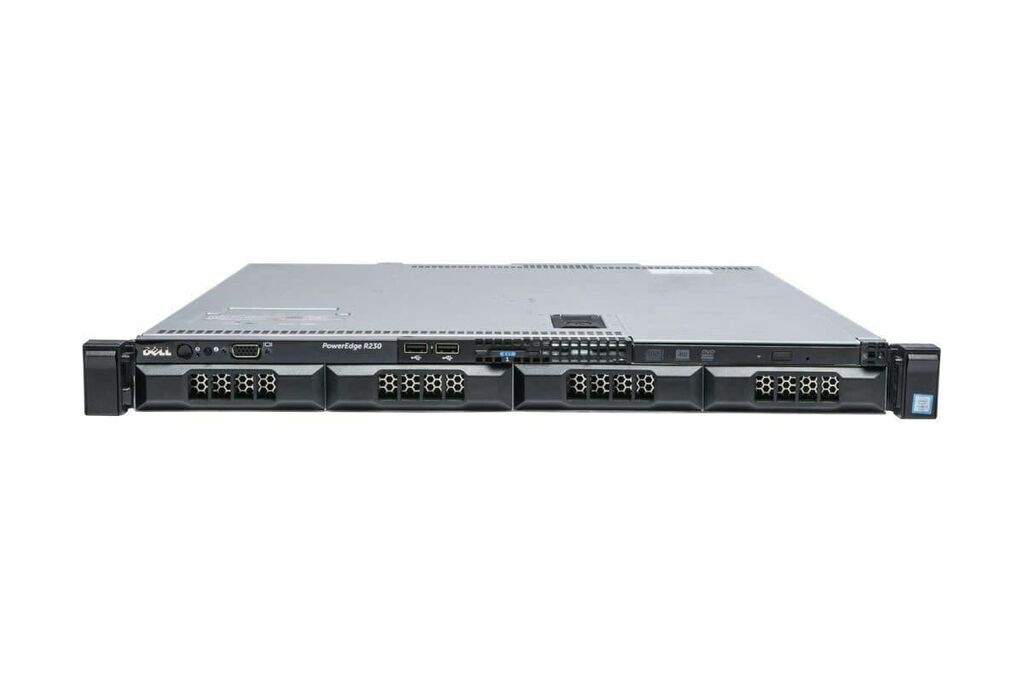

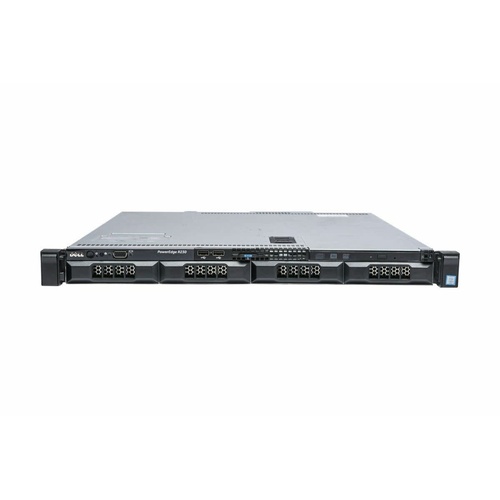

R230 –ª 1U Rackmount
–ª 4-Bay LFF
–ª 1 x Low, 1 x High PCIe slot
–ª Single Processor Support
–ª Xeon E3-1200 v5, v6 Series
–ª 4 DDR4 DIMM slots
–ª 2p Onboard RJ45 NIC
–ª E3-1270 v6
  –ª Base 3.8 GHz / Max Turbo: 4.2 GHz
  –ª 4 Cores / 8 Threads
  –ª TDP 72 W
–ª 32GB DDR4 ECC-UDIMM
  –ª 2 x 16GB PC4-2400T E
–ª 2 x 480GB SATA SSD

 (No additional caddies)
–ª PERC H330, PCIe-Type
–ª rNDC - n/a
–ª Adapter card - None
–ª TPM module - v1.2
–ª COA
  –ª Windows Server 2016 STD (16 Core)
  –ª No OS installed, No media included
–ª Remote Access - iDrac Enterprise
–ª IDSDM module - n/a

–ª Cabled 250W PSU


–ª Optical drive - included


–ª Rear Bay - n/a

–ª Rails - none
–ª Bezel - none
–ª Used, may have minor marks or scratches
Notes
SKU 5432
Barcode # 615678761780
Brand Dell
Brand Dell
Form Factor 1RU Rack
Type Server
MPN R230
RAM Size 32 GB
Storage Capacity 2 x 480GB SATA SSD
Processor Speed Base 3.8 GHz, Max 4.2 GHz
Model PowerEdge
Optical Disc Drive Yes
Installed Processors 1
Drive Bays 4-Bay 3.5"
Chassis Rack-Mountable
RAID Controller PERC H330 PCIe-Type
Custom Bundle No
Dimms Install 2x 16GB PC4-2400T E
Flex Drive Bay Not Applicable
Power Supply Cabled 250W PSU
Network Connectivity Wired-Ethernet (RJ-45)
Processor Sockets 1
Processor Thermal Design Power 72 W
Processor Cores 4
Processor Threads 8
Manufacturer Part Number R230
EAN 0 884116282105
UPC 8 84116282105
Processor Type Xeon E3-1270 v6
Memory Type DDR4 ECC-UDIMM
