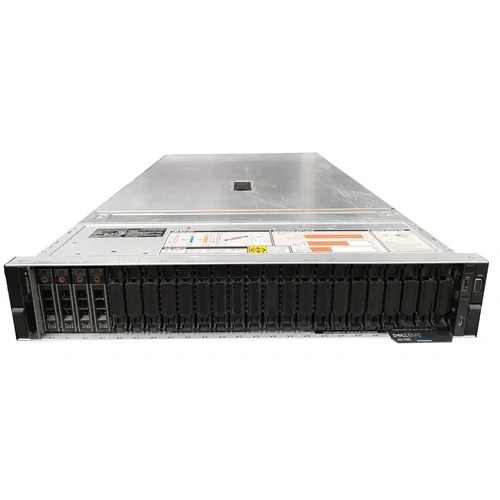

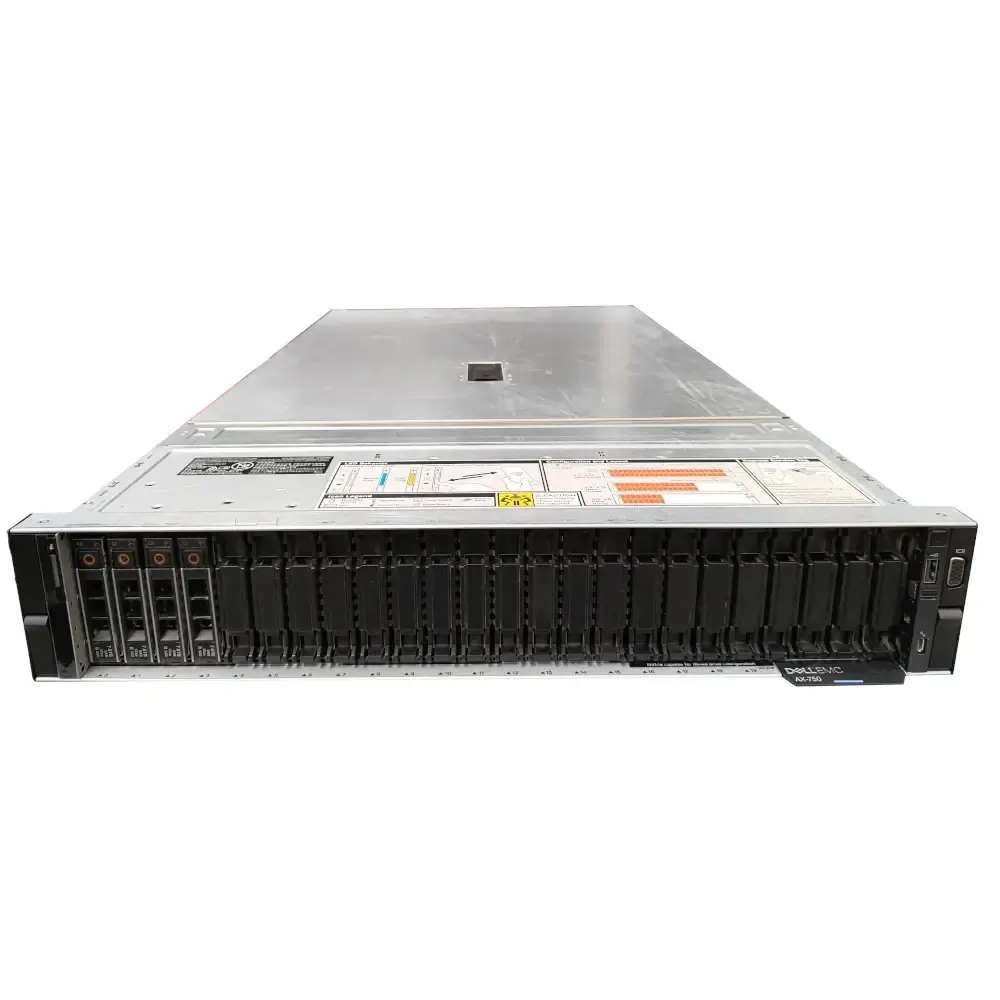

Dual-socket 2U rackmount server designed to handle demanding enterprise workloads. Built on Dell's 15th-generation PowerEdge platform, it features 3rd Generation Intel Xeon Scalable processors, high-speed DDR4 memory bandwidth (8 channels per CPU), and PCIe Gen4 architecture for high-throughput connectivity and data access.

It excels in environments requiring intensive compute density, such as artificial intelligence/machine learning, virtual desktop infrastructure (VDI), large-scale virtualization, and high-performance database analytics.

Key Hardware & Management Capabilities

Dual CPU Support
: Dual-socket 2U architecture supporting up to two (2) 3rd Gen Intel® Xeon® Scalable processors (with up to 40 cores per processor (80 total cores per chassis).

DIMM Slots: 32 DDR4 DIMM slots (16 DIMMs per processor across 8 memory channels) supporting up to 2TB using RDIMMs, up to 8TB using LRDIMMs, or up to 12TB total when combining Intel Optane Persistent Memory 200 Series with RDIMMs. Supports Registered ECC DDR4 (RDIMM), Load-Reduced DDR4 (LRDIMM), and Intel Optane Persistent Memory 200 Series at speeds up to 3200MT/s.

Storage (Configurable): R750 SFF variants range from 8x 2.5", 16x 2.5", 24x 2.5" with Optional rear bays up to 2x 2.5" or 4x 2.5".

Dedicated Boot Storage (Optional): BOSS-S2 (Boot Optimized Storage Subsystem) dual rear-accessible hot-swappable M.2 SSDs.

GPU Acceleration (Optional): Supports up to 2 x double-width 300W GPUs or up to 6 x single-width 75W GPUs.

Remote Management: iDRAC9 dedicated management hardware running on an onboard ARM processor with dedicated RAM and an isolated Ethernet port gives administrators complete out-of-band management over the server regardless of whether the main system is powered on or running an operating system.

(DellR750Silver43101-r)

Product

Includes 15A power cables

Brand Dell
Model R750 (AX-750 Branded)
Form Factor 2RU Rackmount
Bays 24x 2.5"
Processor 2x Xeon Silver 4310 2.10Ghz 12C (3rd Gen)
Memory 256GB (16x 16GB PC4-3200AA) *¹
Storage 2x 240GB M.2 SATA SSD (BOSS-S2)
4x 7.6TB SAS SSD
Raid Controller PERC HBA355i Fnt (non-RAID, Pass-Thru)
Remote Acess iDrac9 Datacenter
Networking ▪ LOM: 2P 1G RJ45
▪ OCP 3.0: 2P 10/25G SFP28 (No SFPs)
▪ Rear I/O: I/O (iDRAC port, VGA, USB)
PCIe Slots 1x Low Profile, 4x High Profile
Adapter Cards 2P 25G SFP28 (No SFPs)
Power Supply 2x 1400W PSU
Rails None
Bezel None
Operating System None
Dimensions 86.8x 758.3x 434.0 mm (3.41x 29.85x 17.0 inches, without bezel)
Weight 29.6 Kg
Other Features TPM 2.0
Notes *¹ ▪ Max CPU Memory Speed: 2666 MHz
     (2666V)
SKU DellR750Silver43101-r
Barcode # 634607067311
Brand Dell
Brand Dell
Form Factor 2RU Rackmount
Type Server
SSD Capacity 2x 2x 240GB M.2 SATA, 4x 7.6TB SAS SSD
Series PowerEdge
RAM Size 256 GB
Processor Speed 2.10 GHz
Model R750 (AX-750 Branded)
DIMMs Installed 16x 16GB PC4-3200AA
Drive Bays 24x 2.5"
Remote Access Management iDrac9 Datacenter
RAID Controller PERC HBA355i Fnt (non-RAID, Pass-Thru)
Power Supply 2x 1400W
Network Connectivity Wired-Ethernet (RJ-45, SFP+)
Processor Cores 12
UPC 634607067311
Processor Type 2x Intel Silver 4310
Memory Type DDR4 ECC-Registered
Shipping Cubic 0.105020000m3
