The Crestron® USB over Category Cable Extenders  (USB‑EXT‑2‑LOCAL and USB‑EXT‑2‑REMOTE) deliver reliable, high‑speed USB signal extension for USB 1.1 and 2.0 devices in a conference room, classroom, auditorium, command center, medical facility, public space, or residence. Without requiring any special configuration or drivers, the USB extenders enable wire runs up to 330 ft (100 m) over a single CAT5e (or better) unshielded twisted-pair (UTP) cable. The USB extenders support most USB device types and are plug‑and‑play compatible with computers running Windows®, macOS®, and Linux® operating systems.

Two types of USB extenders are available:

  • USB‑EXT-2‑REMOTE - Provides connectivity for up to two USB devices (keyboards, whiteboards, mobile devices, etc.) at one location
  • USB‑EXT-2‑LOCAL - Provides connectivity for a single USB host (computer, media server, codec, etc.)


Linking the two extenders requires one run of CAT5e unshielded twisted-pair cable.2 Both extenders are powered by a single 100-240 VAC power supply, which can be connected at either end to an AC power receptacle.3 The USB‑EXT‑2‑LOCAL and USB‑EXT‑2‑REMOTE are compatible with the USB over Category Cable Extender Wall Plates (USB‑EXT‑2‑LOCAL‑1G and USB‑EXT‑2‑REMOTE‑1G).

Note: The USB‑EXT-2‑LOCAL and USB‑EXT-2‑REMOTE are simple point-to-point USB signal extenders. They do not switch or route USB signals, and do not connect to a network. For KVM and other applications routing USB signals over an Ethernet network, please refer to the USB over Category Cable Extenders (USB‑NX2‑LOCAL‑1G and USB‑NX2‑REMOTE‑1G) or the USB over Ethernet Extenders with Routing (USB‑EXT‑DM‑LOCAL and USB‑EXT‑DM‑REMOTE).2

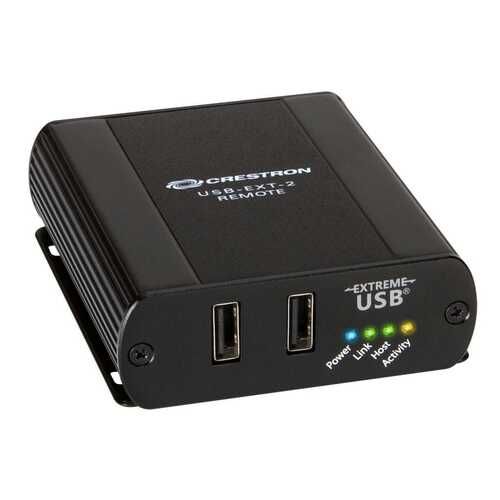

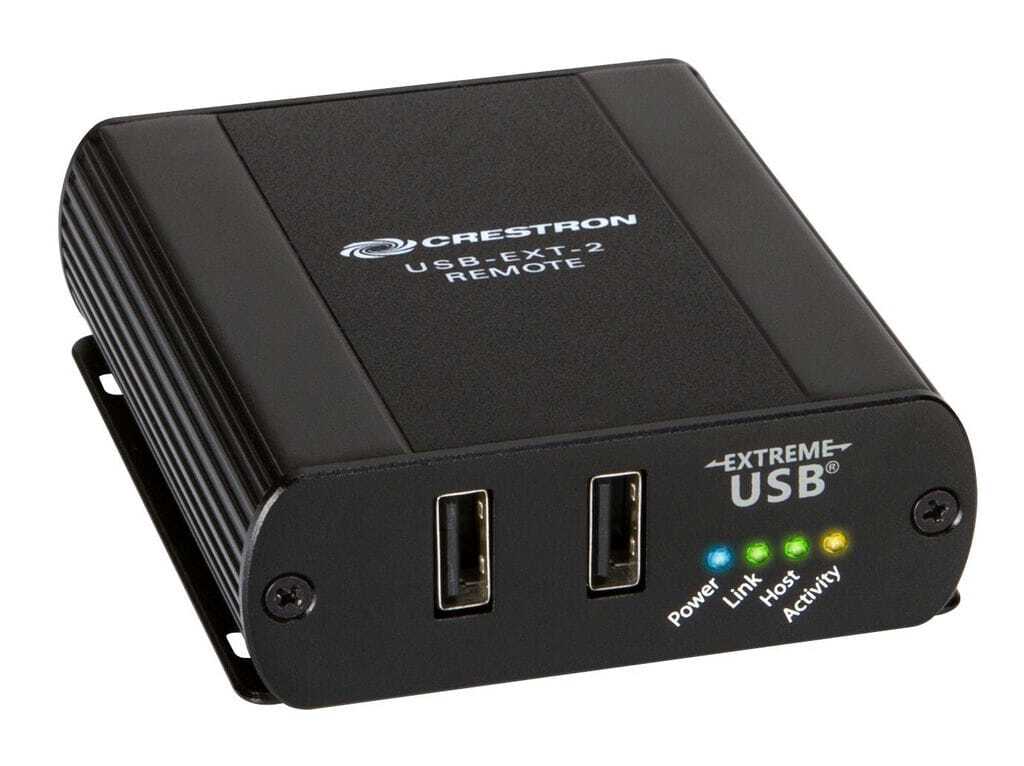

(USB-EXT-2-REMOTE)

Communications
Link USB extension up to 100 m (330 ft) over solid-core CAT5e (or better) unshielded twisted pair (UTP) cable2
USB Device Support USB 1.0/1.1 and 2.0 compatible including mass storage and isochronous devices1
USB Hub Support Any signal chain may include up to 4 USB hubs plus one USB-EXT-2-LOCAL and one USB-EXT-2-REMOTE1
Maximum USB Devices 30 USB devices, or 4 USB hubs with 26 USB devices
Host Computer OS Support Windows®, macOS®, and Linux® operating systems
USB Throughput USB 2.0 up to 480 Mbps, USB 1.1 up to 12 Mbps
Connectors – Local endpoint
24 V 1A (1) 2.1 x 5.5 mm DC power connector;
24 VDC power input (power supply included)3
Config For factory use only
Link (1) 8-pin RJ45 connector, female;
Connects directly to a Remote extender2
USB (1) USB Type B connector, female;
USB 2.0 device port for connection to the USB host computer, media server, game console, annotator, codec, etc.

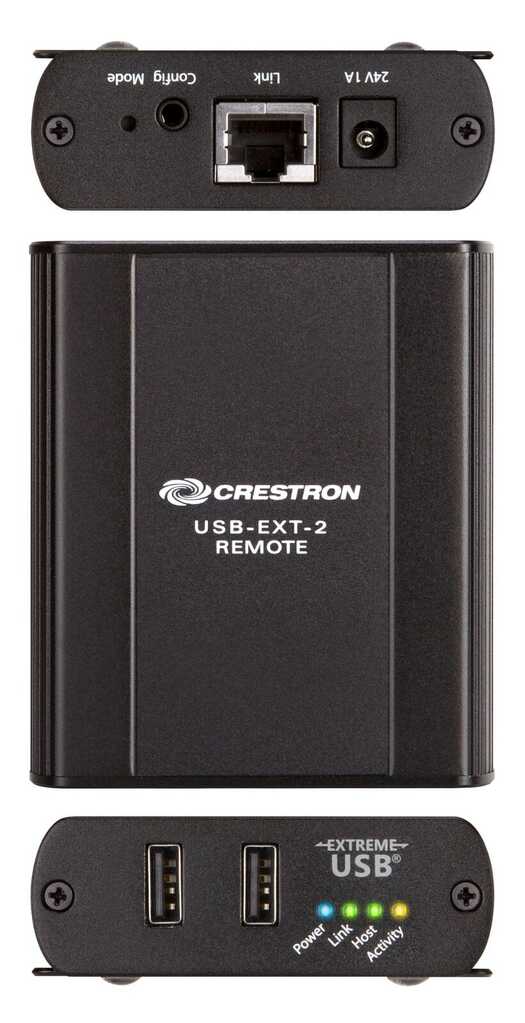

Connectors – Remote endpoint
24 V 1A (1) 2.1 x 5.5 mm DC power connector;
24 VDC power input (power supply included)3
Config For factory use only
Link (1) 8-pin RJ45 connector, female;
Connects to Link port on the Local endpoint2
USB (2) USB Type A connectors, female; USB 2.0 host ports for connection of USB devices such as mice, keyboards, and other USB devices1
Available USB Power: 1 A maximum per port, 1.5 A maximum total
Indicators – Local endpoint
Activity (1) Amber LED, indicates data activity on the Link interface
Host (1) Green LED, indicates a valid connection to the USB host
Link (1) Green LED, indicates a valid Link connection to the Remote extender
Mode (1) Recessed pushbutton (for factory use only)
Power (1) Blue LED, indicates operating power is supplied via the local power supply or the Link connection3
Indicators – Remote endpoint
Activity (1) Amber LED, indicates data activity on the Link interface
Host (1) Green LED, indicates a valid connection to the USB host at the Local extender
Link (1) Green LED, indicates a valid Link connection to the Local extender
Mode (1) Recessed pushbutton (for factory use only)
Power (1) Blue LED, indicates operating power is supplied via the local power supply or the Link connection3
Power
Available USB
Power
Supplies 1 A maximum per each of two USB
Type A ports, 1.5 A maximum total
USB‑EXT‑2‑LOCAL USB powered via the USB host interface3
USB‑EXT‑2-REMOTE Input: 100-240 VAC, 50/60 Hz;
Output: 1 A @ 24 VDC
Environmental
Temperature 32° to 122° F (0° to 50° C)
Humidity 20% to 80% RH (non-condensing)
Construction
Housing Metal, black finish, adhesive rubber feet
Mounting Includes four slots for wire ties or other third-party mounting hardware
Dimensions
Height 1.03 in. (26 mm) without feet
Width 2.96 in. (75 mm)
Depth 3.43 in. (87 mm)
SKU USB-EXT-2-REMOTE
Barcode # 608539347131
Brand Crestron
Brand Creston
Type USB Extender
Model USB-EXT-2-REMOTE
Shipping Cubic 0.017794000m3
