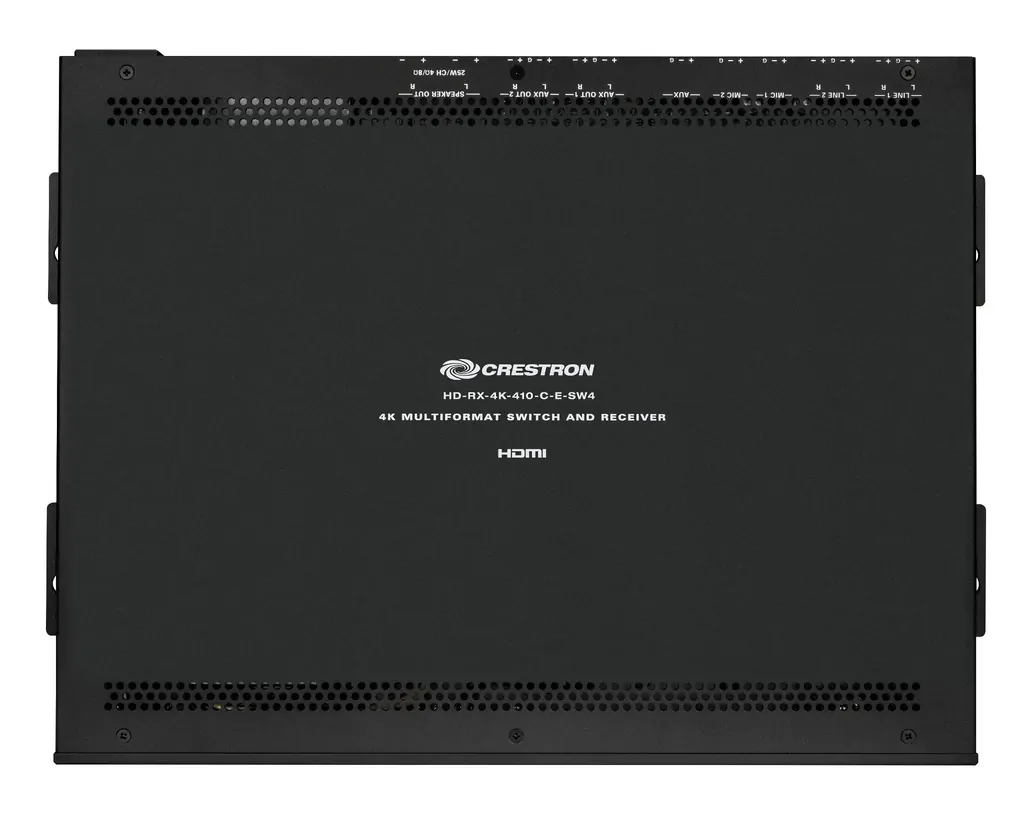

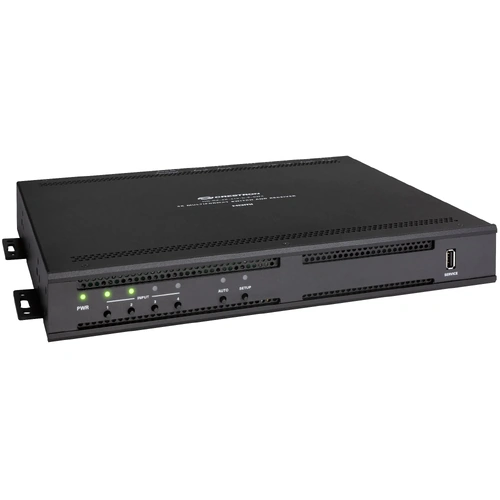

Compatible with DM Lite® transmitters (certain models only). Features two DM Lite inputs, two HDMI® inputs, and one scaling HDMI output. Includes amplified audio outputs for speakers, five analog audio inputs, and two analog audio outputs. Also includes IR, RS-232, relay, and I/O control ports. Provides a 4-port Gigabit Ethernet switch with two PoE+ ports. Supports .AV Framework™ technology.

Key Features

  • 4K/60 4:2:0 capability
  • Two DM Lite® ports for interoperability with up to two DM Lite transmitters (certain models only)
  • Two HDMI® inputs
  • One HDMI output with 4K scaler
  •  4-port Gigabit Ethernet switch with two PoE+ ports
  • Two stereo line level inputs, two mono microphone inputs, and one mono auxiliary audio input
  • Built-in amplifier with 25 W per channel for 4- or 8-ohm stereo speakers
  • Two stereo auxiliary outputs
  • IR, RS-232, relay, and I/O control ports
  • CEC (Consumer Electronics Control) capability
  • Automatic switching of inputs
  • 6x2 audio mixing capability
  • EDID management
  • HDCP management including HDCP 2.2 support
  • Built-in web interface for easy configuration and monitoring
  • Compatibility with Crestron® 3-Series® or later control systems
  • .AV Framework™ technology support
  • Crestron XiO Cloud® service support
  • Native integration with Cisco Webex® and Touch 10 devices
  • Compact surface-mount design

(HD-RX-4K-410-C-E-SW4-OB)

Video
Switcher 4x1 auto-switching or manual, audio-follows-video, Crestron Auto-Locking® and QuickSwitch HD™ technologies
Scaler (HDMI Output) 4K video scaler with motion-adaptive deinterlacing, intelligent frame rate conversion, Deep Color support, content-adaptive noise reduction, 3:2/2:2 pull-down detection and recovery
Input Signal Types HDMI with Deep Color and 4K (DVI and Dual-Mode DisplayPort™ interface compatible3) on Inputs 1-2, DM Lite with Deep Color and 4K on Inputs 3-4
Output Signal Types HDMI with Deep Color and 4K (DVI compatible4)
Copy Protection HDCP 2.2
Maximum Resolutions Common resolutions are listed below for the HDMI and DM Lite inputs.
Scan
Type		 Resolution Frame
Rate		 Color
Sampling		 Color
Depth
Progressive 4096x2160 DCI 4K and 3840x2160 4K UHD 24 Hz 4:4:4 30 bit
30 Hz 4:4:4 24 bit
30 Hz 4:2:2 36 bit
60 Hz 4:2:0 24 bit
2560x1600 WQXGA 60 Hz 4:4:4 36 bit
1920x1080 HD 1080p 60 Hz 4:4:4 36 bit
NOTES:
  • Custom resolutions are supported at pixel clock rates up to 300 MHz.
  • Interlaced video sources are not supported.

Scaler Output Resolutions, HDMI
Auto (EDID preferred), 1280x720p@50Hz (720p50), 1280x720p@60Hz (720p60), 1920x1080i@25Hz (1080i25), 1920x1080i@30Hz (1080i30), 1920x1080p@30Hz (1080p30), 1920x1080p@25Hz (1080p25), 1920x1080p@24Hz (1080p24), 1920x1080p@50Hz (1080p50), 1920x1080p@60Hz (1080p60), 3840x2160p@24Hz, 3840x2160p@25Hz, 3840x2160p@30Hz, 4096x2160p@24Hz, 4096x2160p@25Hz, 4096x2160p@30Hz, 3840x2160p@50Hz, 3840x2160p@60Hz, 4096x2160p@50Hz, 4096x2160p@60Hz

Audio, General
Switcher/Mixer 6x2 audio mixer
Audio Inputs Two stereo 2-channel LINE inputs
Two mono 1-channel MIC inputs
One mono 1-channel AUX input
One stereo 2-channel LPCM audio extracted from the selected HDMI or DM Lite input source
Audio Outputs One mirrored AUX 1, SPEAKER, and HDMI mixer output, stereo 2-channel
One AUX 2 output, stereo 2-channel
Analog-to-Digital Conversion 24-bit 48 kHz
Digital-to-Analog Conversion 24-bit 48 kHz
Frequency Response, Analog Audio Outputs 20 Hz to 20 kHz ±0.5 dB (AUX outputs)
20 Hz to 20 kHz @ full power ±3 dB (speaker output)
S/N Ratio, Analog Audio Outputs >95 dB @ 10 dBV, 20 Hz to 20 kHz, A-weighted (AUX outputs)
>90 dB @ 10 dBV, 20 Hz to 20 kHz, A-weighted (speaker output)
THD+N, Analog Audio Outputs <0.005% @ 1 kHz and 10 dBV (AUX outputs)
<0.3% @ 1 kHz and 10 dBV (speaker output)
Stereo Separation, Analog Audio Outputs 20 Hz to 20 kHz ≤80 dB (AUX outputs)
20 Hz to 20 kHz ≤60 dB (speaker output)

Audio, Microphone Inputs
Two balanced 1-channel microphone inputs (MIC 1 and MIC 2)
Input Signal Type Mono analog
Phantom Power +48 VDC, 12 mA, enable or disable per channel
Gain 0 dB to +60 dB per channel in 1 dB increments
Mute Enable or disable per channel

Audio, Line Inputs
Two balanced/unbalanced 2-channel line inputs (LINE 1 and LINE 2)
Input Signal Type Stereo analog
Balanced Line Input Level 4 Vrms
Unbalanced Line Input Level 2 Vrms
Line Input Impedance >10k ohms

Audio, Auxiliary Input
One balanced 1-channel auxiliary input (AUX):
Input Signal Type Mono analog
Balanced Line Input Level 4 Vrms
Line Input Impedance >10k ohms

Audio, Source Inputs
Two HDMI and three DM Lite inputs (HDMI 1-2 and DM Lite 3-4):
Input Signal Types HDMI (Dual-Mode DisplayPort interface compatible), DM Lite
Digital Formats 2-channel LPCM

Audio Outputs
One mirrored SPEAKER, HDMI, and balanced/unbalanced AUX 1 mixer output:
Output Signal Type/Format Stereo 2-channel
AUX 1 Output Impedance 200 ohms balanced, 100 ohms unbalanced
AUX 1 Maximum Output Level 4 Vrms balanced, 2 Vrms unbalanced
Selected Source -80 dB to +20 dB level adjustment range plus Mute
MIC 1-2 -80 dB to +20 dB level adjustment range plus Mute
LINE 1-2 -80 dB to +20 dB level adjustment range plus Mute
AUX -80 dB to +20 dB level adjustment range plus Mute
Master Volume -80 dB to +20 dB level adjustment range plus Mono
Amplifier Output Power 25 W RMS per channel @ 8 ohms, 4 ohms tolerant
Amplifier Power On or off
Mute Enable or disable independently for AUX 1, SPEAKER, and HDMI mixer output
One balanced/unbalanced AUX 2 output:
Output Signal Type/Format Stereo 2-channel
Output Impedance 200 ohms balanced, 100 ohms unbalanced
Maximum Output Level 4 Vrms balanced, 2 Vrms unbalanced
Selected Source -80 dB to +20 dB level adjustment range plus Mute
MIC 1-2 -80 dB to +20 dB level adjustment range plus Mute
LINE 1-2 -80 dB to +20 dB level adjustment range plus Mute
AUX -80 dB to +20 dB level adjustment range plus Mute
Master Volume -80 dB to +20 dB level adjustment range plus Mono
Mute Enable or disable for AUX 2

Communications
Ethernet 100/1000 Mbps, auto-switching, auto-negotiating,
auto-discovery, full/half duplex, CIP, DHCP, web browser setup
and control
RS-232 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking
IR 1-way device control via infrared up to 60 kHz
HDMI HDCP 2.2, EDID, CEC
DM Lite HDCP 2.2, EDID

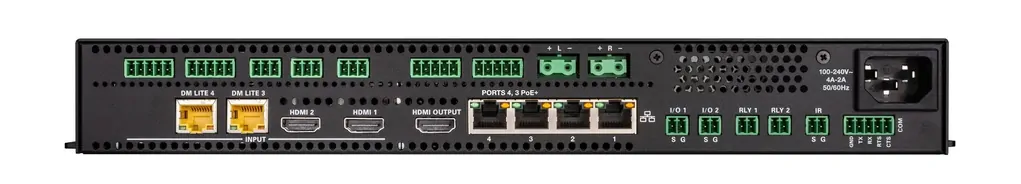

Connectors
L/R, LINE INPUT 1-2 (2) 5-pin 3.5 mm detachable terminal blocks
MIC INPUT 1-2 (2) 3-pin 3.5 mm detachable terminal blocks
AUX INPUT (1) 3-pin 3.5 mm detachable terminal block
HDMI INPUT 1 – 2 (2) HDMI Type A connectors, female;
HDMI digital video/audio inputs;
DVI and Dual-Mode DisplayPort interface compatible3
DM Lite INPUT 3-4 (3) 8-pin RJ-45 yellow connectors, female, shielded;
DM Lite input ports for connection to DM Lite transmitters
L/R, AUX OUT 1-2 (2) 5-pin 3.5 mm detachable terminal blocks
HDMI OUTPUT (1) HDMI Type A connector, female;
HDMI digital video/audio output;2
DVI compatible4
NOTE: CEC over the HDMI output provides Power On/Off control of the display device without a control system or full programmable control of any device with a control system.
Ethernet 1-4 (4) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet ports;
Ports 3-4: PoE+ Power Sourcing Equipment (PSE) outputs,
IEEE 802.3at Type 2 PoE+ Class 4 (25.5 W) compliant
SPEAKER OUTPUT (2) 2-pin 7.62 mm reversed gender 20 A detachable terminal blocks, power amplifier outputs;
Wire Size: Terminals accept up to 12 AWG (3.31 mm);
Output is direct-coupled—not transformer isolated
I/O 1-2 (2) 2-pin detachable terminal blocks;
Comprises 2 Versiport digital input/output or analog input ports (referenced to GND);
Digital Input: Rated to 0-24 VDC, input impedance 20k ohms, logic threshold >3.125 V low/0 and <1.875 V high/1;
Digital Output: 250 mA sink from maximum 24 VDC, catch diodes for use with real world loads;
Analog Input: Rated for 0-10 VDC, protected to 24 VDC maximum, input impedance 21k ohms with pull-up resistor disabled;
Programmable 5 V, 2k ohms pull-up resistor per pin
RLY 1-2 (2) 2-pin detachable terminal blocks;
Comprise 8 normally open, isolated relays;
Rated 1 A, 30 VAC/VDC;
MOV arc suppression across contacts
IR (1) 2-pin 3.5 mm detachable terminal block;
IR output control port; supports IR up to 60 kHz;
IRP2 emitter sold separately
NOTE: The IR port provides Power On/Off control of the display device with the use of a control system.
COM (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Supports RS-232 up to 115.2k baud with hardware and software
handshaking
NOTE: The COM port provides Power On/Off control of the display device without a control system or full programmable control of any device with a control system.
100-240V 4A-2A 50/60 Hz (1) IEC 60320 C14 mains power inlet:
Mates with removable power cord, included
NOTE: This power connection powers both the HD-RX-4K-410-C-E-SW4 and all connected DM Lite transmitters. When connected to the HD-RX-4K-410-C-E-SW4, DM Lite transmitters must not be connected to power.
SERVICE (1) USB Type A connector, female;
For factory use only

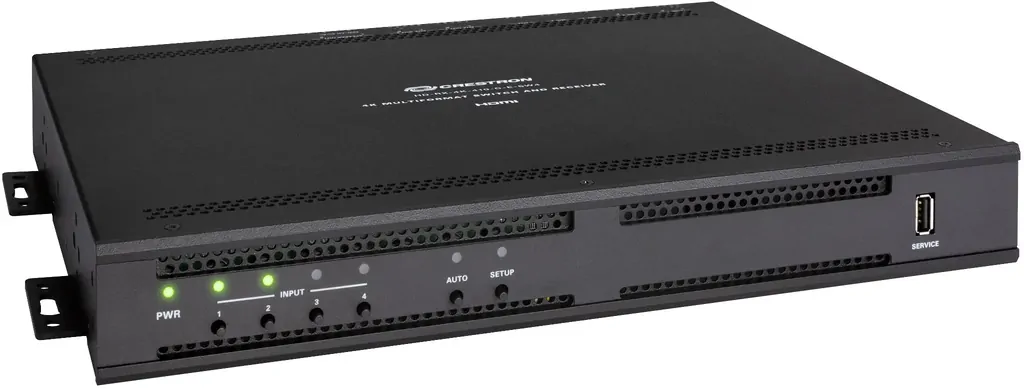

Controls and Indicators
PWR (1) LED, indicates that power is being applied to the HD-RX-4K-410-C-E-SW4. Amber indicates that the device is booting. Green indicates that the device is operational.
INPUT 1-4 (4) Push buttons for manual input selection and (4) LEDs. Green indicates that video is switched. Amber indicates that video is detected but is not switched.
AUTO (1) Push button to enable or disable automatic switching, and (1) green LED to indicate that automatic switching is enabled
SETUP (1) Red LED and (1) push button for display of IP address on the HDMI output
DM Lite (2) LEDs on RJ-45 connector. Green indicates that a DM Lite link is established. Flashing amber indicates non-HDCP video and solid amber indicates HDCP video.
Ethernet (2) LEDs on RJ-45 connector. Green indicates that an Ethernet link is established. Flashing amber indicates Ethernet activity.
Power
Mains Power 4 A - 2 A @ 100-240 VAC, 50/60 Hz
NOTE: The AC mains power connection powers both the HD-RX-4K-410-C-E-SW4 and all connected DM Lite transmitters. When connected to the HD-RX-4K-410-C-E-SW4, DM Lite transmitters must not be connected to power.

Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (non-condensing)

Enclosure
Chassis Metal, black finish, vented sides, 2 mounting flanges attached
Mounting Surface mount

Dimensions
Height 10.22 in (260 mm)
Width 14.18 in (361 mm) with mounting flanges attached
Depth 1.74 in (45 mm)

Compliance
UL® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device
  1. For DM Lite connections, use Crestron DM-CBL-8G, Crestron DM-CBL-ULTRA, or third-party CAT5e or higher cable. To safeguard against unpredictable environmental electrical noise that may impact performance at resolutions above 1080p, shielded cable and connectors are recommended for all applications and are required when bundling multiple cables in a wire run. Wire and cables sold separately. DM Lite ports are not compatible with DigitalMedia 8G+®, HDBaseT®, PoE, or PoDM technology or any other type of CATx based interface or network.
  2. For information about compatibility of the HDMI output with Crestron HDMI extenders, refer to Online Help Answer ID 1000503 on the Crestron website (www.crestron.com).
  3. The HDMI input requires an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HDI-DVI interface cables are available separately.
  4. The HDMI output requires an appropriate adapter or interface cable to accommodate a DVI signal. CBL-HDI-DVI interface cables are available separately.
SKU HD-RX-4K-410-C-E-SW4-OB
Barcode # 634607096793
Brand Crestron
Brand Crestron
Type Video Extender
Model HD-RX-4K-410-C-E-SW4
Shipping Cubic 0.016236000m3
