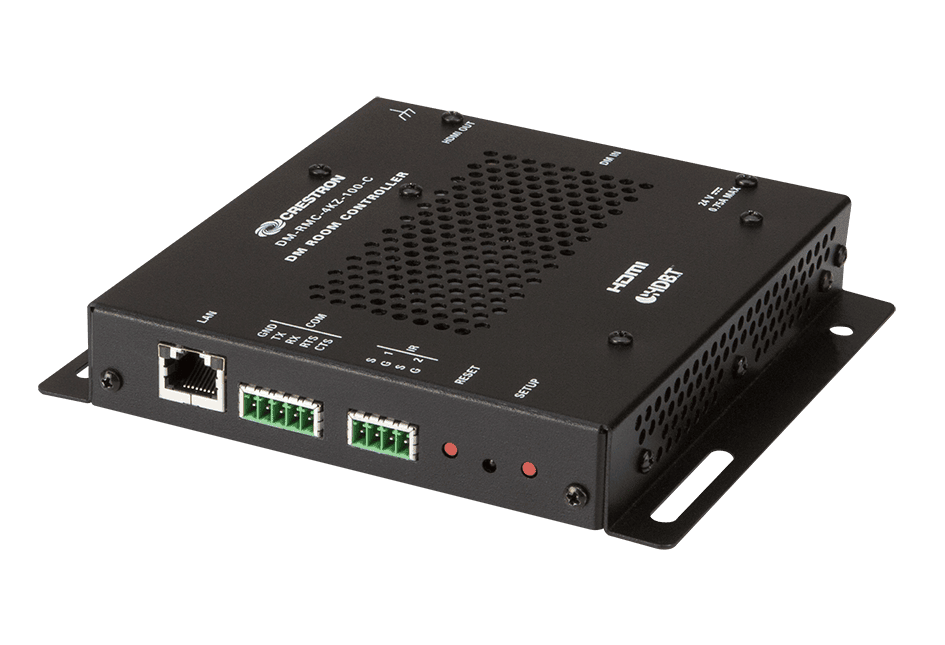

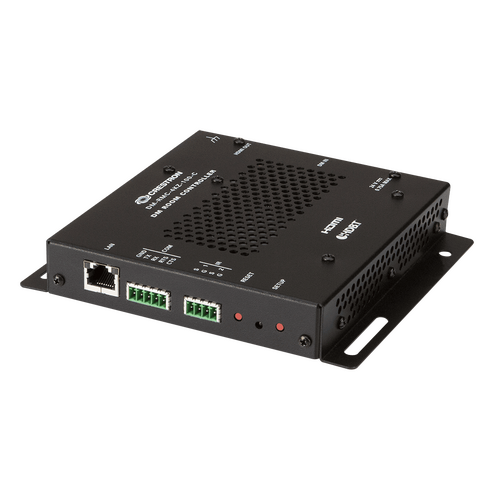

DigitalMedia 8G+® 4K60 4:4:4 HDR Receiver & Room Controller 100

Provides a controller and interface for an HD or 4K display device as part of a complete DigitalMedia™ System. Supports 4K60 4:4:4 and HDR video signals. Connects to the DM 8G+® output of a DM® Switcher or Transmitter via a single CATx cable. Includes IR, RS-232, and Ethernet control ports.

Key Features

  • DigitalMedia 8G+® receiver and display controller
  • Connects to a DM® switcher or transmitter over a single CAT type twisted pair cable
  • HDBaseT® compatible — Enables direct connection to other HDBaseT certified equipment
  • Provides one HDMI® or DVI display output
  • Handles UHD and 4K video resolutions up to 4K60 4:4:4
  • Handles HDR (High Dynamic Range) video (HDR10)
  • Handles 3D video and Deep Color
  • Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
  • HDCP 2.2 compliant
  • Supports cable lengths up to 330 ft (100 m) for all resolutions up to UHD and 4K using DM Ultra cable
  • Supports cable lengths up to 330 ft (100 m) for 1080p, WUXGA, and 2K using DM 8G® cable or CAT5e
  • Supports cable lengths up to 230 ft (70 m) for UHD and 4K using DM 8G cable, or 165 ft (50 m) using CAT5e
  • Provides a 10/100 Ethernet LAN connection
  • Enables device control via CEC, IR, RS-232, and Ethernet
  • Compatible with Crestron® USB over Ethernet Extenders
  • Allows quick, easy setup and diagnostics
  • Low-profile surface mount design
  • Powered via the DM connection or optional power pack (sold separately)

(DM-RMC-4KZ-100-C-OB)

Video

Input Signal Types DM 8G+ & HDBaseT w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support
Output Signal Types HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support (DVI compatible)
Copy Protection HDCP 2.2
Maximum Resolutions
Scan
Type
Resolution Frame
Rate
Color
Sampling
Color
Depth
Progressive 4096x2160 DCI 4K
&
3840x2160 4K UHD
24 Hz 4:4:4 36 bit
30 Hz 4:4:4 36 bit
60 Hz 4:2:2 36 bit
60 Hz 4:4:4 24 bit
2560x1600 WQXGA 60 Hz 4:4:4 36 bit
1920x1080 HD 1080p 60 Hz 4:4:4 36 bit
Interlaced 1920x1080 HD 1080i 30 Hz 4:4:4 36 bit

NOTE: Custom resolutions may be supported at pixel clock rates up to 600 MHz*.
*Due to DSC codec limitations, only 4K60 and 4K50 resolutions can be supported at pixel clock rates between 300-600MHz. For detailed information, refer to Online Help Answer ID 1001200.

Audio

Input Signal Types DM 8G+, HDBaseT
Output Signal Type HDMI
Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels

Communications

Ethernet 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP
RS-232 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system)
IR/Serial 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 Volts) up to 19.2k baud (via control system)
DigitalMedia DM 8G+, HDCP 2.2, EDID, CEC, PoDM, Ethernet
HDBaseT HDCP 2.2, EDID, CEC, RS-232, PoE, Ethernet
HDMI HDCP 2.2, EDID, CEC
NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI device and a control system

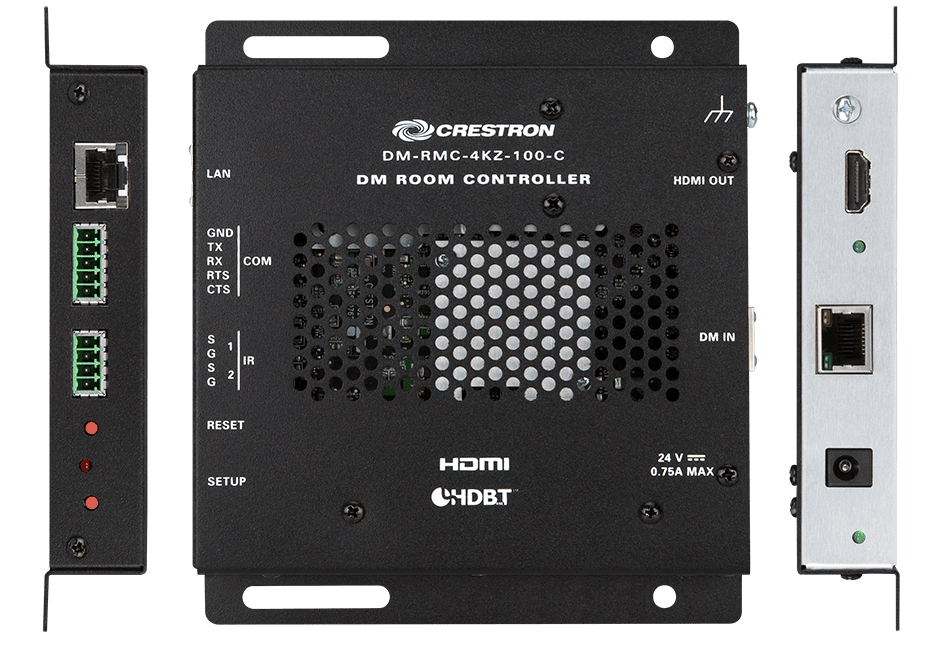

Connectors

LAN (1) 8-pin RJ45 connector, female, shielded;
10Base-T/100Base-TX Ethernet port
COM (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud, hardware and software handshaking support
IR 1 – 2 (1) 4-pin 3.5 mm detachable terminal block;
Comprises (2) IR/Serial ports;
IR output up to 1.1 MHz;
1-way serial TTL/RS-232 (0-5 Volts) up to 19200 baud
24VDC 0.75A MAX (1) 2.1 x 5.5 mm DC power connector;
24 Volt DC power input;
PW-2407WU power pack (optional, sold separately)
DM IN (1) 8-pin RJ45 connector, female, shielded;
DM 8G+ input, HDBaseT compliant;
PoDM PD port (HDBaseT PoE compatible);
Connects to the DM 8G+ output of a DM switcher, transmitter, or other DM device, or to an HDBaseT device, via CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA cable
HDMI OUT (1) HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible)
Ground (1) 6-32 screw;
Chassis ground lug

Controls & Indicators

LAN (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
RESET (1) Recessed pushbutton, for hardware reset
SETUP (1) Red LED and (1) recessed pushbutton, for Ethernet setup
24VDC (1) Green LED, indicates operating power supplied via PoDM, HDBaseT PoE, or optional local power pack
DM IN (2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence
HDMI OUT (1) Green LED, indicates video signal presence at the HDMI output

Power

Power over DM (PoDM) IEEE 802.3at Type 1 Class 0 (12.95 W) compliant PoDM PD (Powered Device), capable of being powered by a PoDM PSE (Power Sourcing Equipment)
Power over HDBaseT IEEE 802.3at Type 1 Class 0 (12.95 W) compliant HDBaseT PoE PD (Powered Device), capable of being powered by an HDBaseT PoE PSE (Power Sourcing Equipment)
Power Pack (Optional) Input: 100-240 Volts AC, 50/60 Hz;
Output: 0.75 Amps @ 24 Volts DC;
Model: PW-2407WU (sold separately)


Environmental

Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (non-condensing)

Enclosure

Chassis Metal, black finish, with (2) integral mounting flanges; vented front, top, and bottom
Mounting Freestanding, surface mount, or attach to a single rack rail

Dimensions

Height 6.09 in (155 mm)
Width 5.63 in (143 mm)
Depth 1.08 in (28 mm)

Weight

16.5 oz (468 g)

Compliance

UL Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device

Maximum Cable Lengths



Resolution
Cable Type
DM-CBL-ULTRA
DigitalMedia™ Ultra Cable
DM-CBL-8G
DigitalMedia 8G™ Cable
CAT5e
(or better)
1920x1080 FHD 1080p 330 ft (100 m) 330 ft (100 m) 330 ft (100 m)
1920x1200 WUXGA
1600x1200 UXGA
2048x1080 DCI 2K
2048x1152 QWXGA
2560x1080 UWFHD 230 ft (70 m) 165 ft (50 m)
2560x1440 WQHD
2560x1600 WQXGA
3840x2160 4K UHD
4096x2160 DCI 4K
SKU DM-RMC-4KZ-100-C-OB
Barcode # 608539209651
Brand Crestron
Brand Crestron
Type Video Extender
Model DM-RMC-4KZ-100-C
Shipping Cubic 0.017794000m3
