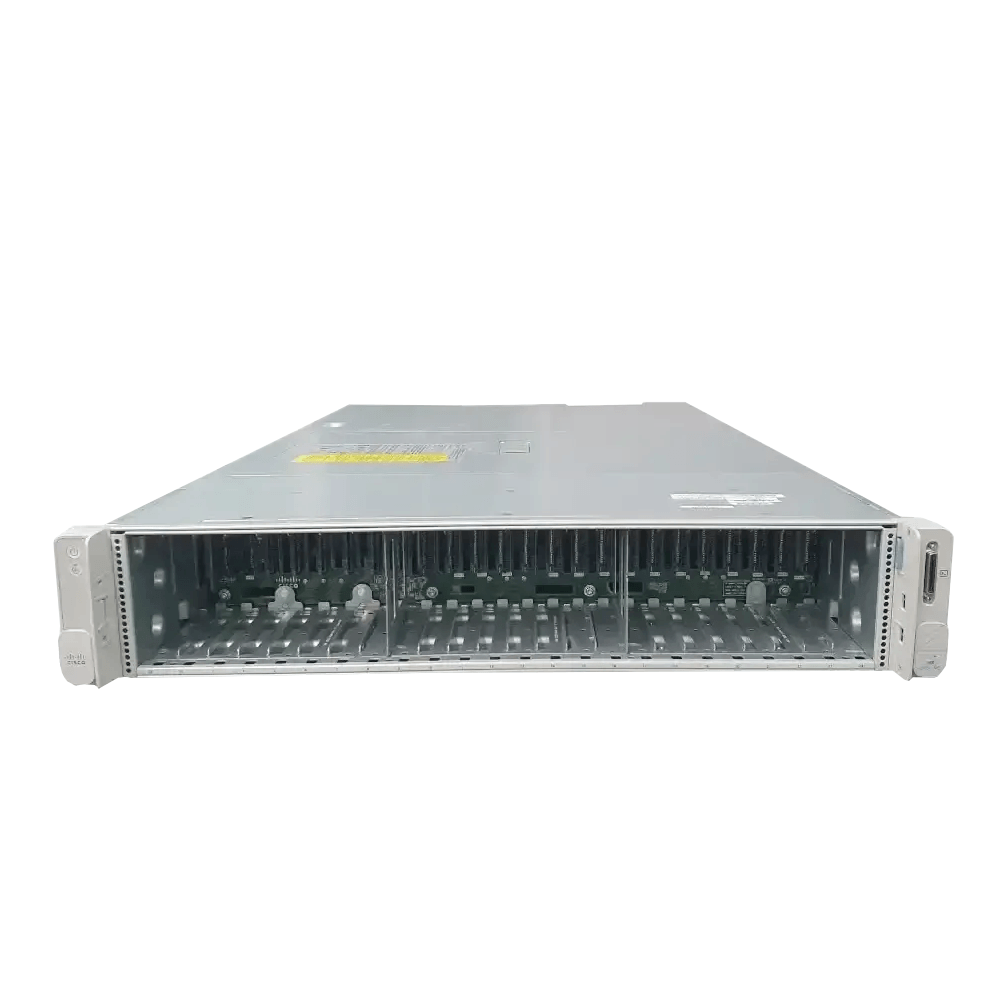

An enterprise-class, 2-socket, 2-Rack-Unit (2RU) server designed to deliver industry-leading performance, versatility, and expandability. It is purpose-built to handle a wide range of storage and I/O-intensive infrastructure workloads. The M5SX designation specifically refers to the expanded drive-bay model, supporting up to 26 Small Form Factor (SFF) 2.5-inch drives (24 front-accessible drives + 2 optional rear-accessible drives).  It is ideal for data-intensive applications such as virtualization, big data analytics, enterprise databases, and high-performance storage clusters.


Key Capabilities & Architecture

  • Processing: Powered by the Intel® Xeon® Scalable processors, delivering up to 20% more cores per socket compared to previous generations.

  • Massive Memory Footprint: Features 24 DDR4 DIMM slots (12 DIMMs per socket), supporting a total capacity of up to 3.0 TB of high-speed memory (or up to 6.0 TB when utilizing Intel® Optane™ Persistent Memory).

  • High-Density Storage: Supports up to 26 SFF drives (24 front + 2 rear), delivering massive local storage density in a 2U chassis and eliminating the need for external JBOD expansion in medium-scale deployments.

  • Onboard I/O: Comes equipped with built-in dual 10GbBase-T Ethernet LAN ports on the motherboard alongside a dedicated 1GbE management port.

  • Advanced Remote Management: Includes integrated support for the Cisco Integrated Management Controller (CIMC). CIMC provides secure, web-based, out-of-band remote management, system monitoring, and diagnostics from anywhere, significantly reducing operational overhead.

(CiscoC240M5Gold62261-r)

Product

Power Cable

Brand Cisco
Model C240 M5SX (HX Branded)
Form Factor 2RU Rackmount
Bays 24 Front 2.5", 2 Rear 2.5" PCIe
Processor 2x Xeon Gold 6226 2.7Ghz 12C
Memory 64GB (4x 16GB PC4-2666V)
Storage None (No Caddies, No Blanks)
Raid Controller UCSC-SAS-M5HD (HBA)
Remote Acess CIMC
Networking Onboard RJ45, UCSC-MLOM-C40Q-03
PCIe Slots 6x High Profile
Adapter Cards None
Power Supply 2x 1600W
Rails None
Bezel None
Operating System None
Dimensions 86.4x 740.3x 429.0 mm (3.4x 29.5x 16.9 inches, without bezel)
Weight 26 Kg
Other Features Rear 2.5" PCIe bay - not for SAS
Notes
SKU CiscoC240M5Gold62261-r
Barcode # 634607423483
Brand Cisco
Brand Cisco
Form Factor 2RU Rackmount
Type Server
Series UCS
RAM Size 64 GB
Storage Capacity None (No Caddies, No Blanks)
Processor Speed 2.70 GHz
Model C240 M5SX (HX Branded)
Bays 26x 2.5"
DIMMs Installed 4x 16GB PC4-2666V
Remote Access Management CIMC
RAID Controller UCSC-SAS-M5HD (HBA)
Power Supply 2x 1600W
Network Connectivity Wired-Ethernet RJ-45
Processor Sockets 2
Processor Thermal Design Power 125 W
Processor Cores 12
Processor Threads 24
UPC 634607423483
Processor Type 2x Intel Xeon Gold 6226
Memory Type DDR4 ECC-Registered
Shipping Cubic 0.105020000m3
