A versatile, high-density 1U enterprise rack server designed to handle demanding workloads, including cloud computing, virtualization, enterprise analytics, and high-performance database applications. Building on the previous generation, it supports up to two 1st or 2nd Generation Intel Xeon Scalable processors (up to 28 cores per socket) and 24 DIMM slots for up to 3TB of DDR4 RAM or up to 9TB using Intel Optane Persistent Memory.

Key Capabilities & Architecture

Processing:  Supports up to two 1st or 2nd Generation Intel Xeon® Scalable processors, delivering up to 20% more cores per socket compared to previous generations.

Massive Memory Footprint: Features 24 DDR4 DIMM slots (12 DIMMs per socket), supporting a total capacity of up to 3.0 TB of high-speed memory (or up to 9.0 TB using Intel Optane Persistent Memory).

10-Drive Storage Backplane: The "SX" variant features an expanded 10-bay small form-factor (SFF) SAS/SATA backplane. Drive bays 1 and 2 are hybrid slots that can accommodate direct-attach NVMe PCIe SSDs alongside standard SAS/SATA SSDs/HDDs.

Integrated Boot Options: Supports dedicated dual M.2 boot options (including a Cisco Boot-Optimized M.2 RAID Controller) or internal SD card modules for OS mirroring without using primary drive bays.

Onboard I/O: Comes equipped with built-in dual 10GbBase-T Ethernet LAN ports on the motherboard alongside a dedicated 1GbE management port.

Advanced Remote Management: Includes integrated support for the Cisco Integrated Management Controller (CIMC). CIMC provides secure, web-based, out-of-band remote management, system monitoring, and diagnostics from anywhere, significantly reducing operational overhead.

(CiscoC220M5Silver41101-r)

Product

Power Cable

Brand Cisco

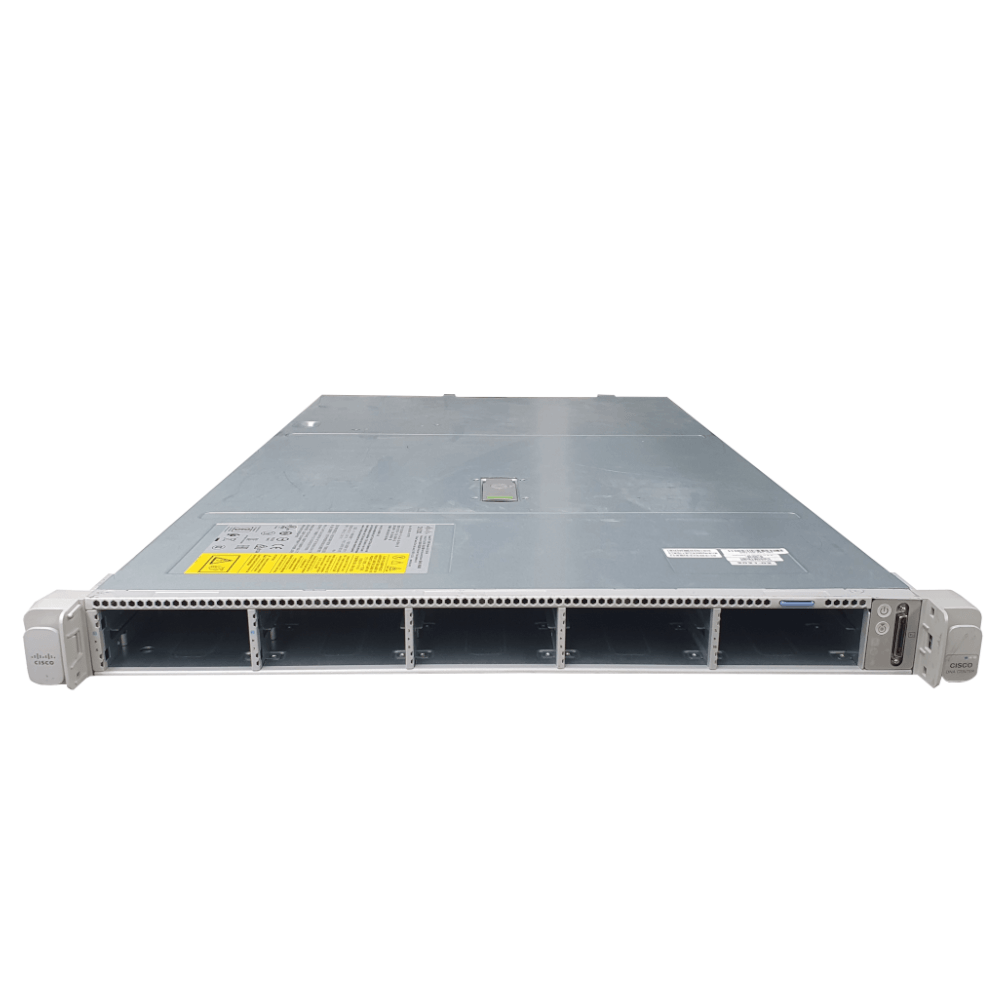

Model C220 M5SX (SE/ DNA Branded)
Form Factor 1RU Rackmount
Bays 10x 2.5"
Processor 2x Xeon Silver 4110 2.1Ghz 8C
Memory 64GB (4x 16GB PC4-2133P)
Storage No HDD *¹
Raid Controller UCSC-RAID-M5 (Cache, No Battery)
Remote Acess CIMC
Networking Onboard 10G RJ45
PCIe Slots 1x Low Profile, 1x High Profile *²
Adapter Cards None
Power Supply 2x 770W
Rails None
Bezel None
Operating System None
Dimensions 43.2x 756x 482 mm (1.7x 29.8x 18.98  inches, without bezel)
Weight 26 Kg
Other Features TPM 2.0
Notes *¹  Missing HDD blank covers

*²  Missing PCIe blank covers
SKU CiscoC220M5Silver41101-r
Barcode # 634607473839
Brand Cisco
Brand Cisco
Form Factor 1RU Rackmount
Type Server
Series UCS
RAM Size 64 GB
Processor Speed 2.10 GHz
Model C220 M5SX
DIMMs Installed 4x 16GB PC4-2133P
Drive Bays 10 Bay 2.5"
Remote Access Management CIMC
RAID Controller UCSC-RAID-M5
Power Supply 2x 770 W
Network Connectivity Wired-Ethernet (RJ-45, SFP+)
Processor Cores 8
UPC 634607473839
Processor Type 2x Intel Xeon Silver 4110
Memory Type DDR4 ECC-Registered
Shipping Cubic 0.105020000m3
