A high-density, 2-socket, 1-Rack-Unit (1RU) enterprise rack server designed to deliver industry-leading performance, efficiency, and high availability for space-constrained environments. It is purpose-built to handle a wide range of general-purpose enterprise infrastructure and application workloads, including virtualization, collaboration, database management, and bare-metal applications.

Key Capabilities & Architecture

Processing:
Powered by 1st and 2nd Generation Intel® Xeon® Scalable processors, delivering up to 20% more cores per socket and significantly higher computing capabilities compared to previous generations.

High-Density Memory Footprint: Features 24 DDR4 DIMM slots (12 DIMMs per socket) supporting up to 3.0 TB of standard system memory, or up to 9.0 TB of total memory capacity when combining traditional DDR4 DIMMs with Intel® Optane™ Persistent Memory (PMem) modules.

Flexible Storage Architecture (M5SX Model): Equipped with up to 10 front-pluggable Small-Form-Factor (SFF) 2.5-inch drive bays (supporting SAS/SATA HDDs and SSDs, It also features a dedicated internal slot for a 12-Gbps modular RAID controller without consuming standard PCIe expansion slots.

Advanced Remote Management: Includes integrated support for the Cisco Integrated Management Controller (CIMC). CIMC provides secure, web-based, out-of-band remote management, continuous system monitoring, and hardware diagnostics from anywhere, minimizing administrative overhead.

Flexible Deployment & Networking: Features dual embedded 10GBASE-T LOM ports alongside a dedicated modular LAN-on-motherboard (mLOM) slot for Cisco Virtual Interface Cards (VICs) without using up valuable PCIe slots. It can be deployed as a standalone server or seamlessly integrated into a Cisco Unified Computing System (Cisco UCS) managed architecture to lower Total Cost of Ownership (TCO) and maximize business agility.

(CiscoC220M5Silver41141-r)

Product

Power Cable

Brand Cisco

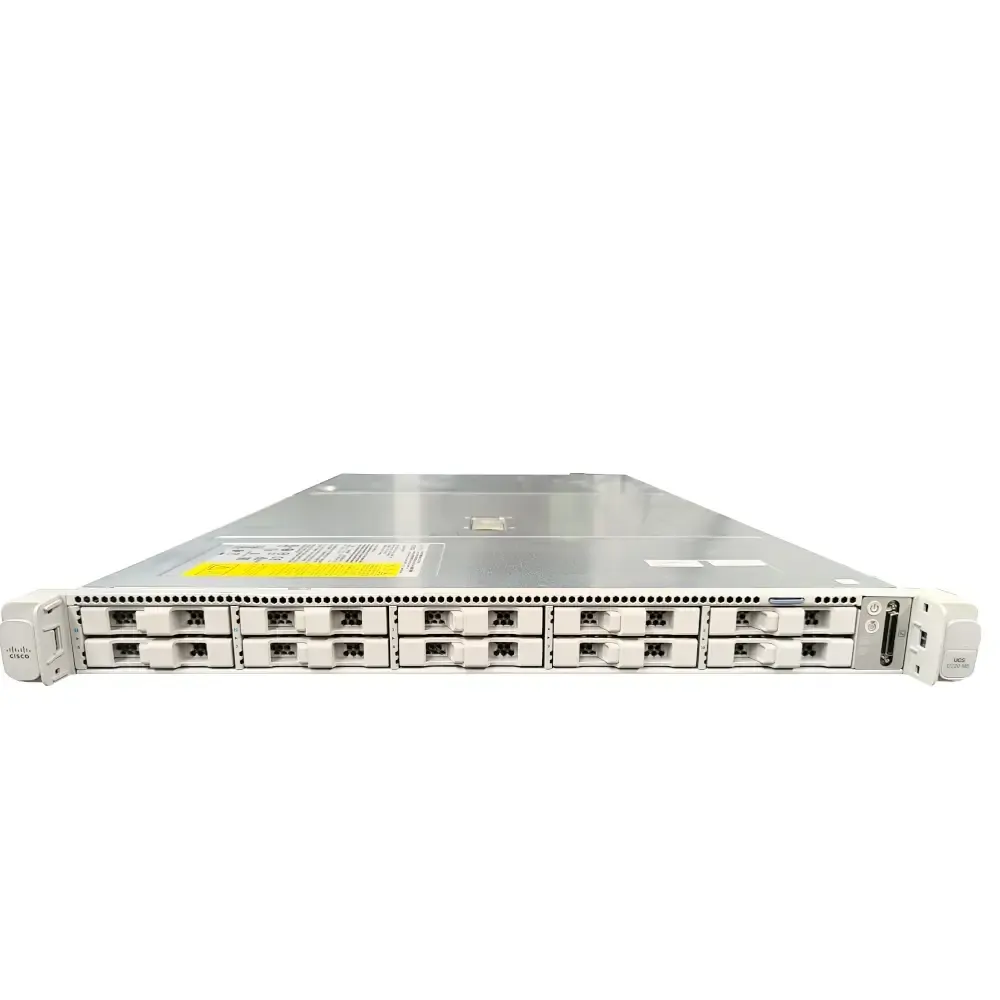

Model UCS C220 M5SX
Form Factor 1U Rackmount
Bays 10x 2.5" *¹
Processor 2x Xeon Silver 4114 2.2Ghz 10C
Memory 192GB (12x 16GB PC4-2666V)
Storage No HDD (No Caddies)
Raid Controller Onboard SATA
Remote Acess CIMC
Networking ▪ Onboard RJ45
▪ 4P 10/25G SFP28 mLOM (2x 10G SW SFPs)
PCIe Slots 1x Low, 1x High Profile
Adapter Cards None
Power Supply 2x 770W
Rails None
Bezel None
Operating System None
Dimensions 482.1x 786.9x 43.2 mm (19.0x 31.0x 1.7 inches, without bezel)
Weight 17 Kg
Other Features TPM 1.2
Notes *¹  8 bays connected for SATA only
    (two extra bays not connected)
SKU CiscoC220M5Silver41141-r
Barcode # 615678598034
Brand Cisco
Brand Cisco
Form Factor 1RU Rackmount
Type Server
Series UCS
RAM Size 192 GB
Processor Speed 2.20 GHz
Model UCS C220 M5SX
DIMMs Installed 12x 16GB PC4 2666V
Drive Bays 10x 2.5" (8x SATA Only, 2x Not connected)
Remote Access Management CIMC
RAID Controller Onboard SATA
Power Supply 2x 770W
Network Connectivity Wired-Ethernet (RJ-45, SFP+)
Processor Cores 10
UPC 615678598034
Processor Type 2x Intel Xeon Silver 4114
Memory Type DDR4 ECC-Registered
Shipping Cubic 0.105020000m3
