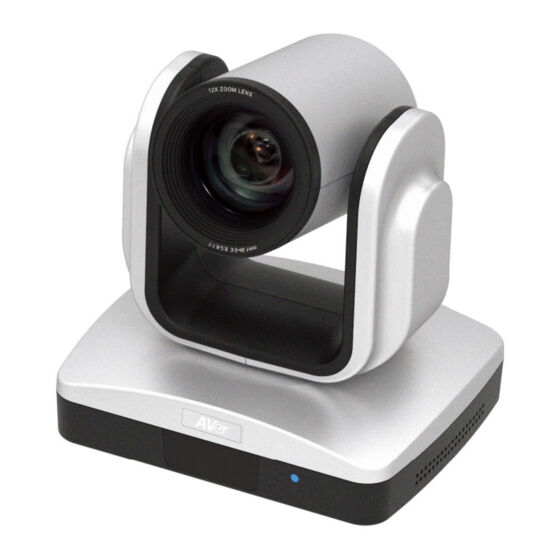

The CAM520 12x USB PTZ Conference Camera from AVer is a professional-grade USB PTZ camera optimized to deliver video communication experience. It features a 12x optical zoom that delivers smooth pan, tilt, and zoom-in performance to capture the smallest details with clarity at every focal length.

The CAM520 allows you to customize your meetings by storing up to 10 PTZ presets. Each preset can be easily accessed with one touch of the remote, saving time and providing flexibility to swiftly move to predetermined locations in the conference room. With advanced integration capabilities built into the camera, including an RS-232 port and VISCA support, the system can easily be integrated into a controlled environment allowing you to operate and manage the CAM520 through an AV control panel. You can choose the audio subsystem you want to use for your video conferencing calls, webinars, streaming, or broadcast meetings.

1920 x 1080 resolution with 12x optical zoom to capture the smallest details with clarity at every focal length

Customize your meetings by storing up to 10 PTZ presets; each preset can be easily accessed with one touch of the remote, saving you time and providing flexibility to swiftly move to predetermined locations in the conference room

With advanced integration capabilities including an RS-232 port and VISCA support, the system can easily be integrated into a controlled environment allowing you to operate and manage the camera through an AV control panel

Choose the audio subsystem you want to use for your video conferencing calls, webinars, streaming, or broadcast meetings

USB 2.0 UVC video and audio for broad application compatibility

Application compatibility: Skype, Skype for Business, Blue Jeans, ZOOM, Microsoft Lync, Google Hangout, Cisco WebEx, GoToMeeting, WebRTC, Wirecast, vMix, XSplit, Adobe Connect



(V8U0D-NoPSU-R)

Sensor

1/2.8" progressive CMOS 2 MP

Frame Rate

1080p, 720p, 1024 x 576, 960 x 540, 848 x 480, 640 x 480, 640 x 360, 424 x 240, 320 x 240, 320 x 180

Lens

3.9 to 47.3mm
12x optical zoom

F-Stop

f/1.8 (wide) to 2.8 (tele)

White Balance

Auto; manual override by PTZapp using color temp

Auto Focus System

Minimum Working Distance: 3.2' (1 m)

Field of View

Up to 82° diagonal

S/N Ratio

> 50 dB

Minimum Illumination

3.5 lux (50 IRE, f/1.8, shutter 1/30)
2D and 3D noise reduction
Backlight compensation
Flip, mirror

Pan / Tilt

Pan: ±130°; 0.45° step
Tilt: +90° (up) -25° (down); 0.25° step
10 camera presets (through remote control), 100 (through VISCA & UVC)

Connectors

12 VDC power adapter
Micro-USB 2.0 Type-B connector
Mini DIN6 to RS-232 connection

Video Format

YUV, MJPEG, H.264

USB

UVC (USB Video Class) 1.1 with H.264 extension

Control

IR remote control
VISCA via RS-232
UVC
PTZapp

System Requirement

Windows 7/8/8.1/10
Mac OS X 10.7 or higher
Google Chromebook version
29.0.1547.70, Platform 4319.79.0

Hardware Specification

2.4 GHz Intel Core 2 Duo processor
2 GB RAM or more
Hard drive space for recorded videos
USB 2.0 port

Power Supply

100 to 240 VAC, 50/60 Hz

Power Consumption

EIAJ 12 VDC, 4 A

Operating Temperature

32 to 104°F (0 to 40°C)

Operating Humidity

20 to 80%

Storage Temperature

-4 to 140°F (-20 to 60°C)

Storage Humidity

20 to 80%

SKU V8U0D-NoPSU-R
Barcode # 615678892200
Brand AVer
Brand AVer
Type PTZ Camera
MPN V8U0D
Model CAM520
Shipping Cubic 0.036480000m3
