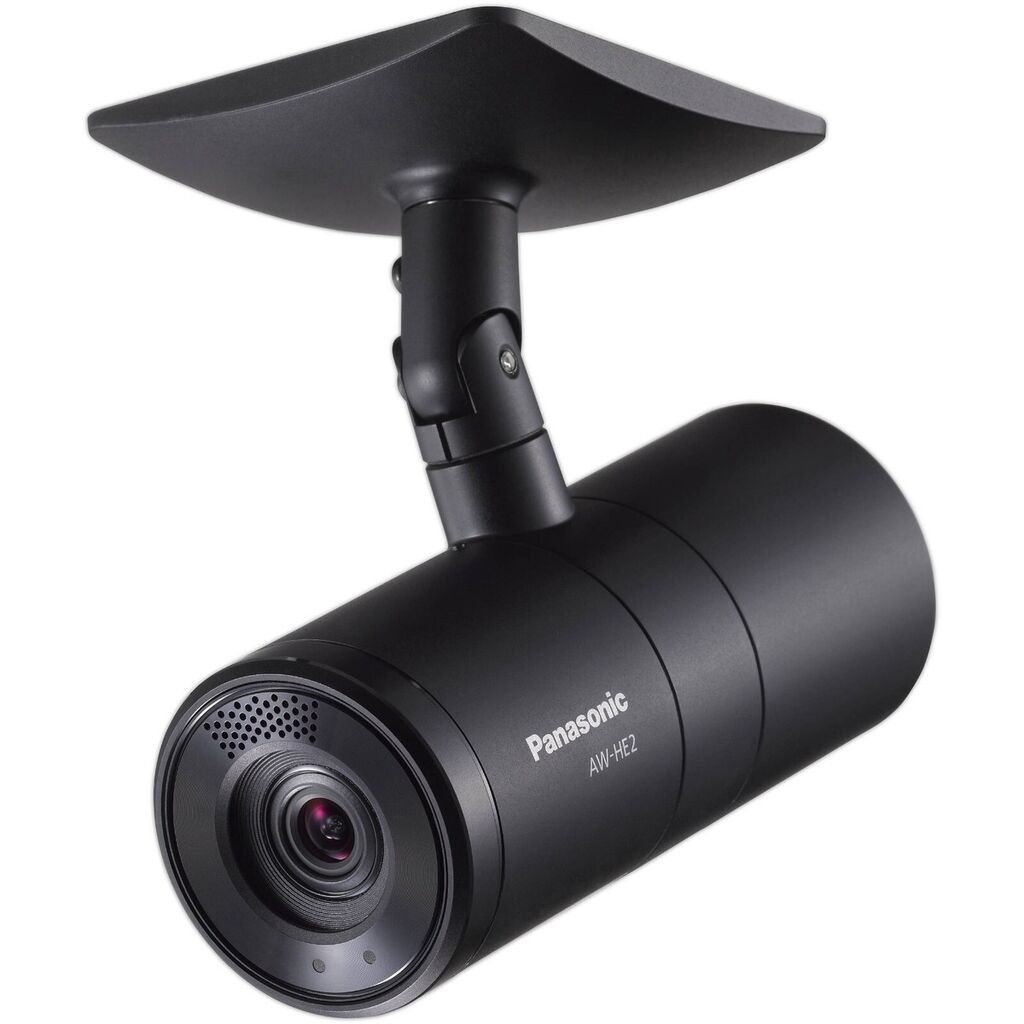

The Panasonic AW-HE2 Full HD Compact PTZ Camera incorporates a highly-accurate, non-mechanical Pan/Tilt/Zoom function that offers precise, fast, fluid movement in all directions. A new Panasonic 2X Super Resolution zoom function operates in conjunction with the digital P/T to provide crisp images of the selected area. The camera provides a wide horizontal angle of view of approximately 96 degrees.

With its Full HD (1920 x 1080) MOS sensors, the AW-HE2 captures 1080/60p (1080/59.94p) footage and a wide range of other formats. For live remote preview and control, the AW-HE2 delivers IP-preview MJPEG video imbedded in the camera’s browser control page, at resolutions up to 640x480 and frame rates of up to 30fps. The AW-HE2 supports both direct and Web-based IP remote control. Direct IP control is possible using Panasonic’s AW-RP50N (not included), as well as appropriately programmed systems from Crestron, AMX and other manufacturers (not included). The unit may also be controlled using an AW-RM50G wireless handheld IR remote (not included).

Features:

  • IP live video image monitoring for remote preview and control
  • Supports IP control via AW-RP50, computer with Browser, or 3rd party controllers
  • Compatible with the AW-RM50G wireless infrared remote
  • Picture-in-Picture functionality
  • (9) pre-set memories
  • Adjustable shutter speed, Auto Gain, white balance and back light compensation
  • Stereo microphone, stereo audio imbedded in HDMI output
  • Dimensions: 5" length with a diameter of approx. 2"
  • Weight: less than 9 oz
  • Table/wall/ceiling mount included, as well as a ¼-20 screw thread mount.
  • HDMI output provides: 1080/60P, 1080/50P, 1080/59.94i, 1080/50i (30P & 25P), and 720/60P and 720/50P
  • Horizontal Resolution: 850 Lines
  • DC Connector / USB Connector, A.C power supply included
  • Video Output Formats:
    • HD: 1080/59.94p, 1080/59.94i, 1080/50p,1080/50i, 720/59.94p, 720/50p
    • SD: 576/50p, 480/59.94p

(AW-HE2E-R)

Filter Specifics

Filter Density: 1/4 - 1/4.37

Inputs & Outputs

HDMI Output: HDMI Type A

USB: 1 x Micro-B terminal, power supply function - (power supplied from the USB terminal when there is no power provided from DC input terminal)

Audio I/O: 1 x Audio Output - HDMI, Linear PCM

Microphones

Microphone Type: Integrated - 2 ch. Stereo

Power

Power Input: DC - 5V

Sensor Specifics

Sensor Type: MOS

Camera

Camera Features: White Balance - ATW, AWB A, AWB B, Sunny, Cloudy, Indoor 1, Indoor 2, Fluorescent (TTL type)

Ethernet Interface: 10BASE-T, 100BASE-TX, RJ-45 - Automatic recognition of straight/crossover cable

Network Output Image - JPEG, 640 x 480 (640 x 360) or 320 x 240 (320 x 180), up to 30 fps (16:9 video is transmitted in the letter box format)

Shutter Speed Range: 1/60 to 1/12000 sec

SKU AW-HE2E-R
Barcode # 615678638860
Brand Panasonic
Brand Panasonic
Type PTZ Camera
Model AW-HE2E
Shipping Cubic 0.036480000m3
