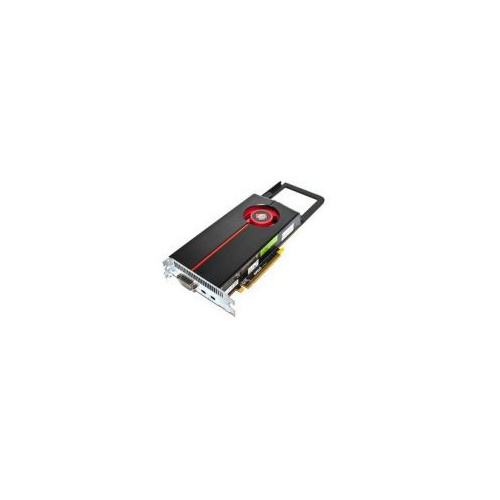

The Radeon HD 5770 was a mid-range graphics card by ATI, launched on October 13th, 2009. Built on the 40 nm process, and based on the Juniper graphics processor, in its Juniper XT variant, the card supports DirectX 11.2. The Juniper graphics processor is an average sized chip with a die area of 166 mm² and 1,040 million transistors. It features 800 shading units, 40 texture mapping units, and 16 ROPs. ATI has paired 1,024 MB GDDR5 memory with the Radeon HD 5770, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 850 MHz, memory is running at 1200 MHz (4.8 Gbps effective).



(ATIHD5770-639-0675-R)

GPU Memory 1 GB GDDR5
Memory Interface 128-bit
Memory Bandwidth 76.80 GB/s
Shading Units 800
System Interface PCI Express 2.0 x16
Max Power Consumption 108W
Thermal Solution Active
Form Factor Dual Slot
Display Connectors 2x Mini DisplayPort 1.1 1x DVI
Supported APIs DirectX® 11.2, OpenGL® 4.4, OpenCL™ 1.2, Shader Model 5.0
SKU ATIHD5770-639-0675-R
Barcode # 615678796881
Brand ATI
Brand ATI
Type Graphics Card
Chipset Manufacturer ATI
Memory Type GDDR5
Chipset/GPU Model Radeon HD 5770
Memory Size 1 GB
Shipping Cubic 0.017794000m3
