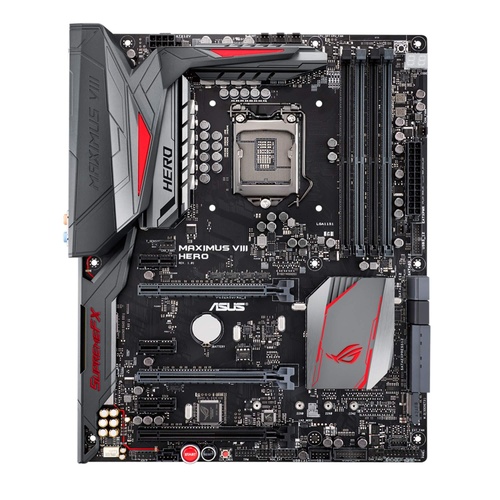

Includes ASUS ROG MAXIMUS VIII HERO Motherboard, Intel i7 6700K CPU, 16G RAM, Rear I/O panel.

Honed and optimized for perfectly-balanced enthusiast-grade gaming desktops

  • LGA1151 socket for 6th-gen Intel® Core™ desktop processors.
  • Dual DDR4 3733 (OC) support.
  • Best gaming performance – 5-Way Optimization with Auto-Tuning, 2nd-generation T-Topology and OC design
  • Best gaming audio – reinvented SupremeFX 2015 with intuitive Sonic Studio II.
  • Best gaming networking – best-in-class Intel® Gigabit Ethernet, LANGuard and GameFirst technology.
  • Best gaming protection – carefully-selected premium components to ensure maximum durability.
  • ROG gives you more – more gaming-oriented utilities, all free!


(AsusMaximusVIIIHero-R)

CPU

Intel® Socket 1151for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14nm CPU,Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset

Intel® Z170

Memory

4 x DIMM, Max. 64GB, DDR4 3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Maximum shared memory of 512 MB (for iGPU exclusively)
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz,Integrated Graphics Processor- Intel® HD Graphics support
- Supports HDMI with max. resolution 4096 x 2160 @ 24Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support

Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

2 x PCIe 3.0/2.0 x16 (x16 or dual x8, +gray)
1 x PCIe 3.0/2.0 x16 (x4 mode, +black)
3 x PCIe 3.0/2.0 x1

Storage

Intel® Z170 chipset :
1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*1
6 x SATA 6Gb/s port(s), gray, 4 ports from 2 x SATA Express
2 x SATA Express port
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports*2
Supports Intel® Smart Response Technology*2
ASMedia® ASM1061 controller :
2 x SATA 6Gb/s port(s), black, *3

LAN

Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
Anti-surge LANGuard

Audio

ROG SupremeFX 2015 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ESS® ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ -bit)
- TI RC4580 2VRMS audio OP AMP(s)
Audio Feature :
- Gold-plated jacks
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SenseAmp
- Sonic Studio II
- Sonic Radar II

USB Ports

Intel® Z170 chipset :
6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
Intel® Z170 chipset : *4
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 port(s) (1 at back panel, black, USB Type-CTM),1 x USB 3.1 port(s) (1 at back panel, red, Type-A)

ROG Exclusive Features Start Button
Reset Button
LN2 Mode
Extreme Engine Digi+ :

- MicroFine Alloy Chokes
- NexFET™ Power Block MOSFET
- 10K Black Metallic Capacitors
Mem TweakIt
KeyBot II

- One-click Overclocking
- X.M.P.
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features :
- O.C. Profile
- GPU.DIMM Post
- Tweakers´ Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
Special Features OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
- HyStream
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
 ASUS USB BIOS FlashbackTM
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
RAMCache

Operating System Support

Windows® 10
Windows® 8.1
Windows® 7

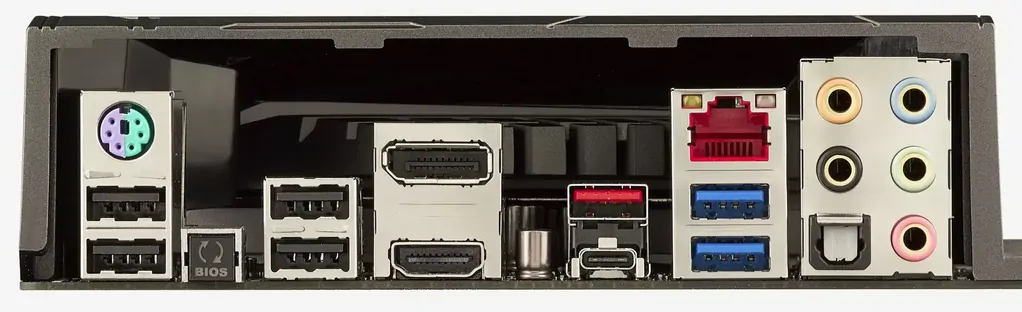

Back I/O Ports 1 x USB 3.1 Gen 2 (red)Type-A
1 x USB 3.1 Gen 2 (black) USB Type-CTM
2 x USB 3.1 Gen 1 (blue)
4 x USB 2.0
1 x USB BIOS FlashbackTM Button(s)
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports 2 x SATA Express connector: gray, Compatible with 4 x SATA 6.0 Gb/s ports
4 x Chassis Fan connector(s) (4-pin)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
1 x ROG extension (ROG_EXT) header(s)
1 x CPU Fan connector(s) (4-pin)
1 x CPU OPT Fan connector(s) (4-pin)
1 x System panel(s) (Q-Connector)
1 x Thunderbolt header(s)
1 x MemOK! button(s)
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x LN2 Mode jumper(s)
1 x 14-1 pin TPM connector
1 x AAFP connector
8 x SATA 6Gb/s connector(s)
1 x Thermal sensor connector(s)
1 x Reset button(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Power-on button(s)
1 x Water Pump header (4-pin)
BIOS

1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.

Manageability

WfM2.0, DMI3.0, WOL by PME, PXE

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Note

*1 When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
*2 This function will work depending on the CPU installed.
*3 These SATA ports are for data hard drives only. ATAPI devices are not supported.
*4 2 x USB2.0 port at mid-board comes from the ROG extension (ROG_EXT) port.

SKU AsusMaximusVIIIHero-R
Barcode # 634855344172
Brand Asus
Brand ASUS

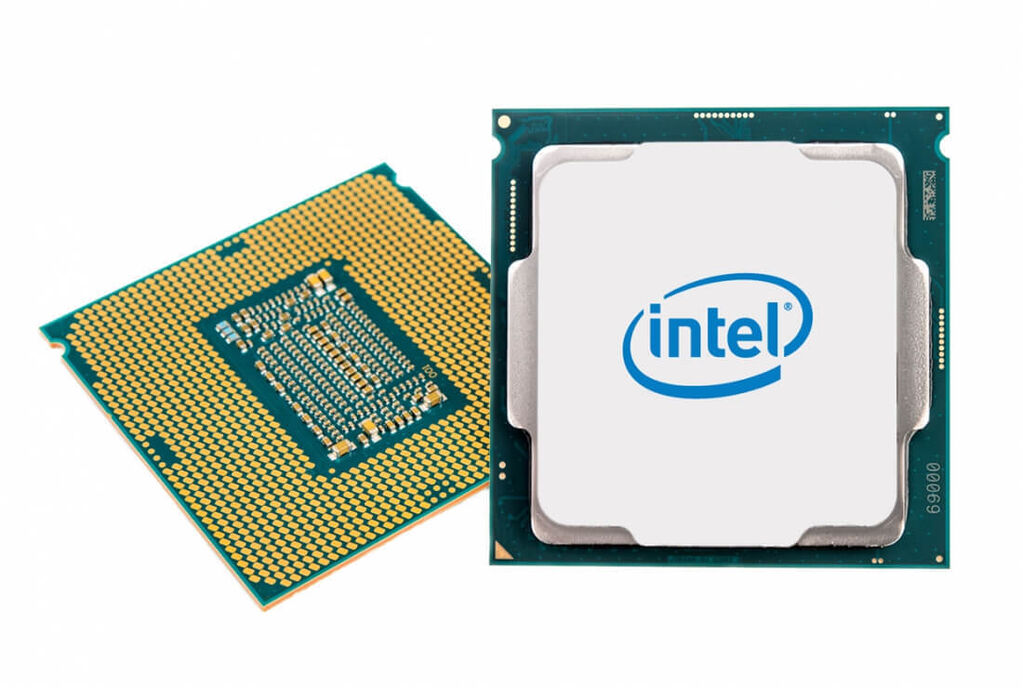

Processor Model Core i7 6700K
Form Factor ATX
Model ASUS MAXIMUS VIII HERO
Processor Type Core i7 6th Gen.
Number of Cores 4
Socket Type LGA 1151
Clock Speed 4.20 GHz
Shipping Cubic 0.017794000m3
