A Total Solution for Wristband Printing

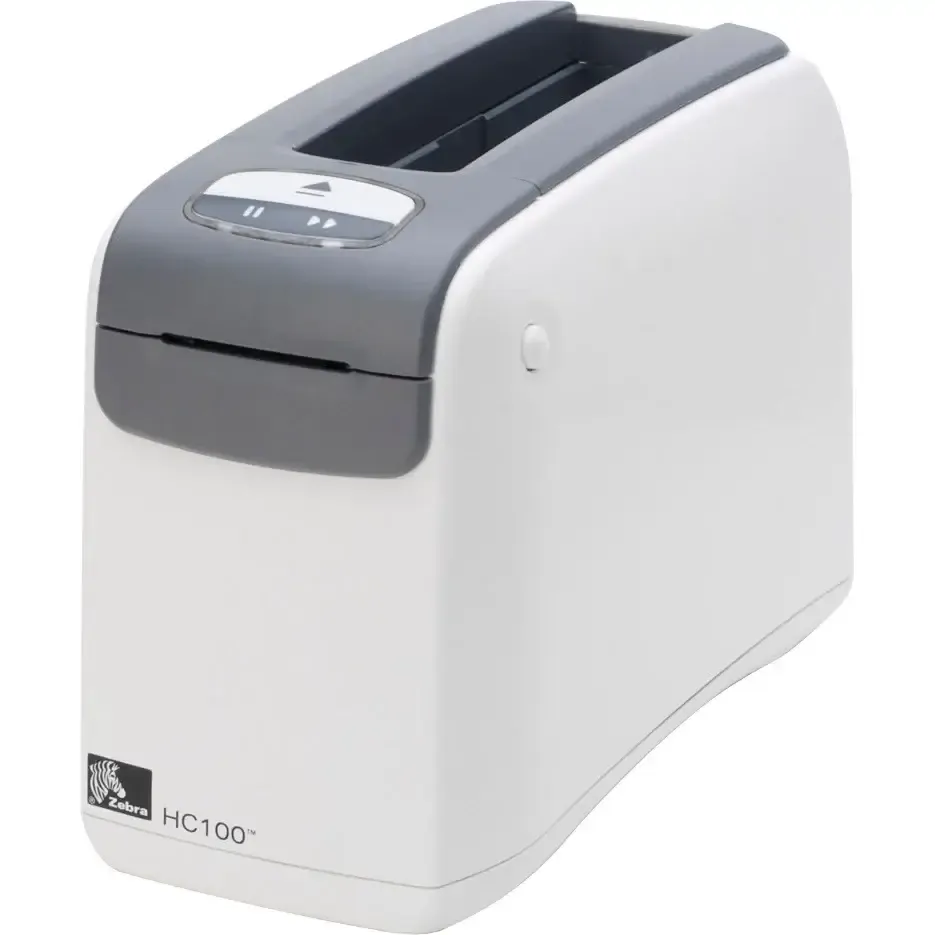

Zebra's HC100™ wristband printer was developed to maximize ease of use. Just pop the easy-to-load cartridges containing Zebra's Z-Band® wristbands into the printer—and print individual wristbands. The wide range of available wristbands are suitable for hospital patient identification as well as guest identification at hospitality venues and attractions such as amusement parks, sporting events and zoos.

It’s easy-to-load feature requires minimal user action as the printer detects the wristband type and size and automatically calibrates the settings for optimal print quality and reduced waste. There is minimal training required to use the HC100—loading or switching the cartridge is a quick and simple task.

(HC100-R)

Standard Features

• Quick & easy wristband cartridge loading
• Automatic print speed setting—up to 4 ips depending on installed cartridge
• Direct thermal printing of barcodes, text and graphics
• Dual-wall frame, impact-resistant plastic
• ZPL® or ZPL II® programming language
• 32 bit RISC processor
• 8 MB (2 MB user-available) Flash memory (standard)
• 16 MB (4 MB user-available) SDRAM memory (standard)
• Element Energy Equalizer™ (E3™) for superior print quality

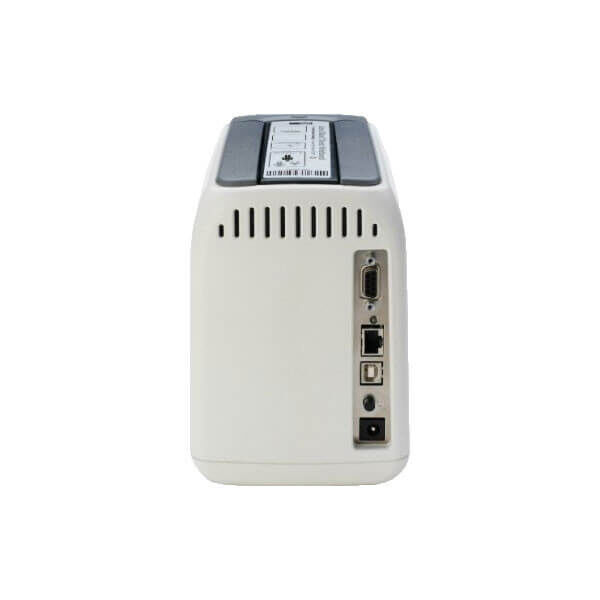

• Dual communications interface: serial and USB
• Odometer for print-length tracking
• Illuminated media low/media out indicator
• Tool-less printhead and platen replacement
• Unicode™-compliant for multi-language printing
• Instant media calibration—no wasted media
• 16 resident expandable bitmap fonts
• One resident scalable font
• Head-up sensor
• Standard tear-off mode feature
• XML-enabled printing—allows XML communications from information systems
• ENERGY STAR® qualified

Printer Specifications

Maximum Print Length  22"/558 mm
Minimum Print Length  3"/76 mm
Print Widths 0.75"/19.05 mm, 1"/25.4 mm, 1.1875"/30.16 mm
Resolution 300 dpi/12 dots per mm
Maximum Print Speed • 2"/51 mm per second (Healthcare)
• 4"/102 mm per second (Z-Band Fun & Z-Band Splash)

Media Characteristics

Zebra offers a comprehensive range of wristband solutions for healthcare and hospitality industries.
Healthcare Wristbands • Adhesive or clip closure.
• Adult, child and infant sizes.
• Barcodes on Z-Band wristbands are proven to withstand water, soaps, foams, alcohol and other common solvents found in a healthcare environment, and remain scannable for longer than the average patient stay.
Hospitality Wristbands • One-day and multi-day wristband options.
• Seven bright colors.
• Designed for amusement parks, water parks, carnivals, zoos, sporting events and resorts.
• Variable print-on-demand barcoded wristbands means the wristband does not have value until printed, reducing ticket fraud.

Operating Characteristics

Environment • Operating temperature: 40° F/4.4° C to 104° F/40° C
• Storage temperature: -40° F/-40° C to 140° F/60° C
• Operating humidity: 20%-85% non-condensing R.H.
• Storage humidity: 5%-85% non-condensing R.H.
Wristband Cartridge Environmental Specifications • Service temperature: -40° F/-40° C to 140° F/60° C
• Storage temperature: 32° F/0° C to 70°F/21° C at 35% to 50% non-condensing R.H.
Electrical • Universal power supply (PFC-compliant) 100–240VAC, 50–60Hz
• ENERGY STAR qualified printer
Agency Approvals • Emissions: FCC Part 15, Subpart B, VCCI, C-Tick
• Emissions and Susceptibility: (CE): EN 55022 Class B and EN 55024
• Safety: CB Scheme IEC 60950-1:2001, TÜV, NRTL
• Power supply: IEC 60601-1:1995

Physical Characteristics

• Width: 5"/127 mm
• Height**: 7"/178 mm
• Depth: 9.5"/242 mm
• Weight: 3.1 lbs/1.4 kg
** Requires 6"/153 mm clearance above printer to
load cartridge
Healthcare wipeable plastic is designed to withstand a variety of disinfectants, chemicals and cleaning solutions. See zebra.com for full list.

Fonts/Graphics/Symbologies

Fonts and Character Sets • Character fonts: Standard bitmapped Zebra fonts: A, B, C, D, E (OCR-B), F, G, H (OCR-A),
GS, P, Q, R, S, T, U, V & Ø Smooth font (CG Triumvirate™ Bold Condensed)
• Supports user-defined fonts and graphics— including custom logos
• Bitmap fonts are expandable up to 10 times, height- and width-independent. Fonts E and H
(OCR-B and OCR-A), however, are not considered in spec when expanded
• Smooth-scalable font Ø (CG Triumvirate Bold Condensed) is expandable dot-by-dot, heightand width-independent, while maintaining edges to a max. 1500 x 1500 dots
Barcode Symbologies Linear barcodes:
• Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, EAN-14, GS1 DataBar™ (formerly RSS), Industrial
2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, Standard 2-of-5, UPC-A,
UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extensions
Two-dimensional:
• Aztec Code, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
SKU HC100-R
Barcode # 615678882133
Brand Zebra
Brand Zebra
Type Wristband Printer
Model HC100
Maximum Resolution 300 dpi
Connectivity USB, Serial, Ethernet
Technology Thermal
Input Type Monochrome
Supported Paper Size Max Label Width: 1.1875"/30.16 mm
Shipping Cubic 0.017794000m3
