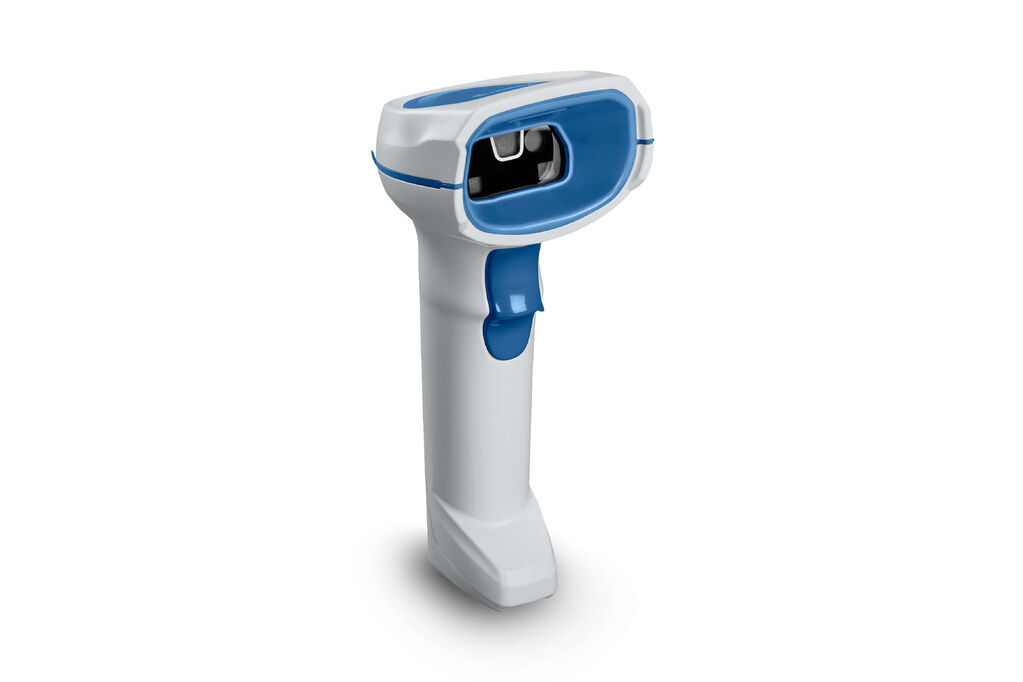

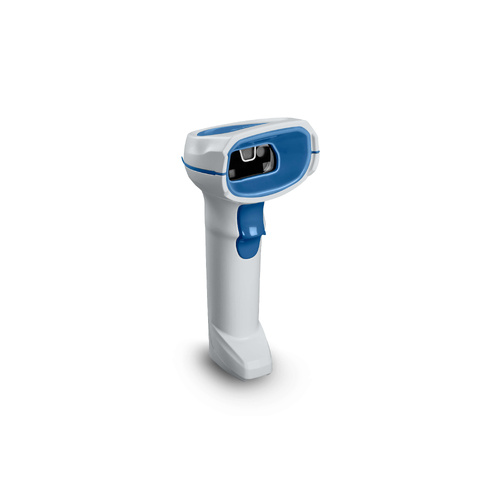

Zebra's premium DS8108-HC corded scanner is purpose-built for healthcare environments and clinician workflows. With unparalleled performance to read the toughest barcodes in any condition, clinicians can stay focused on patient care.

(DS8108-R)

Physical Characteristics

Dimensions

Corded DS8108-HC and Cordless DS8178-HC:
6.6 in. H x 2.6 in. W x 4.2 in. D
16.8 cm. H x 6.6 cm. W x 10.7 cm. D

Weight Corded DS8108-HC: 5.4 oz./154 g
Input Voltage Range DS8108-HC: 4.5 to 5.5VDC
Current2 Corded DS8108-HC Operating Current at Nominal Voltage (5.0V): 450 mA
Color Healthcare White
Supported Host Interfaces USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support Supports over 90 international keyboards
FIPS Security Certification Certified Compliant with FIPS 140-2
Apple MFi Certification MFi certified for use with iPhones and iPads (cordless DS8178-HC)
User Indicators Direct decode indicator, good decode LEDs, rear view LEDs, beeper (adjustable tone and volume), dedicated Power Charge Gauge

Performance Characteristics

Light Source Aiming pattern: True Green (528 nm) Circular
Illumination Two (2) warm white LEDs
Imager Field of View 48° H x 37° V nominal
Image Sensor 1,280 x 960 pixels
Minimum Print Contrast 16% minimum reflective difference
Skew/Pitch Roll Tolerance +/- 60°; +/- 60°; 0-360°

Imaging Characteristics

Graphics Format Images can be exported as Bitmap, JPEG or TIFF
Image Quality 109 PPI on an A4 document
Minimum Element Resolution Code 39 - 3.0 mil; Code 128 - 3.0 mil; Data Matrix - 5.0 mil; QR Code - 5.0 mil; PDF - 4.0 mil

User Environment

Operating Temperature Scanner: 32° to 122° F/0° to 50° C
Presentation Mode: 32° to 104° F/0° to 40° C
Charging Temperature 32° to 104° F/0° to 40° C
Storage Temperature -40° to 158° F/-40° to 70° C
Humidity 5% to 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
Tumble Specification Designed to withstand 2,000 1.5 ft./0.5 m tumbles3
Environmental Sealing IP52
Approved Cleaners Disinfectant Ready. Refer to the product reference guide for the complete list of approved cleaners.
Electrostatic Discharge (ESD) DS8108-HC/DS8178-HC and Cradles: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light Immunity 0 to 9,000 Foot Candles/0 to 96,840 Lux

Regulatory

Electrical Safety

EN 60950-1 2ed + A11 + A1 + A12 + A2:2013,
IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07

Environmental

RoHS EN 50581

LED Safety IEC 62471
IT Emissions EN 55022 (Class B); EN 55032 (Class B)
IT Immunity EN 55024
Harmonic Current Emissions EN 61000-3-2
Voltage Fluctuation and Flicker EN 61000-3-3
Radio Frequency Devices 47 CFR Part 15, Subpart B, Class B
Digital Apparatus ICES-003 Issue 6, Class B
Medical Equipment Apparatus EN60601-1-2: 2015

Decode Capabilities5

1D

Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes, securPharm, DotCode, Dotted DataMatrix

Decode Ranges (Typical)6

Symbology/Resolution Near/Far
Code 39: 3 mil 1.4 in./3.6 cm to 5.1 in./13.0 cm
Code 128: 3 mil 1.8 in./4.6 cm to 4.1 in./10.4 cm
Code 128: 5 mil 1.2 in./3.0 cm to 8.1 in./20.6 cm
Code 128: 15 mil 1.0 in./2.5 cm to 16.9 in./42.9 cm
PDF 417: 5 mil 1.5 in./3.8 cm to 6.1 in./15.5 cm
PDF 417: 6.67 mil 1.1 in./2.8 cm to 8.1 in./20.6 cm
Data Matrix: 5 mil 1.9 in./4.8 cm to 4.5 in./11.4 cm
Data Matrix: 7.5 mil 1.3 in./3.3 cm to 6.7 in./17.0 cm
Data Matrix: 10 mil 0.6 in./1.5 cm to 8.5 in./21.6 cm
UPC: 13 mil (100%) 0.0 in./0.0 cm to 15.9 in./40.4 cm
QR: 10 mil 0.6 in./1.5 cm to 7.7 in./19.6 cm
QR: 20 mil 0.0 in./0.0 cm to 12.5 in./31.8 cm

Footnotes

1 Requires firmware version CAACXS00-004-R00 or later.
2 Refer to Product Reference Guide for currents when other power sources are used.
3 1 tumble = 0.5 cycle.
4 At one scan per second.
5 Refer to Product Reference Guide for complete list of symbologies.
6 Printing resolution, contrast, and ambient light dependent.
Specifications are subject to change without notice.
SKU DS8108-R
Barcode # 615678797987
Brand Zebra
Brand Zebra
Model DS8108-HC
Shipping Cubic 0.017794000m3
