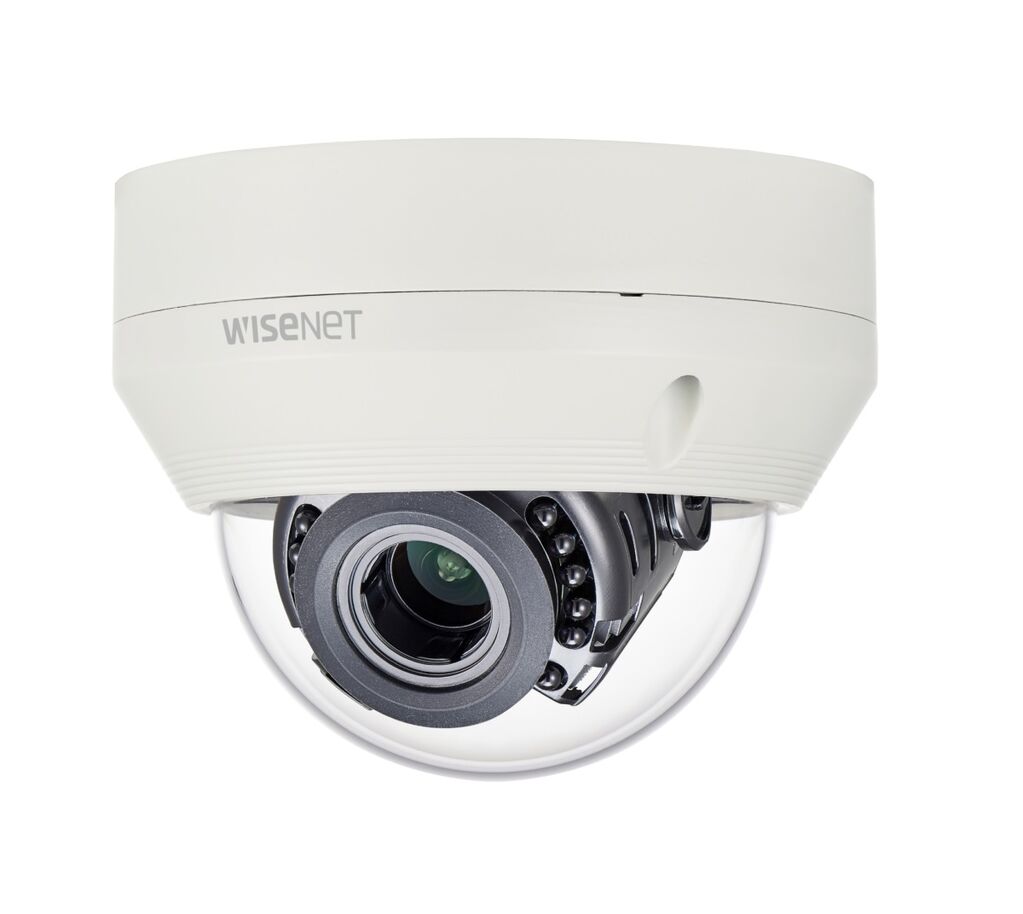

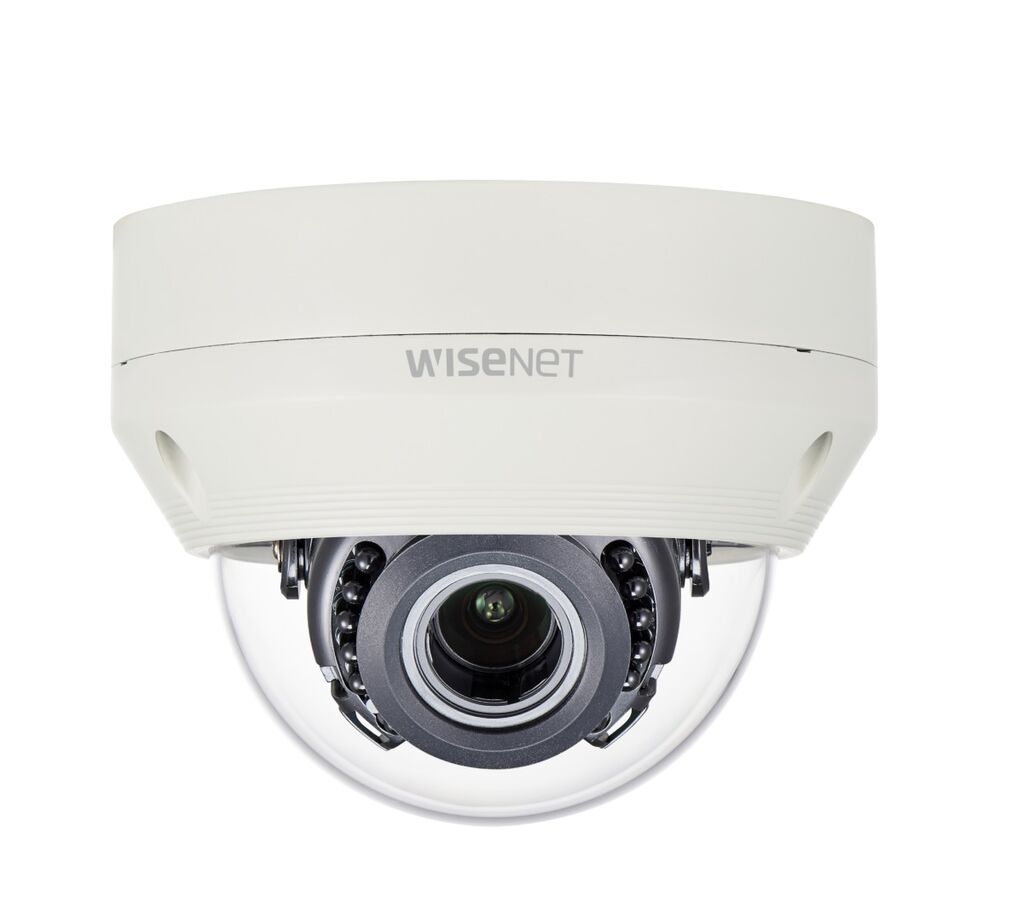

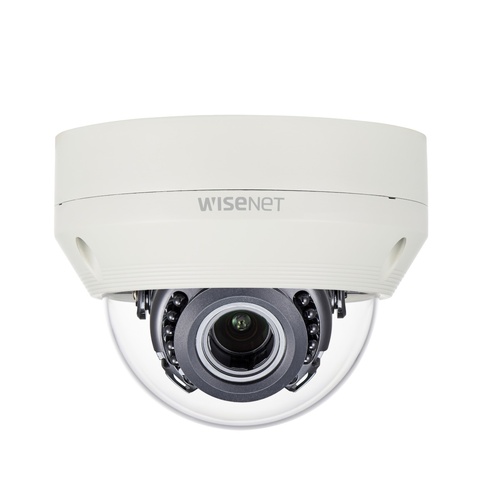

The Hanwha Vision HV-HCV-6080R 1080p Analog HD Vandal-Resistant IR Dome Camera designed for high-performance surveillance. With its advanced analog high-definition technology, it delivers crisp and clear images, ensuring reliable monitoring in various environments. Equipped with infrared LEDs, this camera provides exceptional night vision capabilities, extending surveillance even in low-light conditions. Its vandal-resistant construction enhances durability, making it suitable for outdoor installations in challenging locations. The HV-HCV-6080R is an ideal choice for businesses and organizations seeking dependable security solutions.

  • Full HD resolution
  • 0.11 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
  • 3.2 ~ 10mm (3.1x) motorized V/F lens
  • Day & Night (ICR), WDR (120dB)
  • SSNRⅣ, Motion detection
  • IR viewable length 30m, IP66, IK10
  • Transmission distance max. 500m
  • Easy Installation (Plug & play), Dual power

(HCV-6080R)

VIDEO

    • Imaging Device: 1/2.8″ 2M CMOS
    • Total Pixels: 2,000(H) x 1,121(V) 2.24M pixels
    • Effective Pixels: 1,984(H) x 1,105(V) 2.19M pixels
    • Scanning System: Progressive Scan
    • Min. Illumination:
      • Color: 0.11 Lux (F1.6, 1/30sec)
      • B/W: 0 Lux (IR LED on)
    • S / N Ratio: 52dB (AGC Off, Weight On)
    • Video Output: BNC (AHD / TVI / CVI / CVBS selectable)
    • Resolution: 1920 x 1080
    • Max. Framerate: 30fps@1080p

PAN / TILT / ROTATE

    • Pan / Tilt / Rotate Range: 0° ~ 350° / 0° ~ 67° / 0° ~ 355°

LENS TYPE

    • Focal Length (Zoom Ratio): 3.2 ~ 10mm (3.1x) motorized varifocal
    • Max. Aperture Ratio: F1.6
    • Angular Field of View:
      • H: 110.2˚(Wide) ~ 32˚(Tele)
      • V: 55.4˚(Wide) ~ 18˚(Tele)
      • D: 128.4˚(Wide) ~ 36.6˚(Tele)
    • Min. Object Distance: 0.5m (1.64ft)
    • Focus Control: Simple focus (Motorized V/F) / Manual
    • Lens Type: DC Auto Iris
    • Mount Type: Board-in Type

OPERATIONAL

    • On Screen Display:
      • Multi-language support (16): English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish
    • Camera Title: Off / On (Displayed 15 Characters)
    • Day & Night: Auto (ICR) / Color / B/W
    • Backlight Compensation: Off / User BLC / HLC / WDR
    • Wide Dynamic Range: 120dB
    • Digital Noise Reduction: SSNRⅣ (Off / On)
    • Defog: Off / Auto / Manual
    • Motion Detection: Off / On (4 zones)
    • Privacy Masking: Off / On (8 zones rectangle)
    • Gain Control: Off / Low / Middle / High / Very High
    • White Balance: ATW / Outdoor / Indoor (4,500K° ~ 8,500K°) / Manual / AWC (1,800K° ~ 10,500K°)
    • Electronic Shutter Speed: 1sec ~ 1/12,000sec
    • Reverse: Off / H-Rev / V-Rev / HV-Rev
    • Profile: Basic, Day & Night, Backlight, ITS, Indoor, User
    • Alarm (MD) Output: 1
    • Remote Control Interface: Coaxial
    • Protocol: AHD (ACP), CVBS (Pelco-C), CCP (CVI), TCP (TVI)
    • IR Distance: 30m (98.43ft)
    • Video Transmission Distance: 500m (5C2V Coaxial Cable)

ENVIRONMENTAL

    • Operating Temperature / Humidity: -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH (Start up should be done at above -10°C (+14°F))
    • Ingress Protection: IP66
    • Vandal Resistance: IK10

ELECTRICAL

    • Input Voltage / Current: Dual (24V AC ±10% & 12V DC ±10%)
    • Power Consumption: Max. 4.2W

MECHANICAL

    • Color / Material: Ivory / Aluminum
    • Dimensions (WxH): Ø137 × 106.1mm (Ø5.39″ × 4.18″)
    • Weight: 725g (1.60 lb)
SKU HCV-6080R
Barcode # 8801089136848
Brand Wisenet
Brand Wisenet
Type Dome Security Camera
Model HCV-6080R
Shipping Cubic 0.017794000m3
