Tested and working condition. Includes 1 55T speaker with wall mount attached.

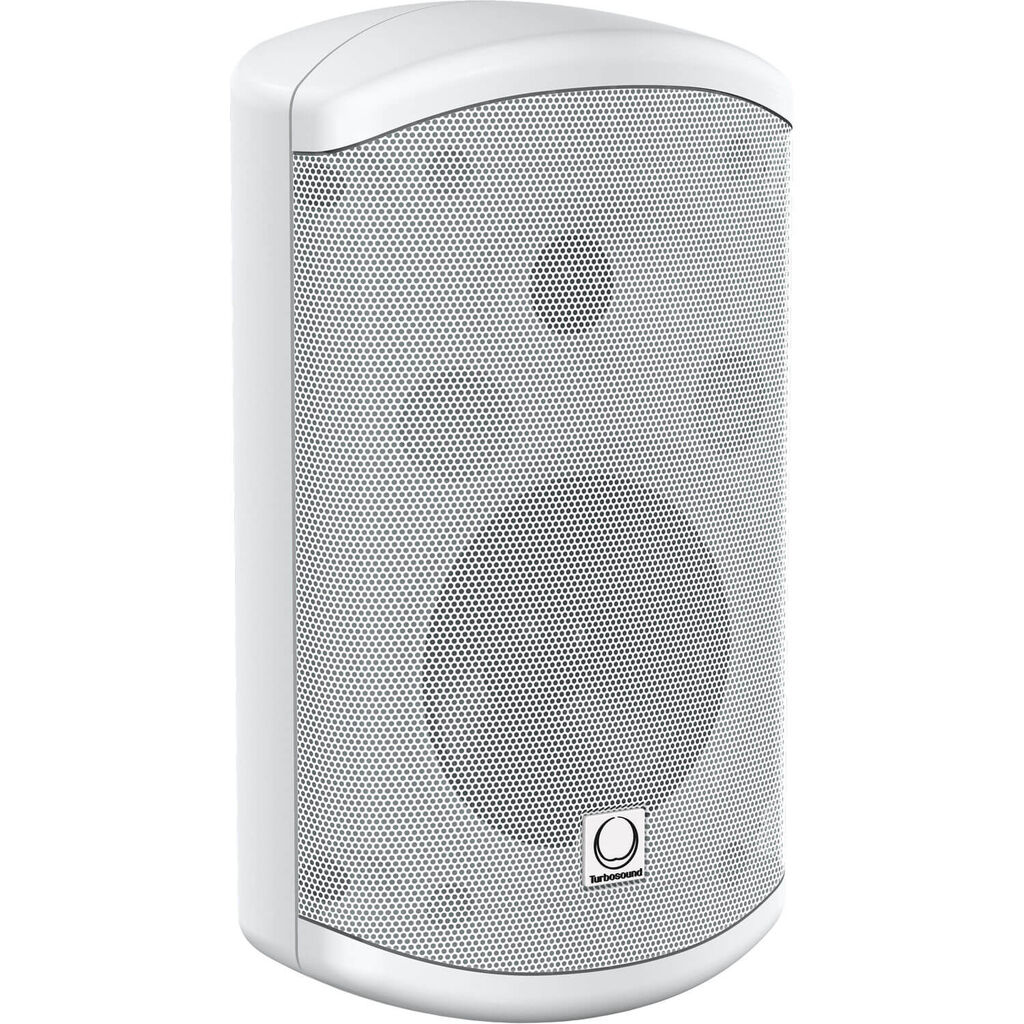

The Impact 55T is a compact passive two-way loudspeaker consisting of a 5” low frequency drive unit matched to a 1” neodymium ferrofluid cooled HF tweeter with an internal passive crossover network and including an internal line transformer.

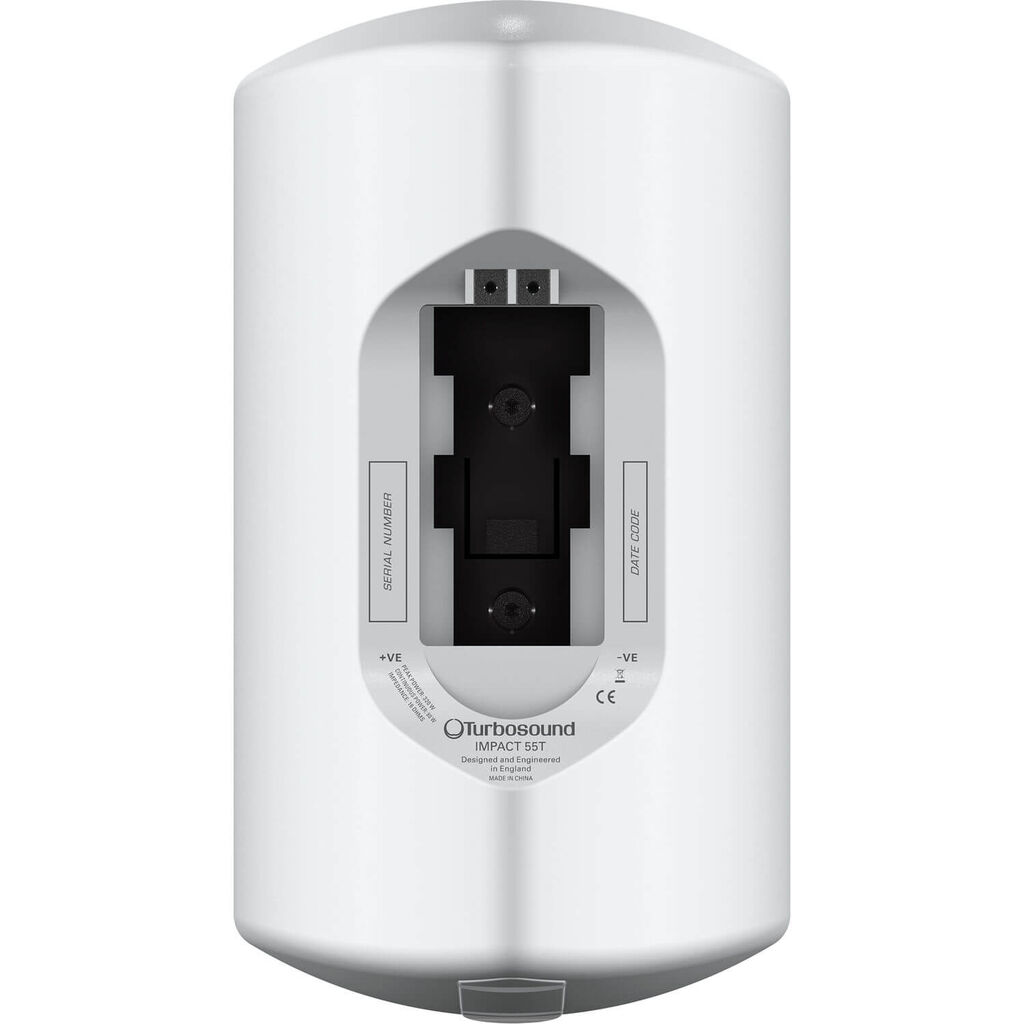

The Impact 55T will provide high quality sound reproduction from an unobtrusive cabinet and is available in black or white, designed to blend effectively into any decor. It is supplied with a multi-tapped internal line transformer for use in 70 volt line and 100 volt line distributed systems, and also includes a low impedance setting. The low frequence range of the Impact 55T can easily be extended with the TSB-110 subwoofer. The Impact 55T is supplied with an adjustable wall mounting bracket which provides the loudspeaker connections as an integral part of the bracket assembly, allowing the brackets to be sited, installed and wired independently of the loudspeakers being available on-site, making the final installation and commissioning of the loudspeaker system a greatly simplified process. The cabinet also provides M6 fixings for use with CB-10 wall brackets, WB-10 ceiling brackets and OmniMount™ brackets. A 3/8” threaded insert is provided behind an EPDM rubber cover on the bottom of the cabinet for use with microphone stands as a spot monitor.

Product Features

  • Pair of compact 2 way full range surface-mount loudspeakers for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • High excursion 5" low frequency driver with high temperature voice coil
  • 1" ferrofluid cooled neodymium high frequency driver
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Proprietary elliptical waveguide provides wide 100° H x 70° V dispersion
  • Wall-mount bracket with integral loudspeaker connections included
  • Architecturally styled glass filled impact resistant enclosure
  • Semi matt black finish fits unobtrusively in any environment
  • 2 x M6 rigging points compatible with Turbosound and OmniMount brackets
  • 3/8" mic stand fitting for spot monitor applications

(Impact55T-W-R)

DIMENSIONS (HxWxD) 300mm x 164mm x 158mm (11.8” x 6.5” x 6.2”)
NET WEIGHT 3.5kg (7.7lbs)
COMPONENTS 1 x 5” (127mm) LF driver, 1 x 1” (25mm) ferrofluid-cooled neodymium HF tweeter
FREQUENCY RESPONSE 89Hz – 20kHz ±3dB, 64Hz – 20kHz ±10dB
NOMINAL DISPERSION 100°H x 70°V @ -6dB points
POWER HANDLING 80 watts continuous, 160 watts program
SENSITIVITY 90dB SPL, 1 watt @ 1metre
MAXIMUM SPL 109dB continuous, 115dB peak
IMPEDANCE 16 ohms
LINE TRANSFORMER Transformer taps at 60 watts, 30 watts, 15 watts (100v line); 60 watts, 30 watts, 15 watts, 7.5 watts (70v line), and low impedance setting
CROSSOVER Internal passive crossover at 2.5kHz, 12dB/octave
CONSTRUCTION Gas injected, glass filled moulded ABS enclosure
GRILLE Powder-coated galvanised perforated steel
MOUNTING (2) M6 fixing points for WB-5 wall bracket (supplied). Compatible with Turbosound WB-10 wall brackets and CB-10 ceiling brackets, and OmniMount™ brackets
CONNECTORS Colour coded binding posts
STANDARDS Fire retardant V0 ABS
SKU Impact55T-W-R
Barcode # 601527975897
Brand Turbosound
Brand Turbosound
Type PA Speakers
Colour White
Model Impact 55T
Connectivity Wired
Shipping Cubic 0.014400000m3
