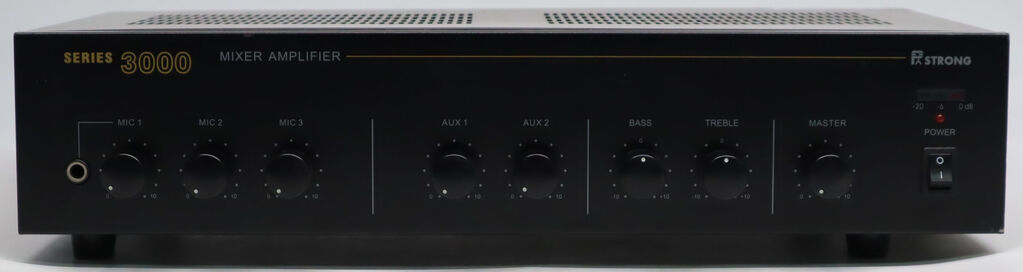

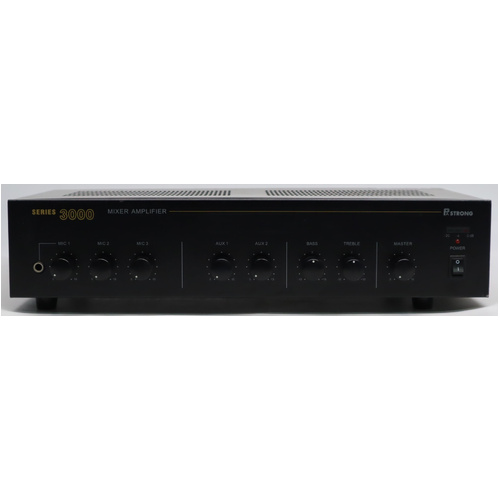

PA 3000 series is a PA Mixing Amplifier with TEL/EMG & 5 input, priority control and have Output Power rating from 30/60/120/240 Watt.



(PA3120-BGrade)

Performance PA3120
Max Rated Output Power 1kHz, ≤ 1% THD 120W
Input Sensitivity & Impedance
  • MIC 1-3: 1.0mV @250Ω, Balanced
  • AUX1: 200mV @47kΩ, Unbalanced
  • AUX2: 500mV @47kΩ, Unbalanced
  • Line (MIC3): 200mV @47kΩ, Unbalanced selectable
  • TEL: 0.1~1V @600Ω, adj Balanced
  • Power In: 1V @47kΩ, Unbalanced
Tone Control
  • Bass: 100Hz, ±10dB
  • Treble: 10kHz, ±10dB
Frequency Response
  • MIC1~3 / AUX1~2: 60Hz~15kHz, +/-3dB
  • TEL: 100Hz~15kHz, +/-3dB
S/N Ratio
  • MIC >60dB
  • AUX >70dB
  • TEL >70dB
Phantom Power MIC1-2: 24V
Output 8Ω / 25V / 70V / 100V
Tape Out: 350mV @47kΩ
Pre Out: 1V @600Ω
Nominal AC Line Voltage 115 / 230V 50/60Hz Selectable
DC IN 24V / 8A
Chime 2 Tone
Operation Temp / Humidity -10°C ~ +45°C @ 95% R.H. (Non-Condensing)
Storage Temperature -20°C ~ +70°C
Dimensions (WxDxH) mm 430 x 300 x 88
Weight 9.5kg
SKU PA3120-BGrade
Barcode # 615678581197
Brand PA Strong
Brand PA Strong
Type Mixer Amplifier
Model PA3120
Shipping Cubic 0.017794000m3
