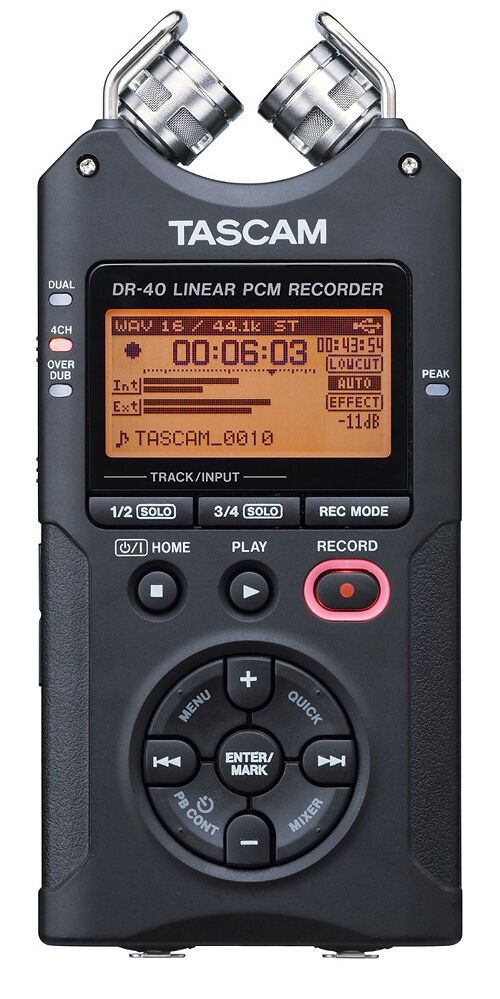

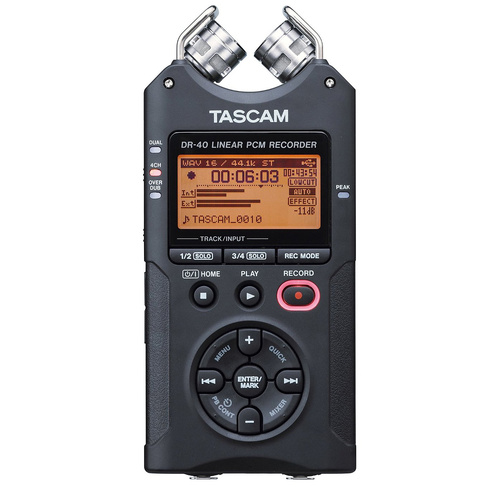

The adjustable mics, four-track recording and extended battery life of the TASCAM DR-40 give you the flexibility you need to record tracks anywhere.  The DR-40 captures up to four tracks from built-in, high-quality condenser microphones, XLR mic or line inputs. The internal mics are adjustable from XY to AB position, helping you to tailor your recording to the sound of the room. A pair of great-sounding TASCAM microphone preamps welcome condenser microphones with phantom power, recording at up to 96kHz/24-bit resolution. It accommodates balanced XLR or 1/4" line inputs using locking Neutrik Combo jacks. The DR-40 accepts SD or SDHC cards up to 32GB.  Once recorded, play back your takes with EQ and the optional Level Align feature to avoid volume jumps. A stereo reverb effect is also built-in, as well as a speaker and chromatic tuner. Transfer recordings to computer using the USB 2.0 jack. Other features include overdub mode, variable speed playback, limiting and low cut filter, and much more – all with TASCAM's simple-to-use interface. No other recorder makes home or live recording as simple as the TASCAM DR-40.

(TASCAM-DR-40-R)

Recording media SD card (64MB to 2GB), SDHC card (4GB to 32GB)
File system FAT16/32
File format WAV,BWF,MP3
WAV / BWF 44.1/48/96kHz, 16/24bit
MP3
Sampling frequency 44.1kHz/48kHz
Bit-rate for recording 32k/64k/96k/128k/192k/256k/320kbps
Playback bit rate 32 - 320kbps, VBR, ID3 tag Ver. 2.4
Number of channels 4-channel (2 Stereo)
Playback speed control (VSA) 0.5 - 1.5 times (in 0.1 increments) * 44.1/48kHz only
Built-in microphone Unidirectional, stereo (Possible to switch between A-B/X-Y positions)
EXT MIC/LINE IN
Connector XLR/TRS combo jack (1: GND, 2: HOT, 3: COLD)
Input impedance 2.2k ohms(MIC) / 10k ohms(LINE)
Nominal input level -19dBV(MIC) / +4dBu (LINE)
Maximum input level -3dBV (MIC) / +20dBu (LINE)
PHONES/LINE OUT
Connector 1/8"(3.5mm)stereo mini jack, Unbalanced
LINE OUT
Output impedance 12ohms
Standard output level -14dBV(10k ohms load)
Maximum output level +2dBV(10k ohms load)
PHONES
Maximum output level 20mW+20mW(32ohms load)
Built-in speakers 0.3W, Mono
Low-cut filter 40Hz/80Hz/120Hz
USB
Connector Mini-B type
Format USB2.0 HIGH SPEED
REMOTE 2.5mm TRS jack
Effector 6 presets (HALL1/2, ROOM, STUDIO, PLATE1/2)
Chromatic tuner C1 - B6, A4 = 435Hz - 445Hz (in 1Hz increments)
Tripod attachment screw-hole 1/4 inch, Tripod attachment screw-hole
Power 3 AA batteries, USB bus power, AC100 - 240V (Optional AC adapter)
Power consumption 1.7W (Max)
Battery operation time
(Playback)

With alkaline batteries
(Panasonic EVOLTA)
Using headphones
Approx. 16 hours (2ch WAV, 96kHz, 24bit)
Approx. 21.5 hours (2ch WAV, 44.1kHz, 16bit)
Approx. 17.5 hours (2ch MP3, 44.1kHz, 128kbps)
Approx. 15.5 hours (4ch WAV, 96kHz, 24bit)
Approx. 17.5 hours (4ch WAV, 44.1kHz, 16bit)
Approx. 16.5 hours (4ch MP3, 44.1kHz, 128kbps)
With Ni-MH batteries
(Panasonic eneloop)
Using headphones
Approx. 14 hours (2ch WAV, 96kHz, 24bit)
Approx. 17.5 hours (2ch WAV, 44.1kHz, 16bit)
Approx. 14.5 hours (2ch MP3, 44.1kHz, 128kbps)
Approx. 13 hours (4ch WAV, 96kHz, 24bit)
Approx. 15 hours (4ch WAV, 44.1kHz, 16bit)
Approx. 15 hours (4ch MP3, 44.1kHz, 128kbps)
Battery operation time
(Recording)

With alkaline batteries
(Panasonic EVOLTA)
Using built-in microphone
Approx. 16 hours (2ch WAV, 96kHz, 24bit)
Approx. 20.5 hours (2ch WAV, 44.1kHz, 16bit)
Approx. 18 hours (2ch MP3, 44.1kHz, 128kbps)
Using built-in microphone + line
Approx. 8.5 hours (4ch WAV, 96kHz, 24bit)
Approx. 9 hours (4ch WAV, 44.1kHz, 16bit)
Approx. 9.5 hours (4ch MP3, 44.1kHz, 128kbps)
With Ni-MH batteries
(Panasonic eneloop)
Using built-in microphone
Approx. 12 hours (2ch WAV, 96kHz, 24bit)
Approx. 17 hours (2ch WAV, 44.1kHz, 16bit)
Approx. 15 hours (2ch MP3, 44.1kHz, 128kbps)
Using built-in microphone + line
Approx. 8 hours (4ch WAV, 96kHz, 24bit)
Approx. 8.5 hours (4ch WAV, 44.1kHz, 16bit)
Approx. 8.5 hours (4ch MP3, 44.1kHz, 128kbps)
Dimensions 70(W)×155(H)×35(D) mm (when the microphone pair is close)
90(W)×155(H)×35(D) mm (when the microphone pair is open)
Weight 285g/10.05oz (including battery)
213g/7.51oz (not including battery)
SKU TASCAM-DR-40-R
Barcode # 634607486648
Brand TASCAM
Brand TASCAM
Type Portable Recorder
Model DR-40
Shipping Cubic 0.017794000m3
