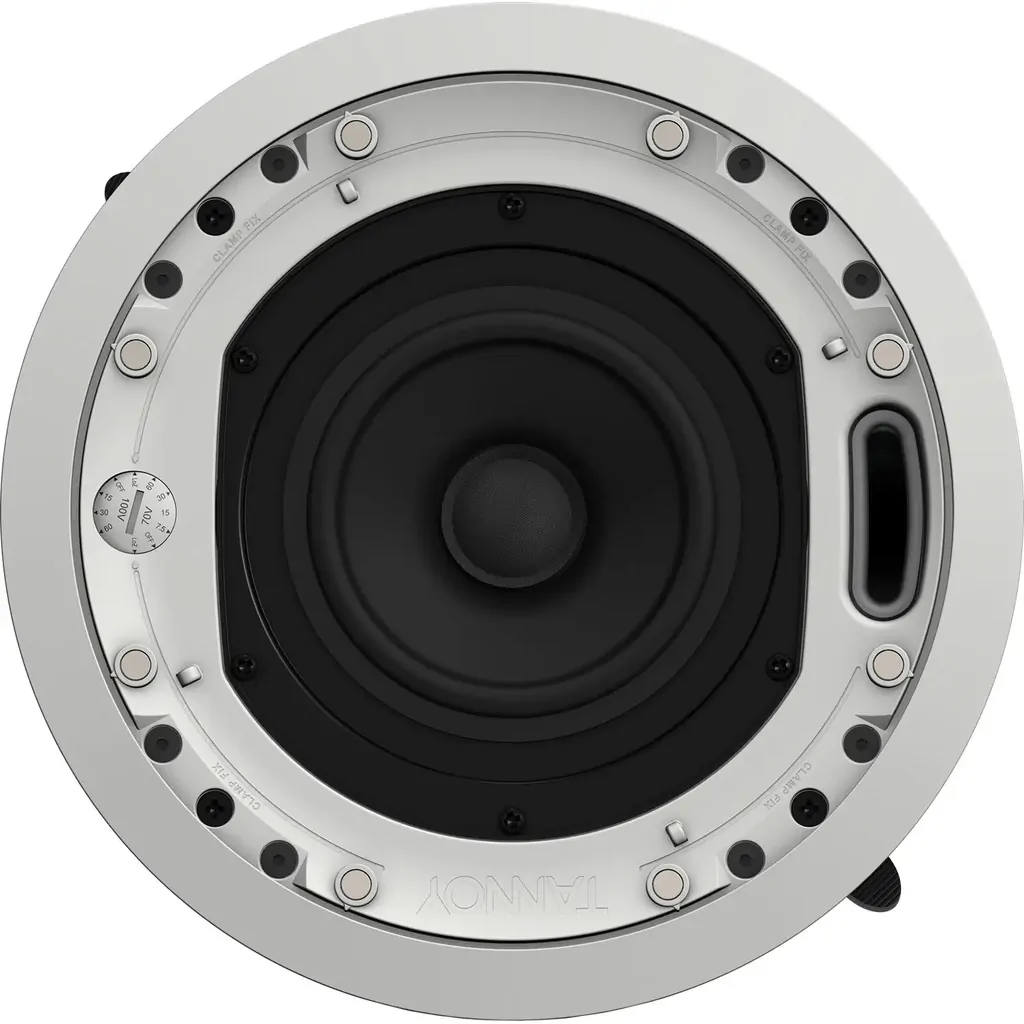

The CMS 503ICT LP is a full bandwidth 200-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5" ICT (Inductive Coupling Technology) point source driver with extended frequency range, the UL certified CMS 503ICT LP delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability – and are ideal for constant-usage applications.

(CMS-503ICT-LP-NoAcc-R)

Frequency response (-3 dB) 88 Hz - 50 kHz
Frequency range (-10 dB) 77 Hz - 54 kHz
System sensitivity (1 W @ 1 m) 89 dB (1 W = 4 V for 16 Ohms)
Nominal coverage angle 90 degrees conical
Power handling (average / programme / peak) 50 W / 100 W / 200 W
Recommended amplifier power 100 W @ 16 Ohms
Nominal impedance (Lo Z) 16 Ohms
Rated maximum SPL (average / peak) 106 dB / 112 dB
70 V transformer taps 30 W / 15 W / 7.5 W / 3.75 W / OFF & low impedance
100 V transformer taps 30 W / 15 W / 7.5 W / OFF & low impedance
Low frequency driver 1 x 130 mm (5.0") mineral loaded polypropylene
High frequency driver ICT
Compliance UL-1480, UL-2043, CE
Bezel diameter 274.0 mm (10.79")
Front of ceiling to rear of backcan 98.6 mm (3.88")
Hole cutout diameter 253.0 mm (9.96")
Net weight (each) 4.4 kg (9.70 lbs)
SKU CMS-503ICT-LP-NoAcc-R
Barcode # 634607291105
Brand Tannoy
Brand Tannoy
Type In-Ceiling Speakers
Colour White
Model CMS 503ICT LP
Supported Modes 70V and 100V distributed line systems
Shipping Cubic 0.058220000m3
