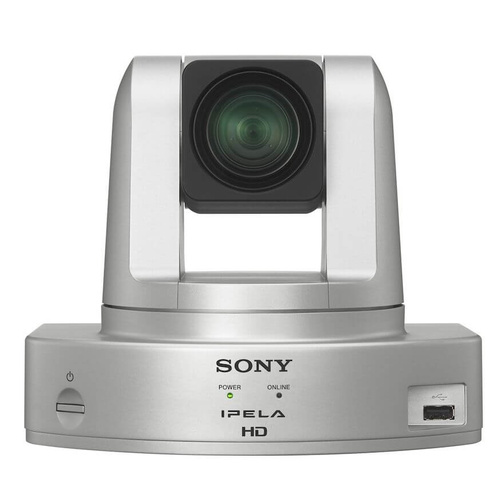

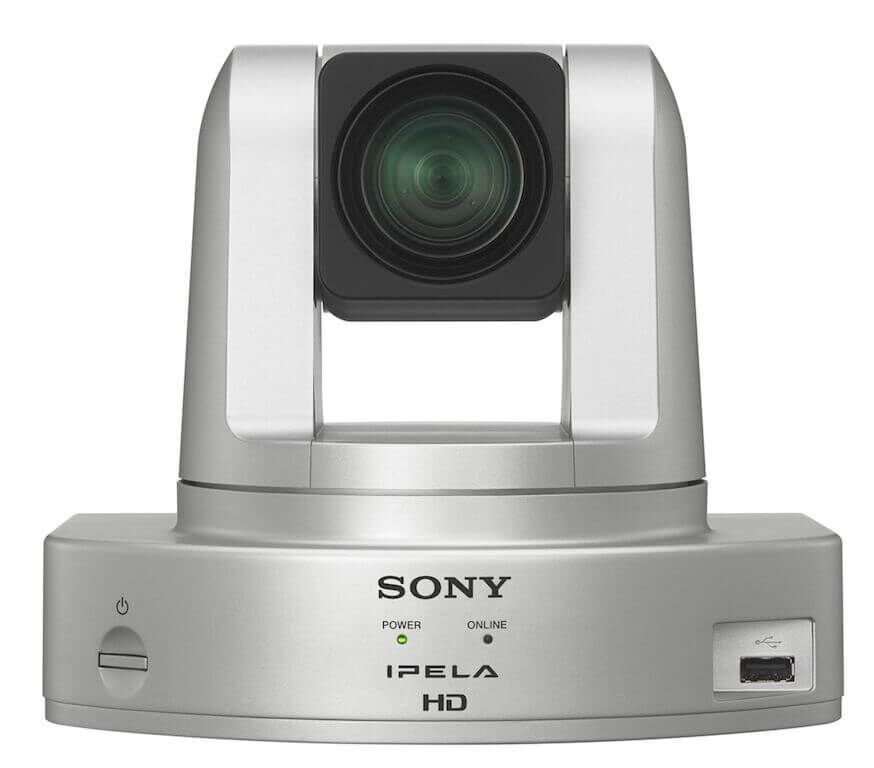

Sony PCS-XC1 HD Video Conferencing System - No Remote SKU: SonyPCS-XC1-NoRemote-R
Refurbished — Grade A View device grading info.
Tested to power on, display over HDMI. Includes PCS-XC1 camera, compatible 19.5V power adapter. Does NOT include remote, microphone.
Easily hold high-quality video conferences wherever there's a network connection available
Businesses, schools and public organisations can communicate more effectively and spontaneously with the PCS-XC1 portable video conferencing system that includes an optional wireless capability (license required).
Quick and easy to set up, this all-in-one solution lets conference participants share crisp sound and smooth, clearly-packed HD pictures over the internet with colleagues anywhere in the world. The high-quality pan/tilt/zoom camera captures smooth, finely-detailed video images that make virtual meetings more natural and immersive - even in low light or against harsh back-lighting where other VC systems struggle. For critical applications such as healthcare and broadcasting, the system can be optionally upgraded to support even higher-quality Full HD 1080p video at a smooth 60 frames per second.
Meetings can be further enhanced with live data sharing. Just hook up a PC and illustrate your point with on-screen slide presentations, documents or videos. Add an optional wireless pen/tablet and make on-screen annotations while you're talking for extra emphasis. Conferences can also be recorded directly to a connected USB memory for easy storage and sharing.
Everything's included in the compact, highly portable unit: colour HD camera and codec, plus Wi-Fi capability (requires optional license) for fuss-free connection to wireless networks in any office, hotel, classroom or huddle space.
Affordable, flexible and refreshingly simple to use, the PCS-XC1 puts high quality 'on-the-go' video conferencing in reach of every organisation.
This product contains pre-installed software and requires the purchase of licence keys to activate some functions.
(SonyPCS-XC1-NoRemote-R)
Format
Communication Protocol | ITU-T H.323, IETF SIP |
Video Encoding | H.263, H.263+, H.263++, H.264 Baseline Profile, H.264 High Profile, MPEG-4 SP@L3 (SIP only) |
Audio Encoding | G.711 (3.4kHz@56/64kbps), G.722 (7.0kHz@48/56/64kbps), G.728 (3.4kHz@16kbps), MPEG-4 AAC-LC Mono (11kHz@64/96kbps), MPEG-4 AAC-LC Mono (22kHz@96kbps) |
Far End Camera Control | H.281 (Zoom / Pan / Tilt / Preset) |
Frame Format | H.225 |
Dual Stream | H.239 (video and presentation data) (transmission and reception) |
Encryption | H.235 version 3 |
Other | H.460.18, H.460.19 |
Camera
Image Sensor | 1/2.8-type "Exmor" CMOS image sensor |
Output Pixels (H x V) | 1920 x 1080 |
Frame Rate | 59.94 fps |
S/N Ratio | 50 dB |
Brightness Control | Auto/Manual |
Zoom Ratio | x144 zoom (12X optical zoom, 12X digital zoom) |
Focusing System | Auto/Manual |
Horizontal Viewing Angle | Approx. 71° |
Focal Length | f = 3.9 mm to 46.8 mm |
F-Number | F1.8 to F2.0 |
Pan/Tilt Angle | Pan ±100°/Tilt +25° |
Preset Position | 100 positions |
Power Supply | Supplied from Codec Unit |
Other Features | Auto Gain Control, Auto White Balance, Backlight Compensation |
Video
Resolution | [4:3] QCIF (176x144), CIF (352x288), 4CIF (704x576) [16:9] WCIF (W288p) (512x288), W432p (768x432), W4CIF (1024x576), 720p (1280x720), 1080i (1920x1080), 1080p (1920x1080)*1 |
Frame rate | Up to 60fps (H.263, H.263+, H.263++, H.264, H.264@720p, H.264@1080p, MPEG-4 SP@L3, except for H.263 4CIF)*2 |
Screen Layout | Full Screen / PinP / PandP / PandPandP / Side by Side |
Communication Parameter Settings | YES (Auto / Manual) (Resolution, Bitrate, Frame Rate) |
Notes | *1 : 1080p and 1080i are available after installing the optional PCSA-RXC1 HD upgrade software. *2: H.264@1080p is available after installing the optional PCSA-RXC1 HD upgrade software. |
Audio
Audio Channel | Monaural |
High Quality Audio | Echo Canceller (Enable to turn ON and OFF), Auto Gain Control, Auto Noise Reduction |
Lip Sync | YES (Enable to turn AUTO and OFF) |
Mic ON/OFF | YES |
Network
Network Protocol | TCP/IP, UDP/IP, DHCP, DNS, HTTP, TELNET, SSH, SNMP, NTP, ARP, RTP/RTCP, PPPoE, UPnP |
QoS (Quality of Service) | Real-time ARQ (Auto Repeat reQuest), ARC (Adaptive Rate Control), Adaptive FEC (Forward Error Correction), IP Precedence, DiffServe |
Network Function | UDP Shaping, TCP/UDP Port Setting, NAT Support, Auto Gatekeeper Discovery, URI Dialing, Encryption**, IPv6 |
Protocol Stack | IPv4, IPv6 |
Bit Rate | 64 kbps to 4,096 kbps |
H.239 Presentation | YES 1080* / SXGA / WXGA / 720 / XGA @30fps |
Note | * : Available when installing the HD upgrade software option PCSA-RXC1. |
Interface
Video Input | HDMI x 1 *2 |
Video Output | HDMI x 1 *2 |
Audio Input | Mic In (mini jack, plug-in power) x 1 HDMI x 1 |
Audio Output | HDMI x 1 |
Network Interface | Gigabit Ethernet (10BASE-T/100BASE-TX/1000BASE-T) x 1, Wireless LAN *3 |
External Control | mini-USB |
Other | USB x 2 *4 |
Notes | *2 : HDCP and HDMI CEC are NOT supported. *3 : The wired LAN and wireless LAN features are NOT available at the same time. *4 : The USB connector on the front panel is prohibited from connecting any wireless LAN module of the wireless software option PCSA-WXC1 and wireless dongle of pen tablets as well as any tiny USB devices. |
Others
USB flash memory | Save Still Image (JPEG), Version Up, Private Phone Book (Auto Dialing), Save/Load Setup, Save/Load Phone Book, Recording |
Recording | YES (to USB flash memory) Video : 512 kbps and 1,024 kbps (2 steps) Audio : 64kbps |
Still Image Capturing | YES |
Annotation | YES* |
Remote Control Interface | TELNET/SSH, WEB |
Remote Commander | RFZ Remote Commander |
Note | * : A pen tablet device should be prepared to use the annotation function. |
General Note
** | Encryption is not available in the models supplied in some regions. Please consult with local representative. |
SKU | SonyPCS-XC1-NoRemote-R |
Barcode # | 601527954649 |
Brand | Sony |
Brand | Sony |
Type | Video Conferencing |
Model | PCS-XC1 |
Shipping Cubic | 0.017794000m3 |
