With 3 ClearVid CMOS sensors and G lens

Designed to enhance creativity and deliver the highest standard of optical and audio quality.


Incorporates Sony's unique optical technology and unparalleled quality control

Sony's newly designed G Lens is incorporated into the camcorder, boasting excellent resolution, colour and contrast, for breath-taking images.
3 ClearVid CMOS Sensor system utilising the technology of Exmor provides excellent low-light sensitivity. This compact camcorder is ideal when high performance in available light conditions is a requirement. The ergonomically designed body allows flexible shooting under any conditions, while maintaining Sony's worldwide reputation for quality and high performance.


(HVR-Z5P-BGrade)

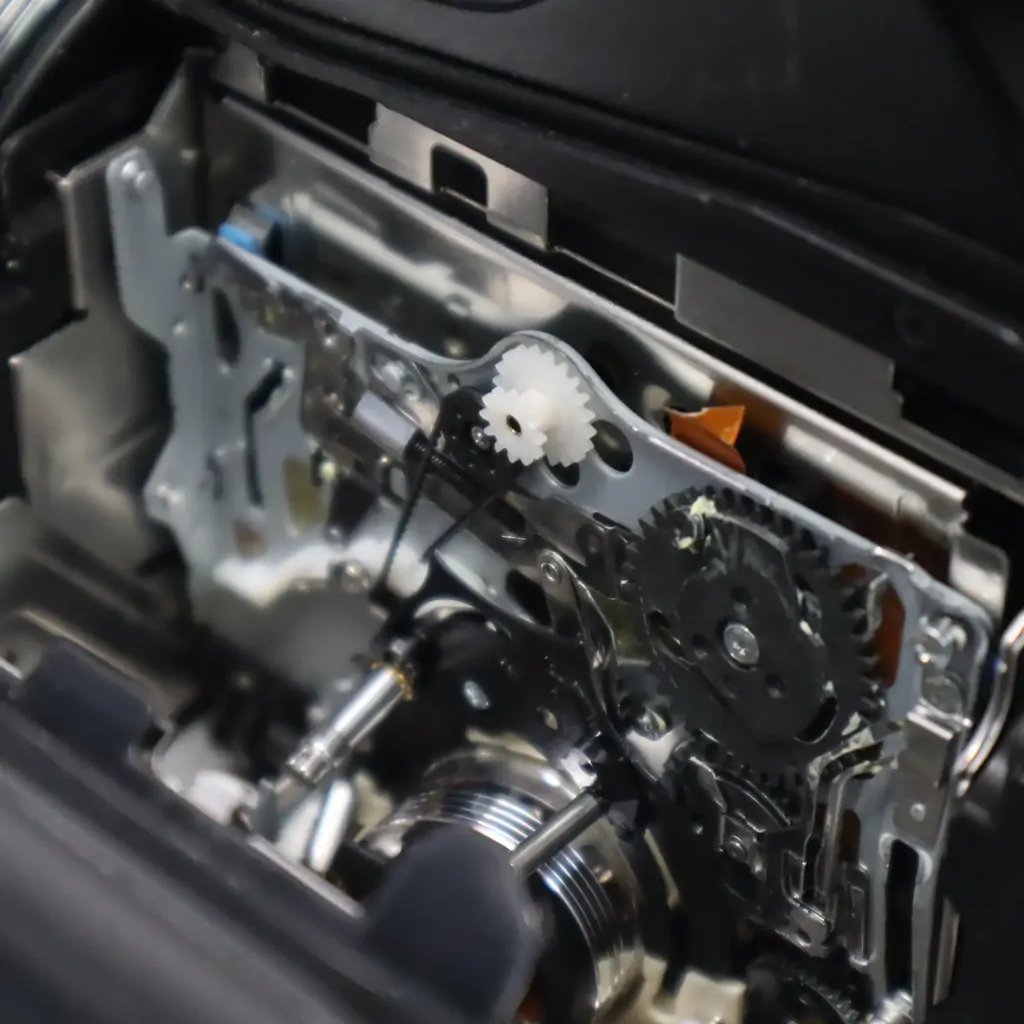

For parts or not working - sold AS IS. UNTESTED, unable to test. Ribbon cable in tape mechanism appears severed. Includes HVR-Z5P video camera with lens hood only. Does NOT include battery, power adapter, microphone mount.

Camera section
Lens Sony G Lens, 20x (optical), f = 4.1 to 82mm, f = 29.5 to 590 mm at 16:9 mode, f = 36.1 to 722 mm at 4:3 mode, fi lter diameter: 72mm
Built-in filter Clear, 1/4, 1/16, 1/64
Imaging system 1/3 inch-type, progressive 3 ClearVid CMOS Sensor system with technology of Exmor
Picture elements Approx. 1,037,000 pixels (effective), approx. 1,120,000 pixels (total)
Focus Auto, manual (focus ring/one push auto/infi nity/AF assist/focus macro)
White balance Auto, one-push auto (A/B positions), indoor (3200 K), outdoor (selectable level -7 to +7, approx. 500K/step), manual WB Temp (selectable 2300K to 15000K, 100K/step)
Manual shutter speed Auto 1/50 - 1/2000
Manual 1/3 - 1/10000
Gain -6, -3, 0, 3, 6, 9, 12, 15, 18, 21 dB
Minimum Illumination  1.5 lux (auto gain, auto iris, 1/25 shutter)
VTR section
Recording format HDV1080/50i/25p, DVCAM, DV SP 576/50i (PAL)
Play out/Down conversion format HDV1080/50i/25p, DVCAM, DV SP 576/50i (PAL)
Playback/Recording time HDV/DV SP Max. 63 min with PHDVM-63DM cassette
DVCAM Max. 41 min with PHDVM-63DM cassette
Input/Output connectors
Audio/Video output 10-pin connector A/V OUT jack
(component, composite and unbalanced audio x2ch with cables)
HDV/DV input/output i.LINK interface (IEEE 1394, 4-pin)
XLR audio input XLR 3-pin female x 2ch
Headphone Stereo mini jack (ø3.5 mm)
LANC Stereo mini-mini jack (ø2.5 mm)
Digital video output HDMI connector
Built-in output devices
LCD view finder 0.45 inch-type (Viewable area measured diagonally), approx. 1,226,880 dots (852 x 3[RGB] x 480), 16:9 aspect ratio
LCD monitor 3.2 inch-type (Viewable area measured diagonally), XtraFine LCD, approx. 921,600 dots, hybrid type, 16:9 aspect ratio
General
Mass Approx. 2.2 kg (4 lb 14 oz) (w/o tape, battery)
Dimension (W x H x D) Approx.169 x 188 x 451mm (6 3/4 x 7 1/2 x 17 7/8inch)
(with lens hood, microphone and large eye cup)
Power requirements DC 7.2 V (battery pack), DC 8.4 V (AC adaptor)
Power consumption HDV Approx. 7.1 W (with ECM-XM1 / LCD viewfi nder ON)
DVCAM/DV Approx. 6.8 W (with ECM-XM1 / LCD viewfi nder ON)
Battery operating time HDV 395min(NP-970)
DVCAM/DV 415min(NP-970)
Operating temperature 0 to 40 °C (32 to 104 °F)
Storage temperature -20 to 60 °C (-4 to 140 °F)
SKU HVR-Z5P-BGrade
Barcode # 634607164294
Brand Sony
Brand Sony
Type Handheld
Model HVR-Z5P
Shipping Cubic 0.075900000m3
