Intelligent communication to capture remotely every scene

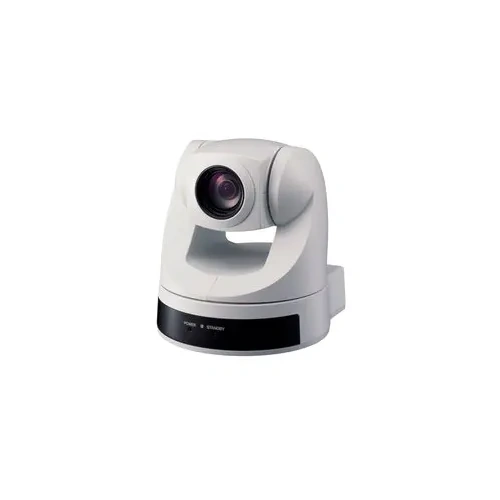

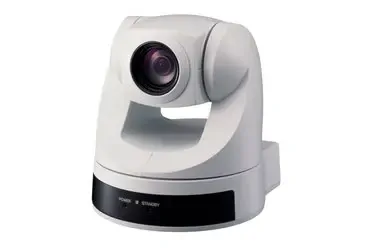

The EVID70/EVID70P combine a high quality colour video camera with the flexibility of a remote pan/tilt/zoom operation, all in a compact easy-to-use package. Incorporating an 18x optical zoom lens, these cameras allow a user to zoom in on a small or distant object with exceptionnal clarity.

Compared to his predecessor, the EVI-D31, the EVID70/EVID70P camera offer a wide pan/tilt range, and a faster pan/tilt mechanism.
Above all, these cameras are ceiling mountable - a first for the popular Sony EVI cameras.

The EVID70/EVID70P is equiped with a variety of convenient features such as auto ICR function, Alarm function and RS-232C/422 serial control , making them ideal for any remote shooting applications such as distance learning, indoor and outdoor security systems, courtrooms, event venues, concert halls, and more.

Ceiling/Desktop mountable:

The new EVID70/EVID70P camera is at the same time ceiling mountable and desktop, what represent a unique feature in this Pan Tilt Zoom market. In addition, a complete ceiling kit is provided with the camera.

Superb picture quality with Exview HAD CCD:

The adoption of Sony Exview had CCD improves basic camera performance. For example, these cameras offer superb sensitivity of 1 lux (typical), and a low smear level and D-range.

Auto ICR (IR Cut Filer Removal) Function:

The Auto ICR function automatically switches the settings to attach or remove the IR Cut filter is automatically disabled (ICR ON), and tghed infrazred sensitivity is increased. With a set level of brightness, the filter is automatically engageds depending on the ambient light, allowing the cameras to be effective both in day and night environments.

RS-232C or RS-422 Serial control (VISCA Command):

All cameras settings and pan/tilt/zoom functiolns can be con btrolled remotely via a PC. With the RS-232C connection , maximum cable lengh can be extented to 15 meters, while the RS-422 connection extends this further to 1200 meters.

(SonyEVI-D70P-R)

  • Image Sensor

    1/4 type EXview HAD CCD

  • Image Sensor (Number of Effective Pixels)

    752 x 582

  • Signal System

    PAL

  • Minimum Illumination (50IRE)

    1 lx (F1.4)

  • S/N Ratio

    More than 50 dB

  • Gain

    Auto/Manual (-3 to +28 dB, 2 dB steps)

  • Shutter Speed

    1 to 1/10,000 s

  • Exposure Control

    Auto, Manual, Priority AE, Exposure compensation, Back-light compensation

  • White Balance

    Auto/ATW/Indoor/Outdoor/One push/Manual

  • Optical Zoom

    18x

  • Digital Zoom

    12x

  • Focusing System

    Auto/Manual

  • Horizontal Viewing Angle

    48 degrees (wide) to 2.7 degrees (tele)

  • Focal Length

    F1.4 to F3.0
    f=4.1 mm (wide) to 73.8 mm (tele)

  • Minimum Object Distance

    10 mm (wide end) to 800 mm (tele)

  • Pan/Tilt Angle

    Pan: ±170°, Tilt: + 90°/-30°

  • Pan/Tilt Speed (Max.)

    Pan: 100°/sec, Tilt: 90°/sec

  • Preset Position

    6

SKU SonyEVI-D70P-R
Barcode # 615678753563
Brand Sony
Brand Sony
Type PTZ Camera
Model EVI-D70P
Shipping Cubic 0.017794000m3
