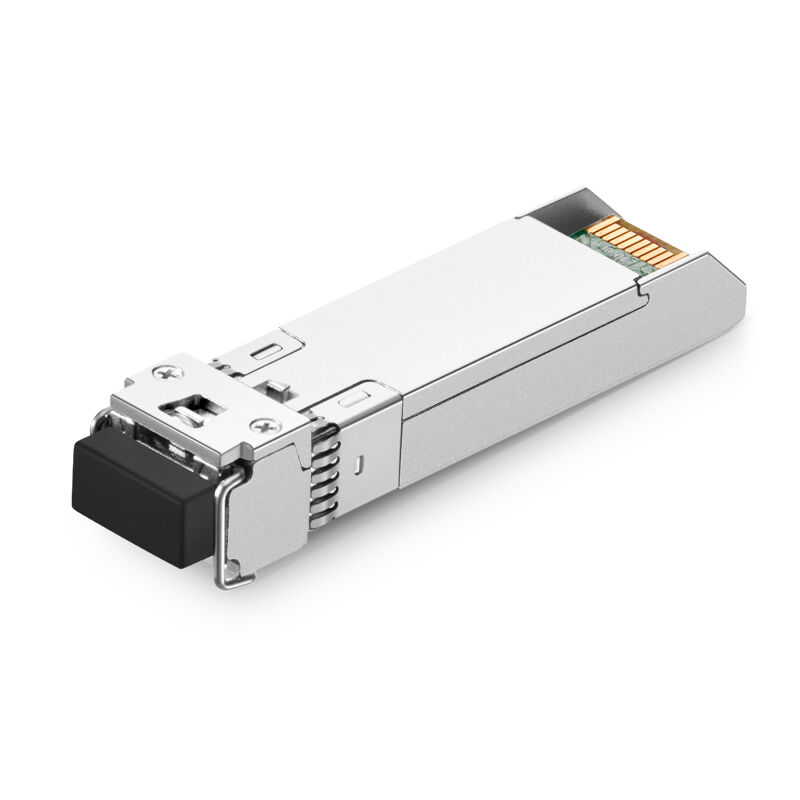

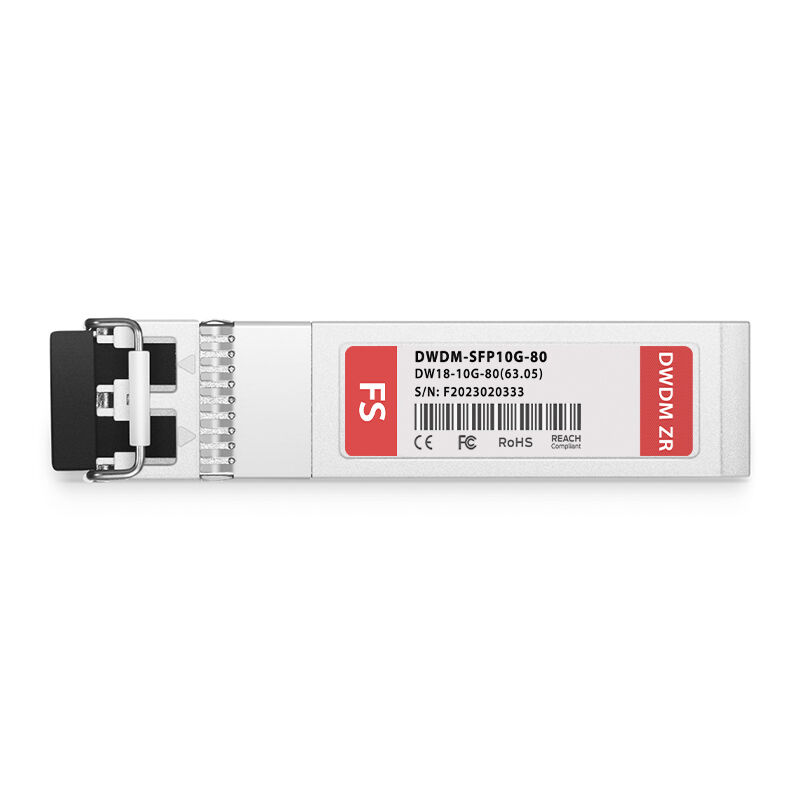

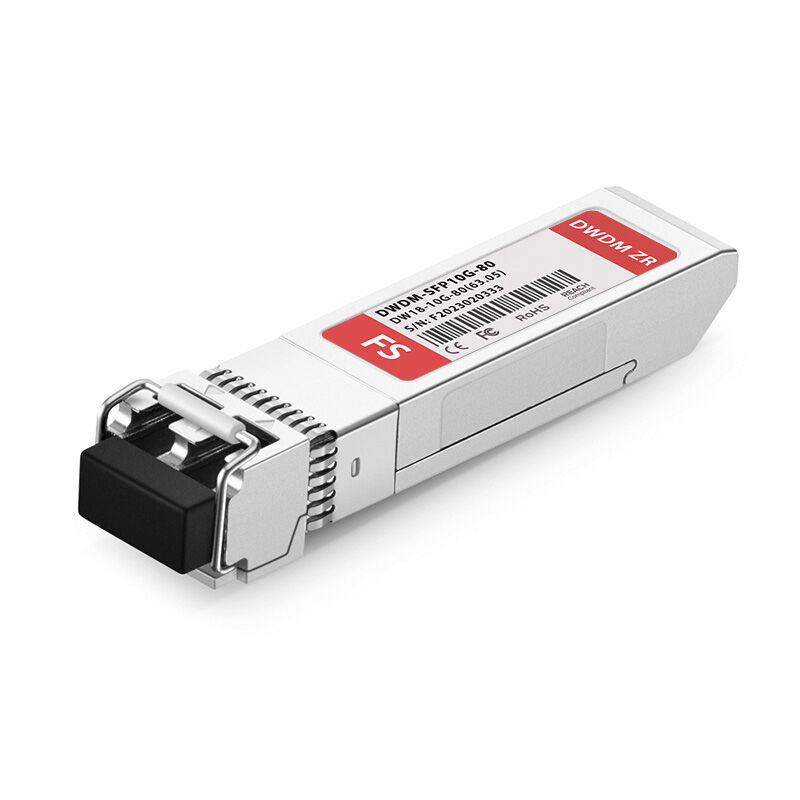

FS compatible SFP+ transceiver supports up to 80km link lengths over single-mode fibre (SMF) via an LC duplex connector. Digital diagnostics functions are accessible through a 2-wire serial interface as specified in SFF-8472, enabling real-time access to operating parametres. This transceiver utilises Sumitomo's TOSA (Transmitter Optical Sub-Assembly), guaranteeing consistent performance while being compliant with Multi-Source Agreement (MSA) standards for seamless network integration.

The module is fibre transceivers for a wide variety of switches, routers, and other equipment. It allows enterprises and service providers to provide scalable and easy-to-deploy 10-Gbps LAN and WAN services in their networks.



(DW-SFP10G80)

FS Genuine

DWDM-SFP10G-80

Vendor Name

FS

Form Factor

SFP+

Data Rate

10 Gbps

Wavelength

1563.05nm

Max Cable Distance

80km

Connector

Duplex LC

Optical Components

EML DWDM

TX Power

1-5dBm

Receiver Sensitivity

<-23dBm

Power Budget

24dB

Receiver Overload

-7dBm

Media

SMF

Power Consumption

<1.6W

Bit Error Ratio (BER)

1E-12

Extinction Ratio

>8.2dB

EMC (Electro Magnetic Compatibility)

Supported

MTBF

1,000,000 Hours

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

SFP+ MSA Compliant, CPRI, eCPRI

SKU DW-SFP10G80
Barcode # 601527801370
Brand SF
Brand FS
Type Transceiver Module
Model DWDM-SFP10G-80
Shipping Cubic 0.017794000m3
