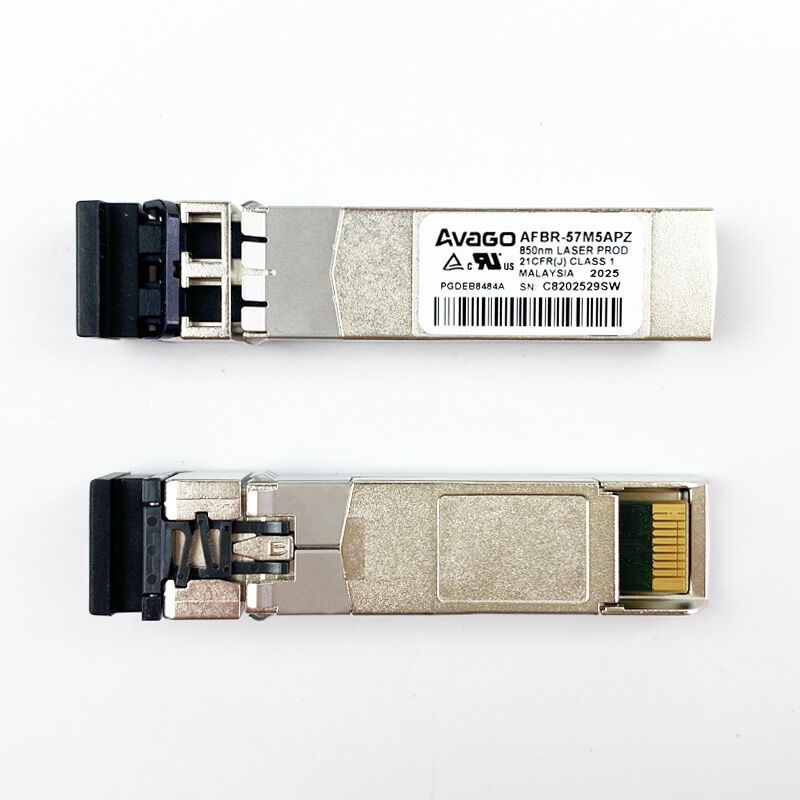

Includes 2 Avago AFBR-57M5APZ Transceivers

Avago’s AFBR-57M5APZ optical transceiver supports high-speed serial links over multimode optical fiber at signaling rates up to 2.125 Gb/s. Compliant with Small Form Pluggable (SFP) Multi Source Agreement (MSA mechanical and electrical specifications for LC Duplex transceivers, ANSI Fibre Channel FC-PI, FC-PI-2 and compliant with IEEE 802.3 for gigabit applications. The part is electrically interoperable with SFP conformant devices.

Applications
• Fibre channel systems
– Director class switches
– Fabric switches
– HBA cards
• Disk and tape drive arrays

Features

• Fully RoHS Compliant
• Diagnostic features per SFF-8472 “Diagnostic
Monitoring Interface for Optical Transceivers”
• Real time monitoring of:
– Transmitted optical power
– Received optical power
– Laser bias current
– Temperature
– Supply voltage
• Wide temperature and supply voltage operation
(-10°C to 85°C) (3.3 V ± 10%)
• Transceiver specifications per SFP (SFF-8074i) MultiSource Agree-ment and SFF-8472 (revision 9.3)
– 2.125 GBd Fibre Channel operation
for FC-PI 200-M5-SN-I and 200-M6-SN-I
– 1.0625 GBd Fibre Channel operation
for FC-PI 100-M5-SN-I and 100-M6-SN-I
– 1.25 GBd operation for IEEE 802.3 Gigabit Ethernet
 1000Base-SX
• Link lengths at 2.125 GBd:
– 300m with 50µm MMF, 150m with 62.5µm MMF
• Link lengths at 1.0625 GBd:
– 500m with 50µm MMF, 300 m with 62.5µm MMF
• Link lengths at 1.25 GBd:
– 2 to 550m with 50µm MMF, 2 to 275 m with
62.5µm MMF
• LC Duplex optical connector interface conforming to
ANSI TIA/EIA604-10 (FOCIS 10A)
• 850 nm Vertical Cavity Surface Emitting Laser (VCSEL)
source technology
• IEC 60825-1 Class 1/CDRH Class 1 laser eye safe

(AFBR-57M5APZ)
