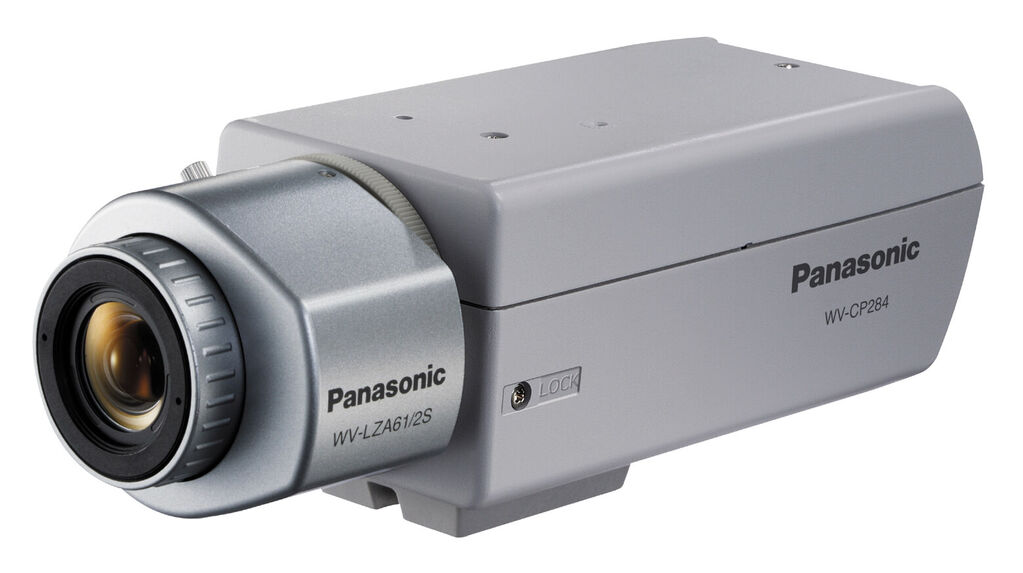

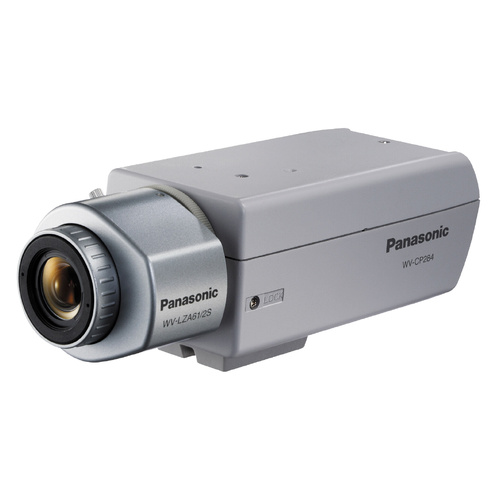

The stylish new WV-CP280 Series colour camera is equipped with a newly-developed DSP, providing improved image quality.

Utilizing the Adaptive Black Stretch technology, the DSP uses image processing to transform dark areas into natural, high contrast images in real time, while keeping crisp areas unchanged.

Horizontal resolution is 540 TV lines in colour mode. Minimum illumination intensity is 0.8 lux in colour mode with the F1.4 lens. This is due to the new DSP and the introduction of a new circuit. Signal-to-Noise ratio under low-light intensity has been improved. Furthermore, it is equipped with a Day/Night feature, allowing use in low-light situations*.

The camera is equipped with various features including Back Light Compensation (BLC), Automatic Light Control (ALC) and Electronic Light Control (ELC) for a wide-range of installation environments.

Three selectable synchronization modes include Internal, Line-locked and Multiplexed Vertical Drive (VD2) synchronization. The camera supports 220 ~ 240 V AC (WV-CP280) and 24 V AC/12 V DC (WV-CP284) power supplies.

With a host of new and improved features, the WV-CP280 Series is the ideal camera for offices, retail locations, restaurants and shopping malls.

* No IR filter shifting

(WV-CP284E-OB)

Image Sensor 1/3-type interline transfer CCD
Effective Pixels 752 (H) x 582 (V) pixels
Scanning Mode 2:1 interlace scan
Scanning Area 4.9 (H) x 3.7 (V) mm
Scanning Frequency Horizontal: 15.625 kHz, Vertical: 50 Hz
Scanning Line 625 lines
Horizontal Resolution 540 TV lines (Colour)
Minimum Illumination 0.6 lux (Colour) at F1.2, 0.4 lux (B/W) at F1.2
Signal-to-Noise Ratio 50 dB (Equivalent to AGC Off, weight On)
White Balance ATW
AGC/GAIN Always ON
Light Control ALC / ELC
Adaptive Black Stretch ON / OFF
BLC ON / OFF
Synchronization Internal (INT), Multiplexed Vertical Drive (VD2), Line-Lock (LL)
Black and White Mode ON / OFF (No IR filter shifting)
Lens Mount CS-mount
Video Output 1.0 V [p-p] / PAL composite 75 Ω / BNC Connector Multiplexed VD2 capable
Power Source and Power Consumption 24 V AC 50 Hz, 2.7 W
12 V DC, 220 mA
Ambient Operating Temperature –10 °C ~ +50 °C
Ambient Operating Humidity 90 % or less (no condensation)
Dimensions (W x H x D) 67 mm x 65 mm x 139.5 mm (without lens)
Weight (approx.) 350 g
SKU WV-CP284E-OB
Barcode # 5025232412372
Brand Panasonic
Brand Panasonic
Type Surveillance Camera
Model WV-CP284E
Shipping Cubic 0.017794000m3
