6,200 lumens Solid Shine laser projector designed for intensive usage and long lasting brightness in education, museums, exhibitions and digital signage applications.

Wide spectrum colour with up to 6,200 lm (center) brightness

With the next generation of the DLP™ technology, the RZ660 series delivers high resolution in detail and the dual laser modules outputting a brightness of up to 6,200 lm (center). Due to the quartet colour harmonizer, the energy loss of the light source is reduced and the robust and heat resistant phosphor wheel the of PT-RZ660 solid shine laser series produces scintillating images with unfailing reliability.

Outstanding white balance and colour reproduction

The quartet colour harmonizer wheel mechanism captures a wider colour space than comparable laser projectors, which allows white to be reproduced realistically on the screen. Unlike conventional projectors where it’s difficult to achieve an accurate white balance which casuses images to appear with a distracting greenish tint, Panasonic’s quartet colour harmonizer eliminates this negative impact by adding an additional yellow segment to the colour wheel to produce whites with unparalleled accuracy for natural and realistic picture quality.

Maintain image quaility for longer use

Thanks to the long lasting dual solid state laser modules, there are no lamps which needs to be replaced. The image colours and brightness degrades very gradually in consistent, linear fashion. As well as reducing maintenance hassle, out-of-the-box picture quality preserves longer.

Dependable 24/7 operation with failover protection

With the dual drive laser optical engine the laser diodes are grouped into two discrete modules. A failsafe redundancy circuit works to minimise the brightness- and colour uniformity loss if a laser diode fails. Together with the 20000 hours*1 maintenance-free projection period, the PT-RZ660 series is ideal for mission critical applications.

(PT-RZ660)

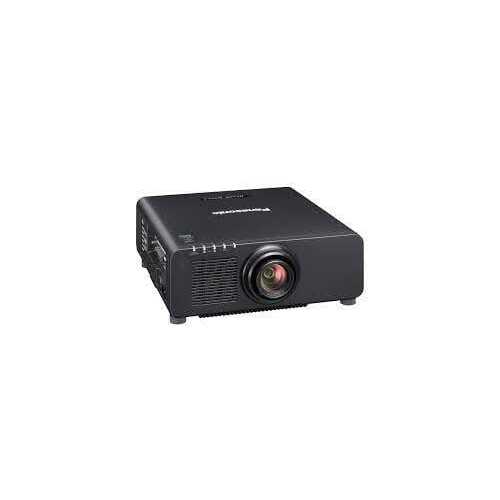

Panasonic PT-RZ660 WUXGA 6000 Lumens Digital Link Laser 1-Chip DLP Projector
Power supply 100–240 V AC, 10.4–5.0 A, 50/60 Hz
Power consumption *1
PT-RZ770/RW730 825 W (0.3 W with Standby Mode set to Eco, 3 W with Standby Mode set to Normal, 85 W with Quick Startup set to ON); 593 W (Normal Mode), 508 W (Eco Mode), 333–477 W (Long Life 1 Mode), 310–477 W (Long Life 2 Mode), 286–477 W (Long Life 3 Mode), 72 W (Shutter Mode)
PT-RZ660/RW620 700 W (0.2 W with Standby Mode set to Eco, 3 W with Standby Mode set to Normal, 85 W with Quick Startup set to ON); 499 W (Normal Mode), 428 W (Eco Mode), 287–402 W (Long Life 1 Mode), 262–402 W (Long Life 2 Mode), 238–402 W (Long Life 3 Mode), 69 W (Shutter Mode)
DLP™ chip
Panel size 17.0 mm (0.67˝) diagonal (16:10 aspect ratio)
Display method DLP™ chip x 1, DLP™ projection system
Pixels 2,304,000 (1920 x 1200) pixels
Lens Powered zoom (throw ratio 1.7–2.4:1), powered focus
F 1.7–1.9, f 25.6–35.7 mm
Light source Laser diodes (Class 1) (Class 3R for US models),
light source life *2 : 20,000 hours (Normal Mode) / 24,000 hours (Eco Mode). At this time, brightness will have decreased to approximately half its original level [Operating temperature: 30 °C (86 °F), altitude: 700 m (2,297 ft), dust density 0.15 mg/m 3 , Dynamic Contrast Mode: 3]
Screen size (diagonal) 1.27–15.24 m (50–600˝), 1.27–5.08 m (50–200˝) with ET-DLE055, 2.54–8.89 m (100–350˝) with ET-DLE030,
16:10 aspect ratio
Brightness PT-RZ770: 7,200 lm (Center) *3 / 7,000 lm *2
PT-RZ660: 6,200 lm (Center) *3 / 6,000 lm *2
Contrast *3 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
Resolution 1920 x 1200 pixels
Supported RGB signal XGA–WUXGA
Supported video signal NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i
Keystone correction range *4 Vertical: ±40 ° (±22 ° with ET-DLE085/DLE055, +5 ° with ET-DLE030), horizontal: ±15 ° (cannot be operated with ET-DLE030)
Keystone correction range with optional Upgrade Kit ET-UK20 *4 Vertical: ±45° (±40° with the ET-DLE150/ET-DLE250/supplied lens [DLE170] ), ±22° with the ET-DLE085/ET-DLE055), horizontal: ±40° (±15° with ET-DLE085/ET-DLE055), Up to a total of ±55 ° during simultaneous horizontal and vertical correction.
Installation Ceiling/floor, front /rear, free 360-degree installation
Cabinet materials
Molded plastic Molded plastic
Dimensions (W x H x D)
with supplied lens 498 x 200 *5 x 581 mm (19 19/32˝ x 7 7/8˝ *5 x 22 7/8˝) (with supplied lens [DLE170])
without lens 498 x 200 *5 x 538 mm (19 19/32˝ x 7 7/8˝ *5 x 21 3/16˝) (without lens)
Weight *6
with supplied lens PT-RZ770: Approx. 23.2 kg (51.1 lbs)
PT-RZ660: Approx. 23.1 kg (50.9 lbs)
without lens PT-RZ770: Approx. 22.4 kg (49.4 lbs)
PT-RZ660: Approx. 22.3 kg (49.2 lbs)
Operation noise *2 PT-RZ770: 36 dB
PT-RZ660: 35 dB
Operating environment Operating temperature: 0–45 °C (32–113 °F) *7 ,
operating humidity: 10–80 % (no condensation)
SKU PT-RZ660
Barcode # 665415564259
brand Panasonic
type Projector
model PT-RZ660
Resolution 1920 x 1080
Shipping Cubic 0.017794000m3
