Buy Panasonic AW-HE40HWE Full HD PTZ Camera 1080p HDMI LAN w/PSU

Tested to power on, display HDMI video signal. Includes AW-HE40HWE camera, compatible 12V power adapter. Does NOT include remote.

Full HD camera with integrated pan-tilt for lectures, weddings and a wide variety of applications

The AW-HE40 series of integrated full HD cameras performs in a wide variety of onsite shooting applications that require high-quality video, such as conferences, lecture capture and other events, thanks to its high-performance zoom, wide angle of view and outstanding color reproducibility.

In addition to IP video transmission, support for PoE+^*1 enables power to be supplied via a LAN cable^*2. The result is installation flexibility. It also supports HD-IP video output, output of video and audio via USB, and SD card recording.

*1: Abbreviation of Power over Ethernet Plus.
*2: The software for the AW-HE40 series may need to be updated depending on the existing software version.

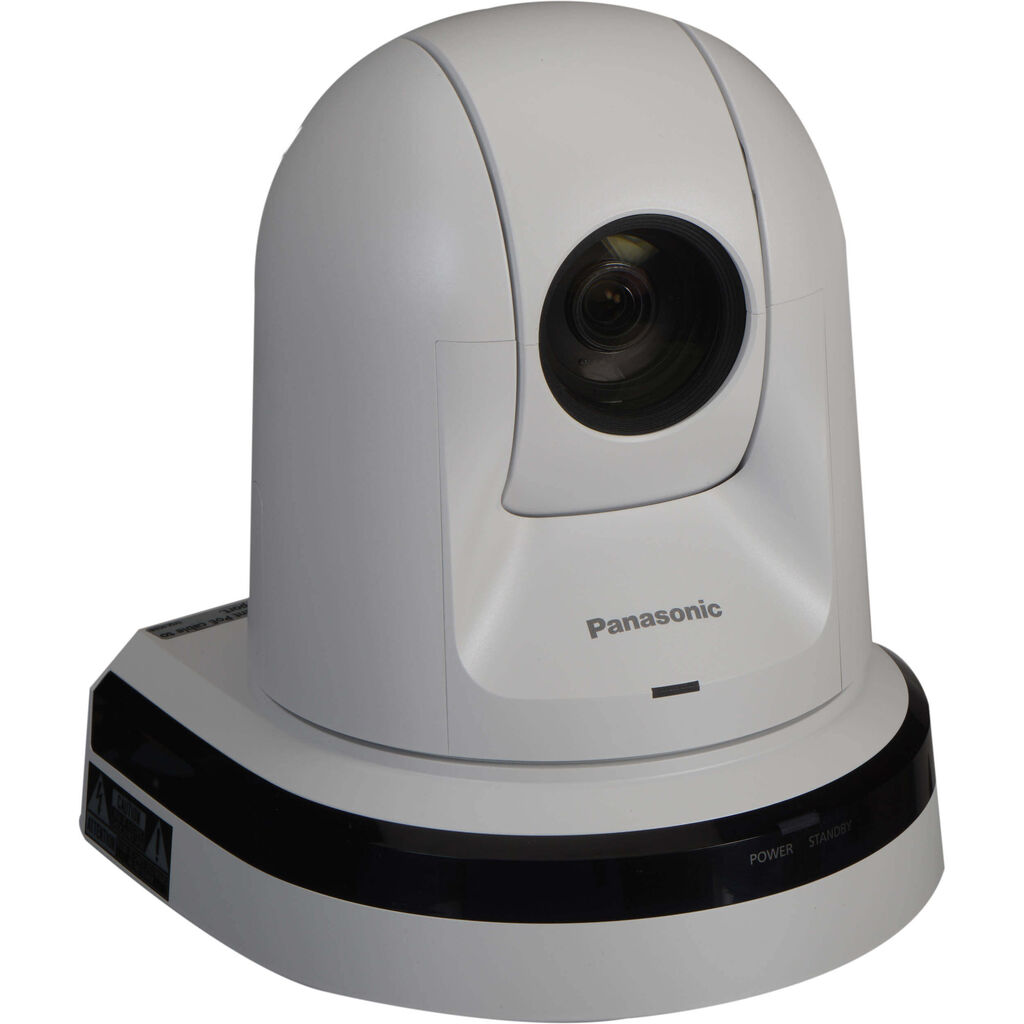

(AW-HE40HWE-R)

General
Power Requirements	DC 12 V (Supplied AC adaptor), DC 42 V to 57 V (PoE+ power supply)
Current Consumption	1.2 A (Supplied AC adaptor), 0.4 A (PoE+ power supply)
Ambient Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Allowable Humidity Ranges	20 % to 90 % (no condensation)
Storage Temperature	-20 °C to 50 °C (-4 °F to 122 °F)
Mass	Approx. 1.5 kg (3.30 lb)
Dimensions (W x H x D)	160 mm x 186 mm x 166 mm (6-5/16 inches x 7-41/128 inches x 6-17/32 inches) (excluding protrusions, direct ceiling mount bracket)
Finish	AW-HE40HW / AW-HE40SW / AW-HN40HW: Pearl white AW-HE40HK / AW-HE40SK / AW-HN40HK: Metallic black
Controller Supported*¹	AW-RP50, AW-RP120G, AK-HRP200G
Camera Unit
Imaging Sensors	1/2.3-type MOS
Lens	Optical 30x zoom, F1.6 to F4.7 [f=4.3 mm (11/64 inches) to 129 mm (5-5/64 inches); 35 mm (1-3/8 inches) equivalent: 31.6 mm (1-31/128 inches) to 962.0 mm (37-7/8 inches)]
Focus	Switching between auto and manual
Focus Distance	Entire zooming range: 1.2 m (3.94 ft) Wide end: 10 cm (0.33 ft)
Color Separation Optical System	On-chip color filter system
Minimum Illumination	59.94 Hz	0.7 lx (50 IRE, F1.6, 48 dB, 1/60 without accumulation) 0.35 lx (50 IRE, F1.6, 48 dB, 1/30 with accumulation [Frame Mix 6 dB])
Minimum Illumination	50 Hz	0.7 lx (50 IRE, F1.6, 48 dB, 1/50 without accumulation) 0.35 lx (50 IRE, F1.6, 48 dB, 1/25 with accumulation [Frame Mix 6 dB])
Horizontal Resolution	1000 TV lines Typ (Center area)
Gain Selection*²	Auto, 0 dB to 48 dB (3 dB steps)
Frame Mix*³	Auto, Off, 6 dB, 12 dB, 18 dB, 24 dB
Electronic Shutter Speed	During Full Auto	1/30 to 1/2000 (59.94 Hz) 1/25 to 1/2000 (50 Hz)
	During Auto	1/60 to 1/2000 (59.94 Hz) 1/50 to 1/2000 (50 Hz)
	During Manual	1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 (59.94 Hz) 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 (50 Hz)
Synchro Scan	59.94 Hz	59.94 Hz to 660.09 Hz (255 steps)
Synchro Scan	50 Hz	50.00 Hz to 570.12 Hz (255 steps)
Gamma	Off, Normal (Low, Mid, High), Cinema
White Balance	ATW, AWB A, AWB B, 3200K, 5600K, VAR (2400K to 9900K)
Chroma Amount Variability	±3 steps
Scene File	Full Auto, Manual1, Manual2, Manual3
Color Bars	FULL BAR
Synchronization System
Synchronization System	Internal synchronization
Input
Power	DC 12 V IN, PoE+ (IEEE802.3at standard)
MIC/LINE Input	Stereo mini-jack (ø3.5 mm) Input impedance: Approx. 2 kΩ (unbalanced) Mic input • Supported microphones: Stereo mic (plug-in power, on/off switching via menu) • Supplied voltage: 2.5 V ± 0.5 V • Mic input level: -60 dBV ± 3 dBV Line input • Input level: -10 dBV ± 3 dBV
Output
Video Output	AW-HE40H AW-HN40HW AW-HN40HK HDMI	HDMI connector • HDCP is not supported. • VIERA Link is not supported.
Video Output	AW-HE40S HD-SDI	Compliant with the SMPTE292M standards/75 (BNC x 1)

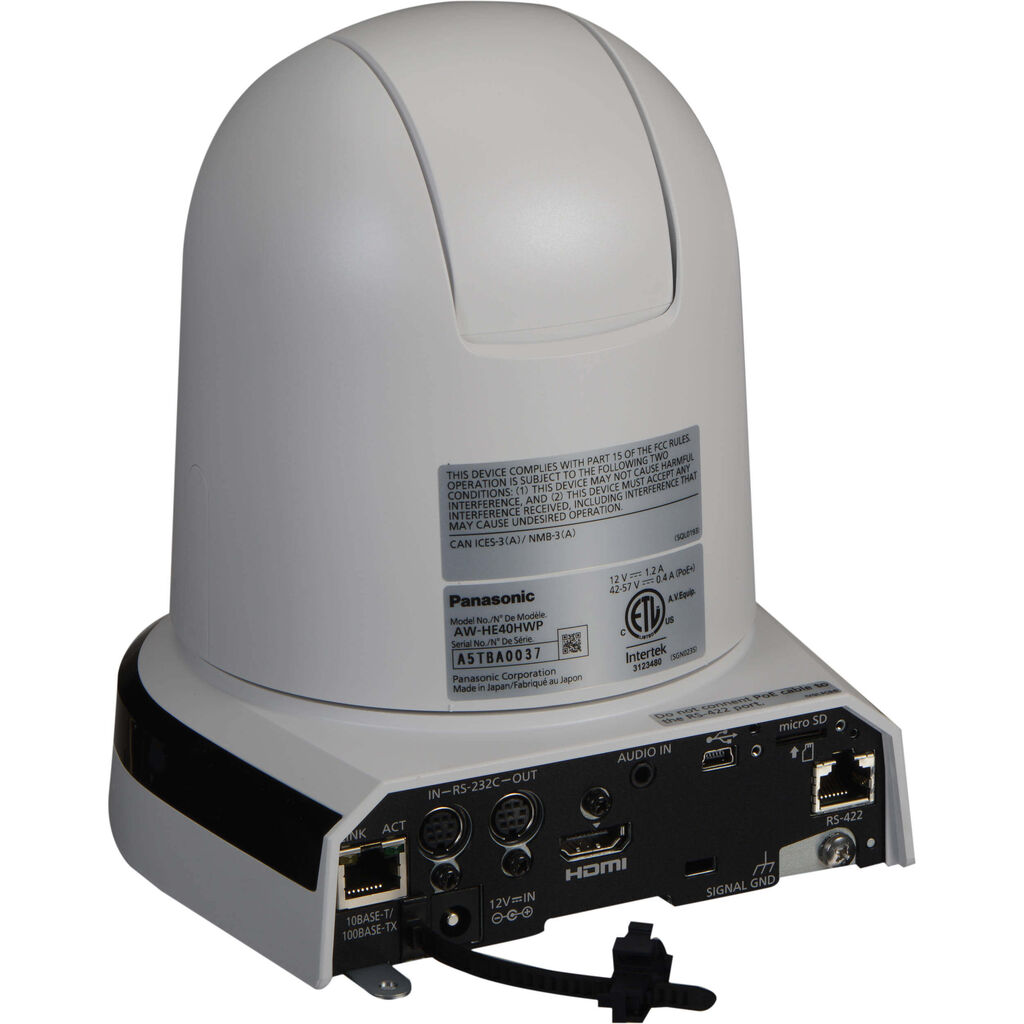

Input/Output
Input/Output Connector	LAN	LAN connector for IP control (RJ-45), PoE+ Equipped with straight/crossover cable auto detection function
	RS-232C	Mini DIN 8-pin (IN), Mini DIN 8-pin (OUT)
	RS-422	CONTROL IN RS422A (RJ-45)
	USB	Mini-B port (Used for maintenance)
	SD Card	microSD card slot (Used for maintenance)
USB Connection * This may vary depending on the operating environment.
Video Output	USB Video Class Ver1.0
Video Compression Format	Motion JPEG
Resolution	1920 x 1080, 1280 x 720, 640 x 360
Frame Rate	max 30 fps (System frequency 59.94 Hz), max 25 fps (System frequency 50 Hz)
Audio Output	USB Audio Class Ver1.0
Audio Compression Format	Linear PCM, 48 kHz, 16-bit, 2 channels
Supported Models	Devices standardly equipped with a USB 2.0 compatible port
Pan-tilt Head Unit
Installation Method	Stand-alone (Desktop) or suspended (Hanging)*⁴
Pan/tilt Operation Speed	Maximum speed during preset: 300°/s, Maximum speed during manual: 90°/s
Panning Range	±175°
Tilting Range*⁵	-30° to 90°*⁵
Quietness	During preset: NC40 or less During manual: NC35 or less
Camera/Pan-tilt Head Control	• When connecting through a PoE+ hub: LAN cable⁶(category 5e or above), max. 100 m (328 ft) • When a PoE+ hub is not used: LAN cable⁶(category 5 or above) max.100 m (328 ft)
	AW protocol connecting cable • LAN cable*⁶(category 5 or above, straight cable), max. 1000 m (3280 ft)
	Standard protocol connecting cable • Mini DIN 8-pin cable, male
SD Card Recording
SD Card Type	micro SDHC (4 GB to 32 GB), micro SDXC (64 GB to 128 GB), Speed class 10 or higher
System Frequency	59.94 Hz/50 Hz
Video Compression Format	MPEG-4 AVC/H.264 High Profile
Audio Compression Format	AAC-LC (48 kHz, 16 bit, 2 ch, 128 kbps)
Audio Output	USB Audio Class Ver1.0
SD Card Recording	MPEG-4 AVC file standard compliant (.MP4)
Recording Format	1920 x 1080/59.94p, 1920 x 1080/50p, 1920 x 1080/29.97p, 1920 x 1080/25p, 1280 x 720/59.94p, 1280 x 720/50p, 1280 x 720/29.97p, 1280 x 720/25p
Network
Resolution	JPEG	VGA (640 x 360), QVGA (320 x 180) max.30 fps 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 max.30 fps
Resolution	H.264	1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 max.60 fps
Supported Protocol	IPv4	TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, RTSPoverTCP, RTSPoverHTTP, SSL (TLS), MultiCast/UniCast
Supported Protocol	IPv6	TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCPv6, DNS, NTP, ICMPv6 (MLD), RTSPoverTCP, RTSPoverHTTP, SSL (TLS), MultiCast/UniCast
i-OS, Android Support	JPEG image display

*1:It may be necessary to upgrade the version of the controller so that the controller will support the unit.
*2:During Auto, 6 dB to 48 dB (6 dB steps) are available for AGC Max Gain setting.
*3:During Auto, 0 dB, 6 dB, 12 dB and 18dB are available for Auto F. Mix Max Gain setting.
*4:To ensure safety, the unit must be secured using the mount bracket supplied.
*5:Depending on the pan or tilt position, the camera may be reflected in the image.
*6:Use of an STP (shielded twisted pair) cable is recommended.

* NDI^® is a video connectivity technology and is registered as a trademark by Vizrt NDI AB in the United States and other countries.
* Depending on the time of purchase, an upgrade may be required.
