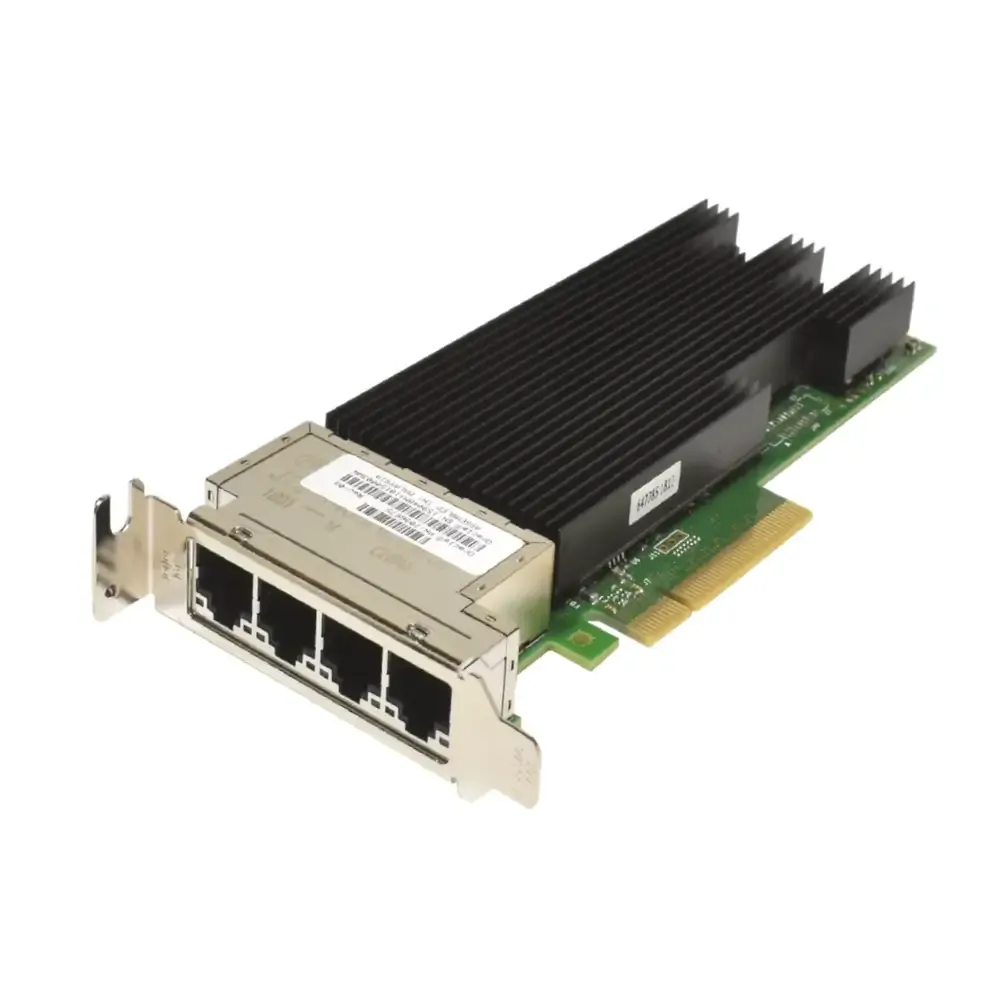

The Oracle H64848 (Part Number 7096675) is an enterprise-grade Quad Port 10GBase-T Network Adapter. It is designed to reduce the cost and complexity of deploying high-speed 10 Gigabit Ethernet infrastructure across Oracle servers and storage systems by utilizing standard twisted-pair copper cabling.

Core Features & Capabilities

High-Density Connectivity
: Combines four physical 10GbE ports onto a single adapter, dramatically decreasing per-port deployment costs compared to fiber configurations or older dual-port setups.

Advanced Virtualization:Supports SR-IOV (Single Root I/O Virtualization) with 16 physical functions and up to 128 virtual functions (32 per port) to optimize virtual machine performance.  Network virtualization overlay support including VXLAN, NVGRE, and Geneve for software-defined data centers.

I/O Convergence: Supports lossless iSCSI, allowing unified provisioning of network and storage traffic over a single adapter interface.

Performance Offloads: Includes hardware-assisted checksum offloads (IP, TCP, UDP), Large Send Offload (LSO), Receive Side Scaling (RSS), and jumbo frame support up to 9.6 KB.

(Oracle7096675-R)

Product Type Ethernet Adapter (RJ45)
Brand Oracle
Model H64848
Part Number 7096675
OEM Model Intel
Chipset Intel X710
REV 03
Bracket Profile Low Height
Number of Ports 4 x RJ45
Transceiver Modules N/A
Data Transfer Rate 10Gbps
Connector Type RJ45
Thermal Solution Passive (fanless heatsink)
Interface Type PCIe x8 3.0
Compatibility Rackmount Servers
Notes
SKU Oracle7096675-R
Barcode # 615678907775
Brand Oracle
Brand Oracle
Type Server Adapter
MPN 7096675
Model H64848
Manufacturer Part Number 7096675
Shipping Cubic 0.003744000m3
