Moxa’s ioLogik E2200 Series Ethernet Remote I/O is a PC-based data acquisition and control device that uses proactive, event-based reporting to control I/O devices and features the Click&Go programming interface. Unlike traditional PLCs, which are passive and must poll for data, Moxa’s ioLogik E2200 Series will, when paired with our MX-AOPC UA Server, communicate with SCADA systems using active messaging that is pushed to the server only when state changes or configured events occur. Additionally, the ioLogik E2200 features SNMP for communications and control using an NMS (Network Management System), allowing IT professionals to configure the device to push I/O status reports according to configured specifications. This report-by-exception approach, which is new to PC-based monitoring, requires far less bandwidth than traditional polling methods.

PC-Free Alarm and Control Intelligence

This device supports simple yet powerful Click&Go™ technology to configure event-driven reports and alarms delivered over email, TCP/UDP, or SNMP traps, giving you a powerful and effective tool for delivering timestamped status updates in real time.

With built-in Click&Go™ intelligence, this device can be configured for simple outputs paired up with simple input triggers without the need for a PC controller. This allows it to be configured to automatically report I/O events according to conditions specified by the user.

SNMP for Ethernet Device Management

By using SNMP, IT engineers can configure the device to deliver alarms (traps) for specific I/O events, or use it to read or write directly to the I/O registers. For the strongest security, the device features SNMPv3, with authentication and encryption. With Moxa’s SNMP-capable I/O, even IT professionals can easily integrate industrial sensors and servos over an Ethernet backbone, and with its strong network management tools, it is ideal for a wide variety of industrial applications, including environmental monitoring, telecommunications, power production and delivery, and transportation.

Push Technology for Events and Alarms

When used with MX-AOPC UA Server, devices can use active push communications when communicating changes in state and/or events to a SCADA system. Unlike a polling system, when using a push architecture for communications with a SCADA system, messages will only be delivered when changes in state or configured events occur, resulting in higher accuracy and lower amounts of data that need to be transferred.

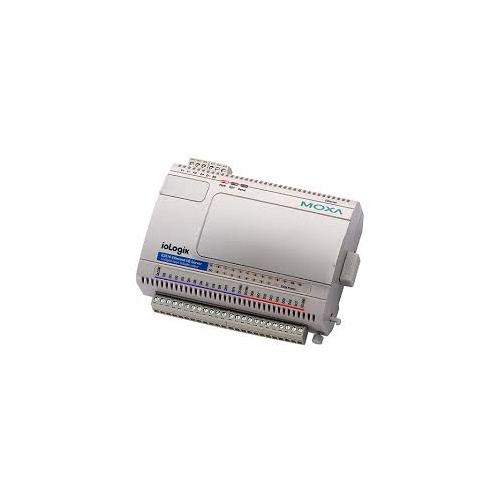

(ioLogik-E2210-OB)

Control Logic

  • Language

    • Click&Go
Input/Output Interface

  • Digital Input Channels

    • 12

  • Digital Output Channels

    • 8

  • Buttons

    • Reset button

  • Rotary Switch

    • 0 to 9

  • Isolation

    • 3k VDC or 2k Vrms
Digital Inputs

  • Connector

    • Screw-fastened Euroblock terminal

  • Sensor Type

    • Dry contact
      Wet contact (NPN)

  • I/O Mode

    • DI or event counter

  • Dry Contact

    • On: short to GND
      Off: open

  • Wet Contact (DI to GND)

    • On: 0 to 3 VDC
      Off: 10 to 30 VDC

  • Counter Frequency

    • 900 Hz

  • Digital Filtering Time Interval

    • Software configurable

  • Points per COM

    • 12 channels
Digital Outputs

  • Connector

    • Screw-fastened Euroblock terminal

  • I/O Type

    • Sink

  • I/O Mode

    • DO or pulse output

  • Current Rating

    • 200 mA per channel

  • Pulse Output Frequency

    • 1 kHz

  • Over-Current Protection

    • 0.65 A per channel @ 25°C

  • Over-Temperature Shutdown

    • 175°C (min.)

  • Over-Voltage Protection

    • 45 VDC (typical)
LED Interface

  • LED Indicators

    • PWR, RDY, Serial, I/O Status
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Configuration Options

    • Windows Utility (ioAdmin), Web Console (HTTP)

  • Industrial Protocols

    • Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC (Active Tag), MXIO Library, CGI commands

  • Management

    • BOOTP, IPv4, SMTP, DHCP Client, HTTP, TCP/IP

  • MIB

    • Device Settings MIB

  • Time Management

    • SNTP
Security Functions

  • Authentication

    • Local database

  • Encryption

    • HMAC

  • Security Protocols

    • SNMPv3
Modbus TCP

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16

  • Mode

    • Server (Slave)
Serial Interface

  • Connector

    • Terminal block

  • Serial Standards

    • RS-485

  • No. of Ports

    • 1

  • Baudrate

    • 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps

  • Parity

    • None

  • Data Bits

    • 8

  • Stop Bits

    • 1

  • Flow Control

    • None
Serial Signals

  • RS-485-2w

    • Data+, Data-, GND
Serial Software Features

  • Industrial Protocols

    • Modbus RTU Master
Platform

  • Real-time Clock (RTC)

    • Real-time clock with battery backup
Power Parameters

  • Power Connector

    • Screw-fastened Euroblock terminal

  • No. of Power Inputs

    • 1

  • Input Voltage

    • 12 to 36 VDC

  • Power Consumption

    • 203 mA @ 24 VDC
Physical Characteristics

  • Dimensions

    • 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)

  • Weight

    • 250 g (0.55 lb)

  • Installation

    • DIN-rail mounting, Wall mounting

  • Wiring

    • I/O cable, 16 to 26 AWG
      Power cable, 16 to 26 AWG

  • Housing

    • Plastic
Environmental Limits

  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Altitude

    • 2000 m
Standards and Certifications

  • Safety

    • UL 508

  • EMC

    • EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6

  • Freefall

    • IEC 60068-2-32
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 213,673 hrs

  • Standards

    • Telcordia SR332
SKU ioLogik-E2210-OB
Barcode # 615678555013
Brand MOXA
Brand MOXA
Type Ethernet Remote I/O
Model ioLogik E2210
Shipping Cubic 0.017794000m3
