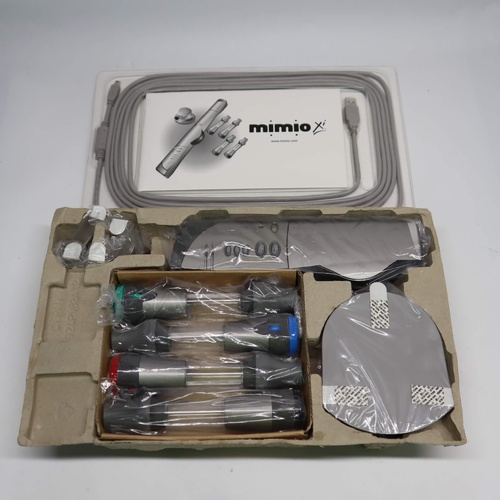

mimio Interactive + Capture combines the features of mimio Interactive and the mimio Capture kit to provide a complete Interactive Whiteboard and note capture system.

Turn any whiteboard into an interactive whiteboard
When used with a multimedia projector, you can use one of the mimio stylus pens like a cordless mouse to control (click, right click, drag and drop) computer applications and documents directly from the whiteboard.

  • Control PowerPoint slides, Word documents, Excel spreadsheets
  • Browse educational websites on the Internet
  • Navigate interactive instructional CDs
  • Annotate, mark-up, and edit slides or screens directly at the board

Perfect for presentations, training or instructional sessions and front-of-class teaching. Enables students to be more interactive and engaged.

Capture whiteboard notes
With Expo™ dry-erase markers inserted into the mimio stylus pens, everything that you write or draw on the whiteboard is digitally recorded - in color and real time - in a highly portable and versatile digital data format.

  • Print board notes - in color with perfect resolution
  • Email recorded Ink files
  • Post the board notes as HTML files on websites
  • Copy or drop any mimio whiteboard notes into other applications
  • Link directly to NetMeeting or 3rd Party conferencing solutions to share your whiteboard with remote locations

(mimioXi-OB)

Computer Interface USB (USB 2.0 compliant)
USB Cable – “mini-B” 5 pin male cable to female receptacle on mimio device / standard USB A connection to host PC
Data Transfer Rate - USB 64 kbps downloading Ink / 4.2 kbps under normal Ink capture or Interactive mouse use
Onboard Data Storage
(stand-alone mode)
½ MB Flash memory stores 20 – 40 full boards of notes (depending on density of writing)
Automatically downloaded to computer when connected by USB cable or wireless upgrade kit.
Power options
(default/priority order)
-USB connection to the computer
-4 x AA batteries (40+ hours active use)
-Optional AC adapter (US 110v or Int’l 100-240v)
Power Consumption Connected to computer via USB – 0.5 Watts
Stand-alone with AC Adapter 110V - 0.75 Watts
Stand-alone with AC Adapter 220V – 0.9 Watts
Capture Bar Weight 1.1 lbs./0.5 kg with batteries,
0.8 lbs./0.37 kg without batteries.
Complete System Weight 2.6 lbs./1.2 kg with styli, eraser, cable, & batteries
.3 lbs. mimio Mouse
Capture Bar Dimensions Fully Open = 18.1 in. L x 2.8 in. W x 1.1 in. H • 46 cm L x 7.0 cm W x 2.8 cm H
Folded = 9.4 in. L x 2.8 in. W x 2.2 in. H • 24 cm L x 7.0 cm W x 5.7 cm H
Whiteboard Active Area (per device) Whiteboard mounting: 4-ft. x 8-ft. for Ink Capture • 2.4 m x 1.2 m (landscape or portrait orientation)
Interactive mode with projector supports up to 107” standard aspect ratio diagonal projection display and 107” diagonal in wide screen mode. Capture bar can be mouted anywhere on periphery of projection surface
Signals Ultrasound at 40 KHz (frequency) + Infrared at 880 nanometers/sec (wavelength)
Resolution 100 dots per inch
Signal tracking frequency 87 times per second.
4,800 x 9,600 line effective resolution
SKU mimioXi-OB
Barcode # 691134700555
Brand Virtual Ink
Brand Virtual Ink
Type Digital Whiteboard Recorder
Model mimioXi
Shipping Cubic 0.017794000m3
