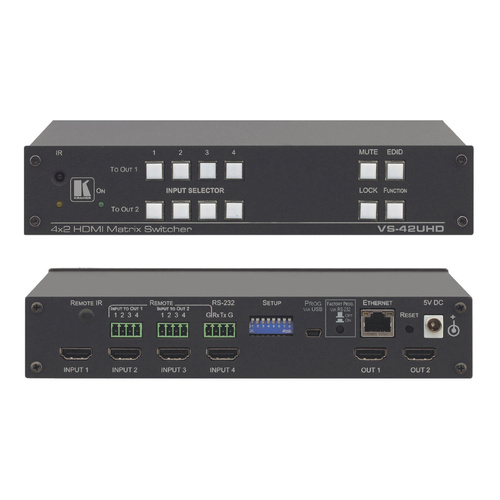

VS−42UHD is a high−quality, 4x2 matrix switcher for 4K@60Hz (4:2:0) HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously.

Features

  • Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
  • Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
  • HDCP Compliant
  • True Video Clock Detection.
  • Automatic Switching Modes - Last connected and priority switching.
  • HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS−HD®, and 7.1 PCM.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • Programmable Step-in Functionality - When used with compatible step−in devices, such as the SID−X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
  • Non-Volatile EDID Storage.
  • Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
  • Static or Dynamic DHCP IP Addressing.
  • Embedded Web Pages - Provide remote configuration and operation.
  • Lock Button - Prevents tampering with the front panel buttons.
  • Kramer Protocol 3000.
  • Versatile Control Options - RS−232, Ethernet, infrared remote control, optional remote IR receiver.

(KramerVS-42UHD-R)

INPUTS 4 HDMI connectors
OUTPUTS 2 HDMI connectors
PORTS 1 Ethernet on an RJ−45 connector; 1 IR on a 3.5mm mini jack; 12 remote selection contact−closure switches on 13 terminal block pins; 1 serial port on a 3−pin terminal block; 1 program port on a mini USB
BANDWIDTH Up to 8.91Gbps data rate (2.97Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD HDMI and HDCP
RESOLUTION Up to UXGA; 4K x 2K
SUPPORTED BAUD RATES 9600, 115200bps
SUPPORTED WEB BROWSERS The following operating systems and Web browsers are supported:
Windows 7: Google Chrome v25, FireFox v15, Opera v12, Microsoft Internet Explorer v9;
Windows XP: Google Chrome v25, FireFox v15;
Apple Mac: Google Chrome v25, FireFox v20, Opera v12.14, Safari v6.
POWER CONSUMPTION 5V DC, 880mA
CONTROLS Front panel buttons, infrared remote control transmitter, RS−232, Ethernet, remote input selection switches
OPERATING TEMPERATURE 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE −40° to +70°C (−40° to 158°F)
HUMIDITY 10% to 90%, RHL non−condensing
PRODUCT DIMENSIONS 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT 0.9kg (2.1lbs) approx



SKU KramerVS-42UHD-R
Barcode # 615678547469
Brand Kramer
Brand Kramer
Type HDMI Matrix Switcher
Model VS-42UHD
Shipping Cubic 0.017794000m3
