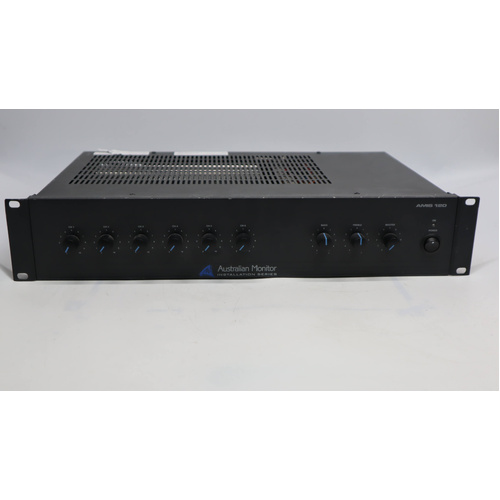

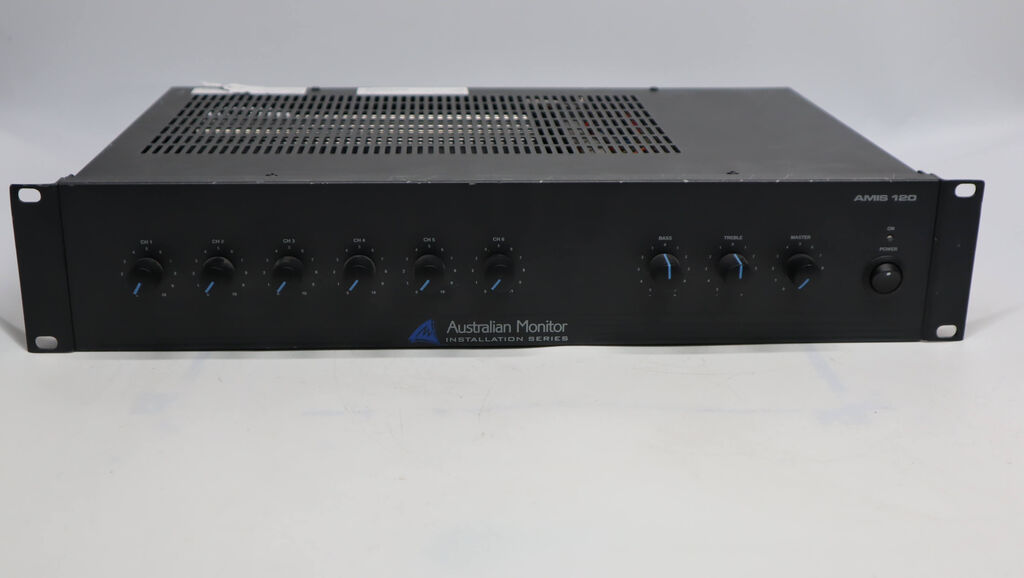

The AMIS120 has been the most successful and reliable amplifier in the Australian Monitor Installation Series for over 6 years. We have now made our most popular amplifiers even more contractor friendly with the addition of two extra balanced XLR mic/dual RCA line inputs. The AMIS120 still boasts the same reliability and an excellent feature set, including vox muting on channels 1 and 2 (defeatable), Bell, Pre Announce, Evac and Alert tones on board, Vox triggered output relay, VCA master level control, 15 VDC phantom power and mains or 24DVC operation. Now with more inputs available they offer even greater flexibility for commercial audio installations.

  • 6 balanced mic/dual RCA line inputs
  • 2 RU
  • Vox muting on channels 1 and 2 (defeatable)
  • Bell, Pre Announce, Evac and Alert tones on board
  • Vox triggered output relay
  • VCA master level control
  • 15 VDC phantom power
  • Mains or 24DVC operation.
  • 100 volt, 70 volt 4 or 8 ohm operation

(AM-AMIS120-BGrade)

POWER OUTPUT (0.5%THD, 1KHZ) 120W
S/N RATIO > 76dBr
POWER BANDWIDTH (-3DB +1DB) 60Hz-15kHz
OUTPUT REGULATION 90%
SIZE (W X H X D) 482 x 88 x 313.5mm
NET WEIGHT 11.0kg
THD (1KHz, -1dB) < 0.5%
MIC INPUT SENSITIVITY 1mV
IMPEDANCE 1k3 ohm
HEADROOM 136mV (42dB)
AUX INPUT SENSITIVITY 50mV
IMPEDANCE >200kohm
HEADROOM > 15V (>40dB)
TONE CONTROL BASS @ 100HZ +/- 12 dB
TREBLE @ 10KHZ +/- 9 dB
LINE OUT SENSITIVITY 2V @ 1kohm
OUTPUT IMPEDANCE 100ohm
TAPE SENSITIVITY 300mV @ 10kohm
OUTPUT IMPEDANCE 100ohm



SKU AM-AMIS120-BGrade
Barcode # 615678813151
Brand Australian Monitor
Brand Australian Monitor
Type Mixer Amplifier
Model AMIS120
Shipping Cubic 0.013276208m3
