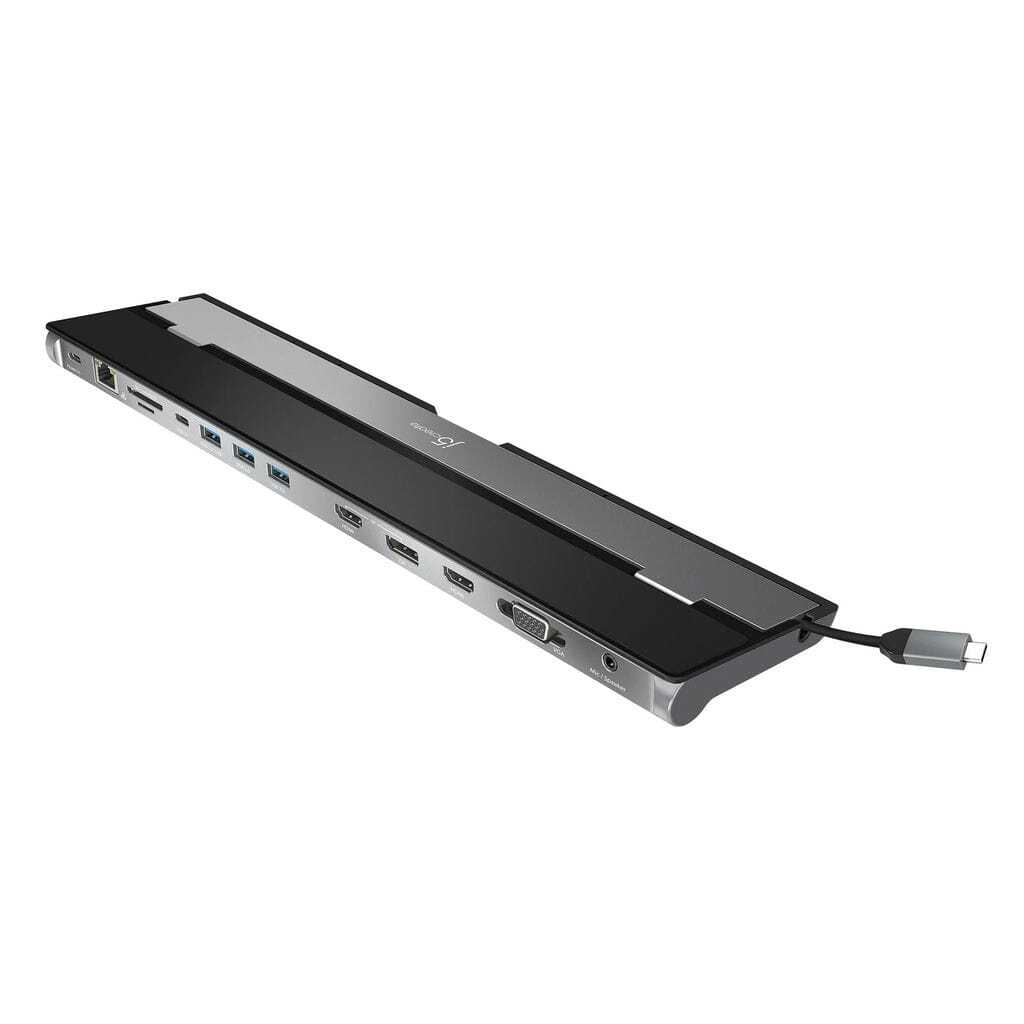

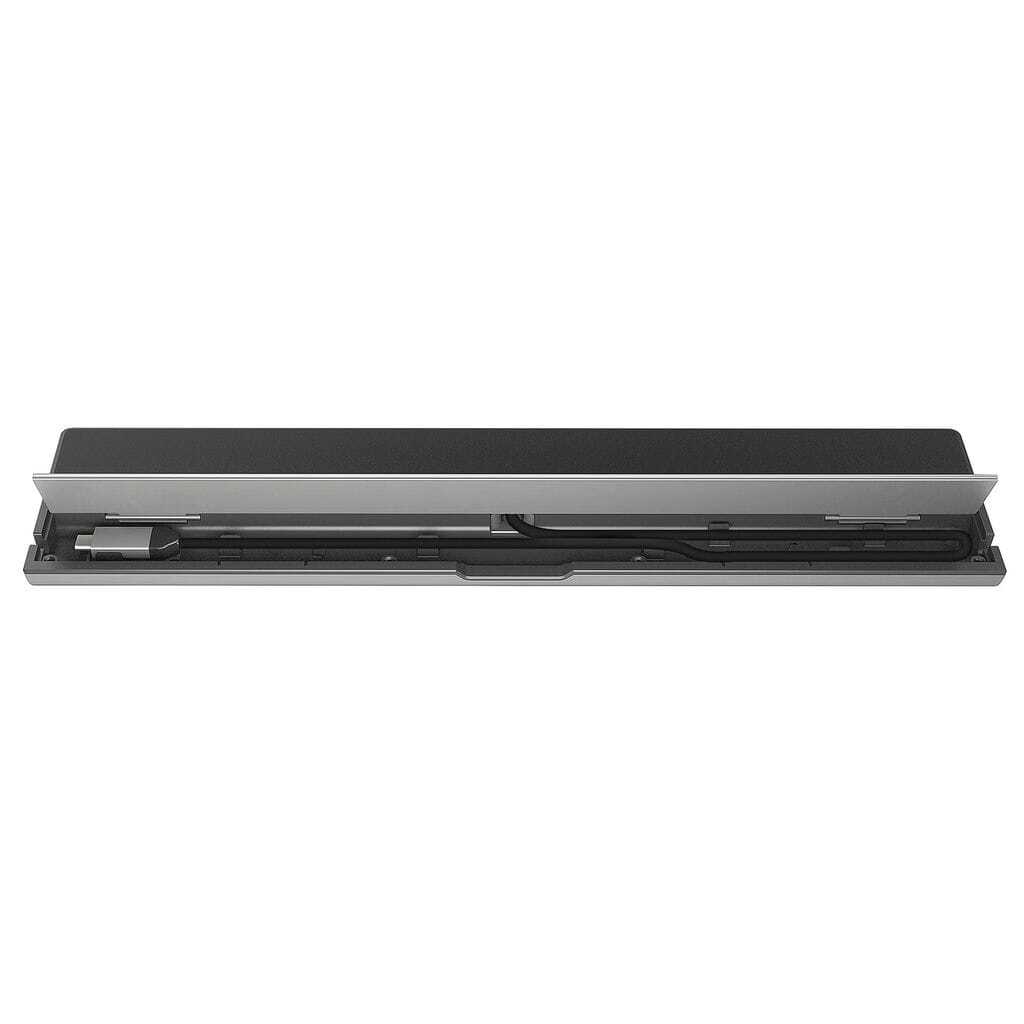

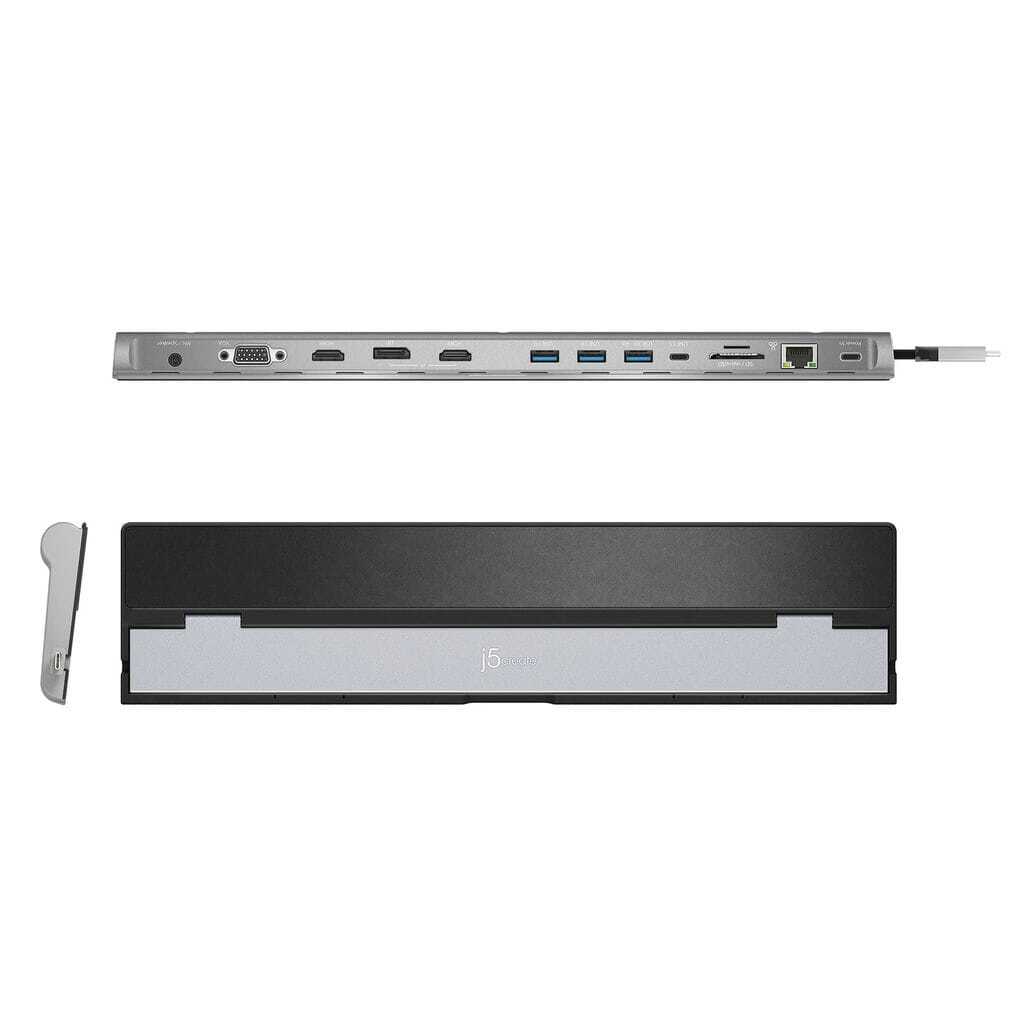

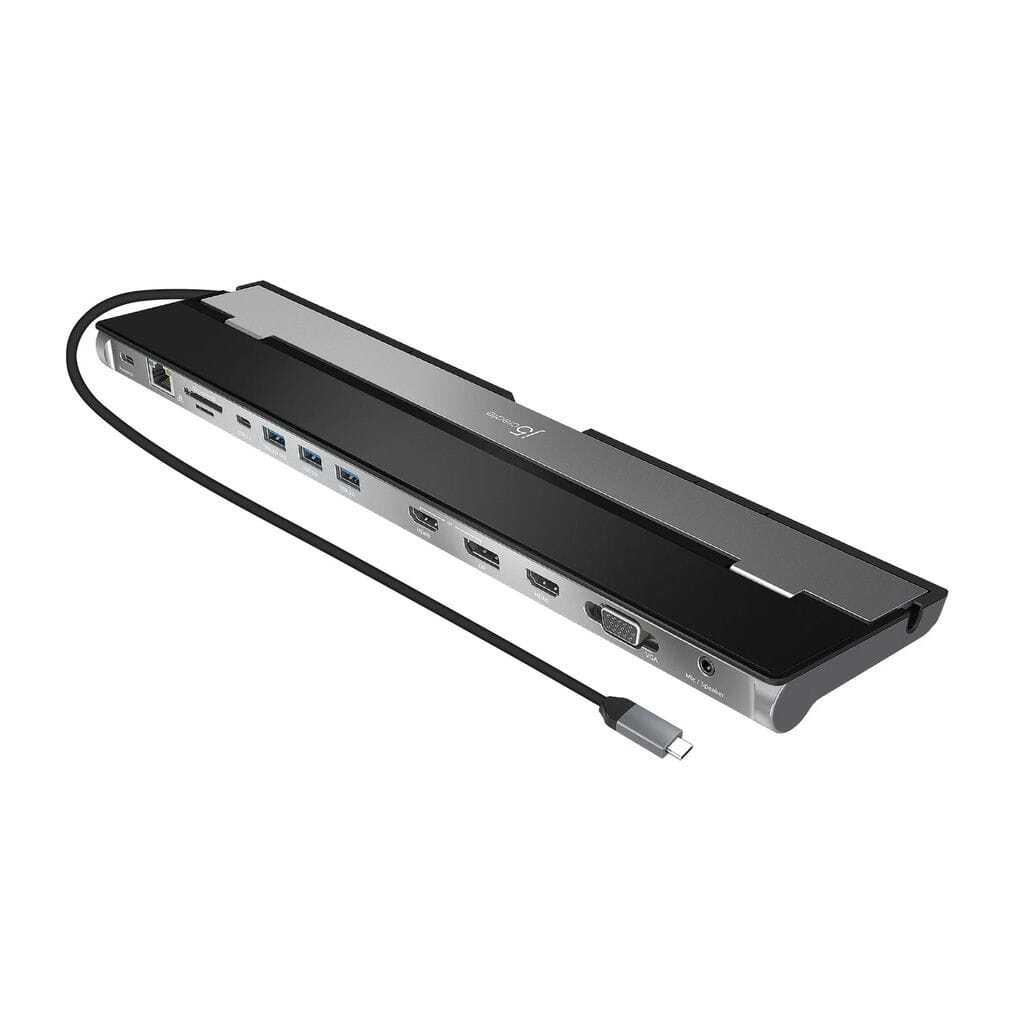

The USB-C Triple Monitor Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI, VGA and DisplayPort or HDMI. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C cord, it keeps in mind the location of the USB-C port on your device, ensuring an easy connection.

These multi-adapters allow you to add an additional USB 3.1/SD/microSD computer peripheral, HDMI/DisplayPort/VGA monitor and Gigabit Ethernet through your USB port. One of the USB Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.

Features:

  • • USB-C™ power delivery 100W pass-through
  • • USB-C™ downstream port Gen 1 5G x1;Power delivery adapter in port x1
  • • USB™ Type-A downstream port Gen 1 5G x3
  • • DisplayPort™ Alt mode supported
  • • DisplayPort™/HDMI™ output 4K @ 30 Hz
  • • Dual output through USB graphic HDMI with a resolution of 4K @ 30Hz and VGA with the resolution of 1920 x 1080
  • • RJ45 Gigabit Ethernet
  • • SD™/microSD™ card slots allow for external memory access
  • • Combo audio jack mic/speaker
  • • Cable length 1.5 ft/45 cm

(JCD543-R)

Interface

Host Interface

USB-C male connector with cable

Video Interface

HDMI female connector x 2

DisplayPort female connector x 1

VGA female connector x 1

USB-C™ Port

USB-C™ downstream port female connector x 1

USB-C™ power in port female connector x1

Ethernet Port

RJ45 female connector (Gigabit Ethernet) x 1

USB™ Port

USB™ Type-A 3.1 5G female connector x 3

Card Slots

SD™ 3.0 x 1 Slot

microSD™ 3.0 x 1 Slot

Combo Audio Jack

Microphone and speaker

Power

Power Mode

Bus-powered or self-powered

Functions

DisplayPort™ Alt Mode

Display resolution: 4K @ 30 Hz

HDMI™

Display resolution: 4K @ 30 Hz

VGA

Display resolution: 1920 x 1080 @ 60 Hz

USB-C™

Power delivery 3.0 x 1

USB-C™ 3.1 port x 1

USB™

USB™ Type-A 3.1 port x 3 (USB™ 3.1 Gen 1/5 Gbps)

BC 1.2 port x 1

Ethernet

Transfer Rate: 1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex)

IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x

Modes:

  • • Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet™ or Microsoft® wakeup frame
  • • Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
Physical Specifications

Dimensions

Main body:

3.24 (W) x 0.92 (H) x 13.78 (D) in.

82.5 (W) x 23.4 (H) x 350 (D) mm

USB-C™ cable length: 1.5 ft/450 mm

Weight

Main body:

Approximately: 0.66 lbs./300g

Environmental

Storage Temperature

-10 – 65°C

Storage Humidity

< 85% non-condensing

Operation Temperature

0 – 40°C

Operation Humidity

< 85% non-condensing

SKU JCD543-R
Barcode # 659359336348
Brand j5create
Brand j5create
Type Docking Station
Model JCD543
Shipping Cubic 0.000125000m3
